Door
Front door - removal and refitting
Fully open the door, push out the finger holding the check
strap to the front pillar and disconnect the check strap.
Hold the door open and using impact screwdriver 2 (Fig.8-
12), undo screws 1 securing the door hinges to the pillar.
Withdraw the door.
Refitting is the reversal of removal. Prior to finally tighten
screws 1, adequately line up the door with the aperture in the
body.
Front door - dismantling and reassembly
Dismantle the door when you have to repair the door or
renew its units and mechanisms.
Remove upper screw plastic clip 1 (Fig.8-13), undo the
screws that secure the armrest door pull and remove the armrest
door pull.
Prise out surround 20 (Fig.8-14), trim 1 and remove window
lifter handle 2. Using a screwdriver, remove the trim of the inner
door lock handle.
Remove the door trim overcoming the resistance of the
spring-type plastic retaining clips (arrowed in Fig.8-13).
177

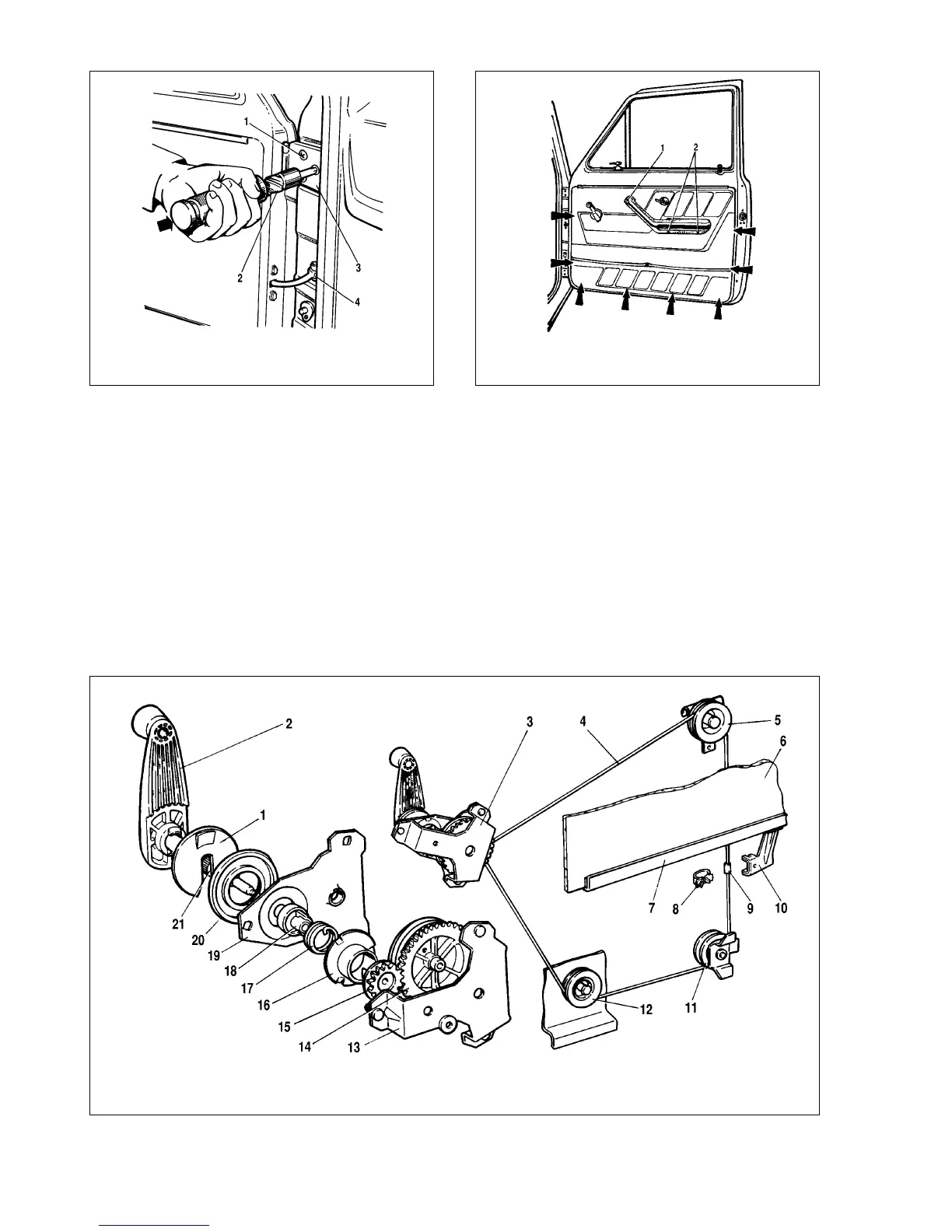

Fig.8-12. Removing the front door:
1 - hinge screw; 2 - impact screwdriver; 3 - hinge; 4 - check strap.
Arrowed is the direction to hit the impact screwdriver
Fig.8-13. Front door inner view:
1 - top armrest screw clip; 2 - bottom armrest securing screws
Arrowed is the location for door trim securing clips
Fig. 8-14. Sliding glass actuation:
1 - escutcheon; 2 - window lifter handle; 3 - window lifter mechanism; 4 - cable; 5 - top roller; 6 - sliding glass; 7 - sliding glass holder; 8 - cable retainer; 9 - cable sleeve;
10 - glass holder bracket; 11 - bottom roller; 12 - tensioner; 13 - window lifter housing; 14 - barrel and driven gear; 15 - pinion; 16 - support; 17 - brake spring; 18 - spring
brake drive link; 19 - housing cover; 20 - surround; 21 - shaft
