194

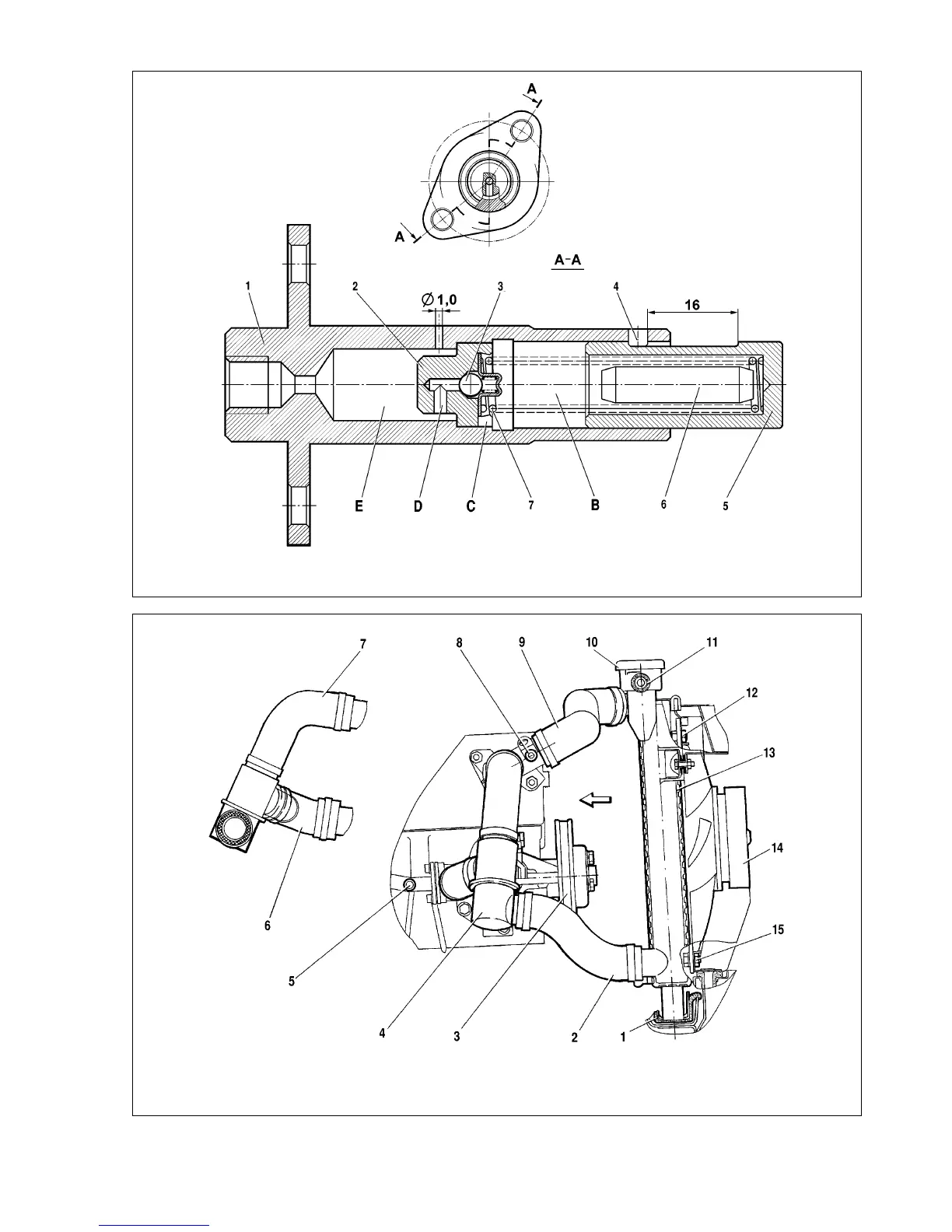

Fig.9-12. Hydraulic chain tensioner:
1 - tensioner housing; 2 - valve unit; 3 - ball, non-return valve; 4 - stop pin; 5 - plunger; 6 - volume restrictor; 7 - spring;
Ç - working cavity; ë - locating slot; Ñ - hole; Ö - reserve cavity
Fig.9-13. Cooling system:
1 - radiator pad; 2 - radiator return hose; 3 - water pump pulley; 4 - thermostat; 5 - drain pipe from throttle housing; 6 - coolant delivery hose to pump; 7 - transfer hose, ther-
mostat; 8 - coolant delivery pipe for part throttle channel preheating; 9 - radiator delivery hose; 10 - radiator cap; 11 - hose between radiator and expansion tank; 12 - top
fan cowl securing nut; 13 - radiator; 14 - electric fan; 15 - bottom fan cowl securing nut
