20

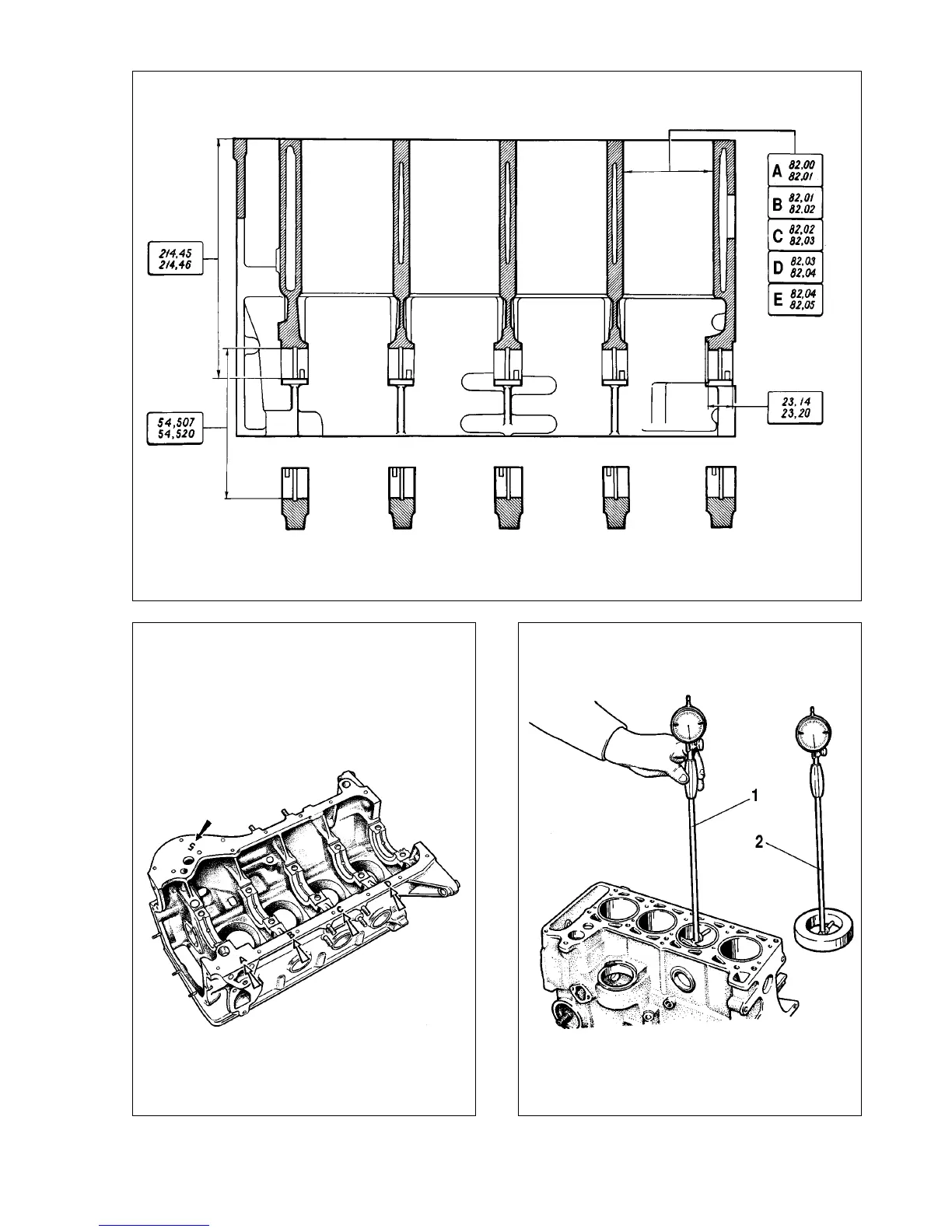

Fig.2-26. Cylinder size class engraved on the cylinder block
Fig.2-27. Measuring the cylinder bore with the inside dial gauge:
1 - inside dial gauge; 2 - setting to zero against reference gauge
Fig.2-25. Basic sizes of the cylinder block
