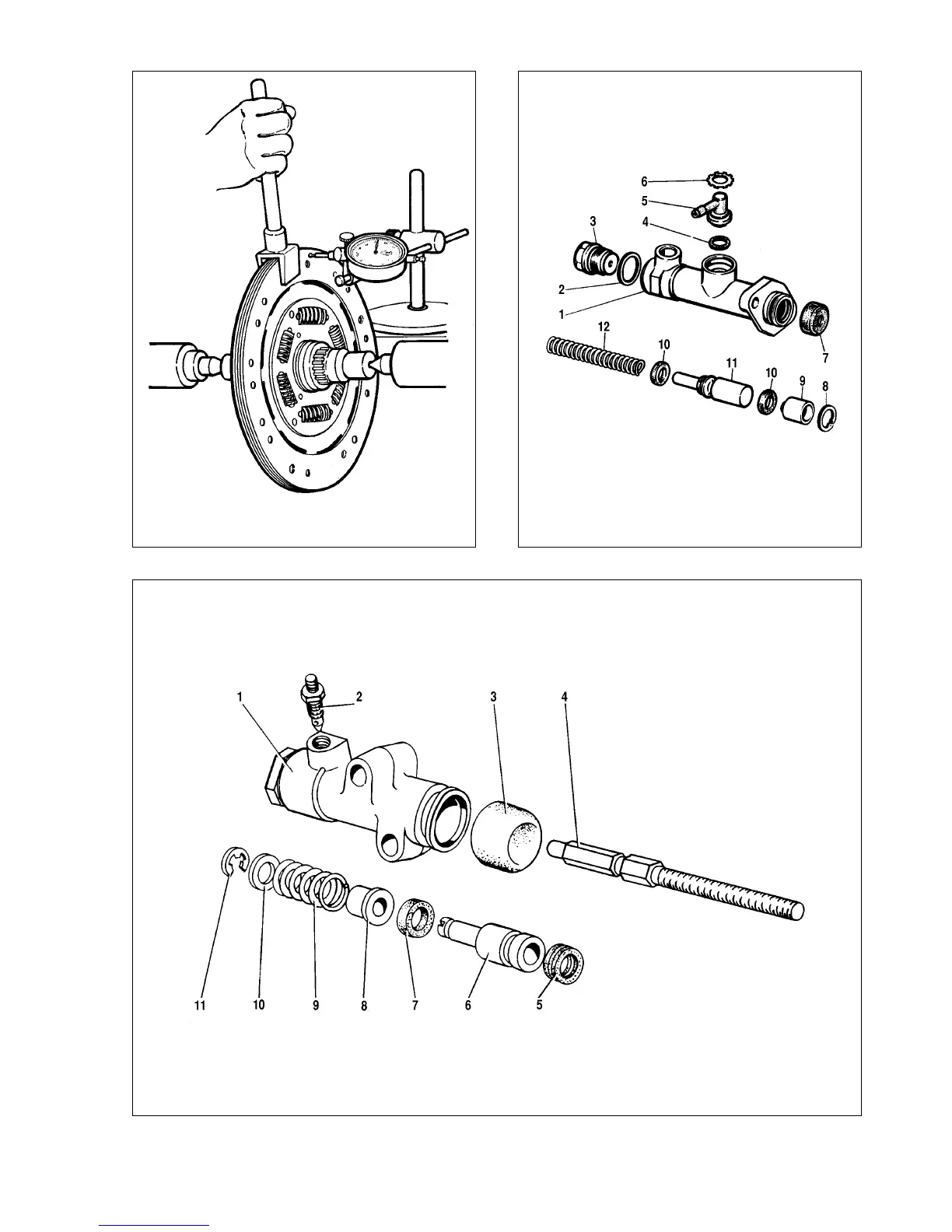

Fig. 3-8. Master cylinder components:
1 - body; 2 - sealing; 3 - plug; 4 - gasket; 5 - union; 6 - retaining washer;7 - cap;
8 - circlip; 9 - pushrod piston; 10 - sealing ring; 11 - master cylinder piston;
12 - spring
Fig. 3-7. Straightening the clutch disc
Fig. 3-9. Slave cylinder components:
1 - body; 2 - bleeder; 3 - cap; 4 - pushrod; 5 - sealing ring; 6 - piston; 7 - sealing ring; 8 - sleeve; 9 - spring; 10 - disc; 11 - lock ring
