68

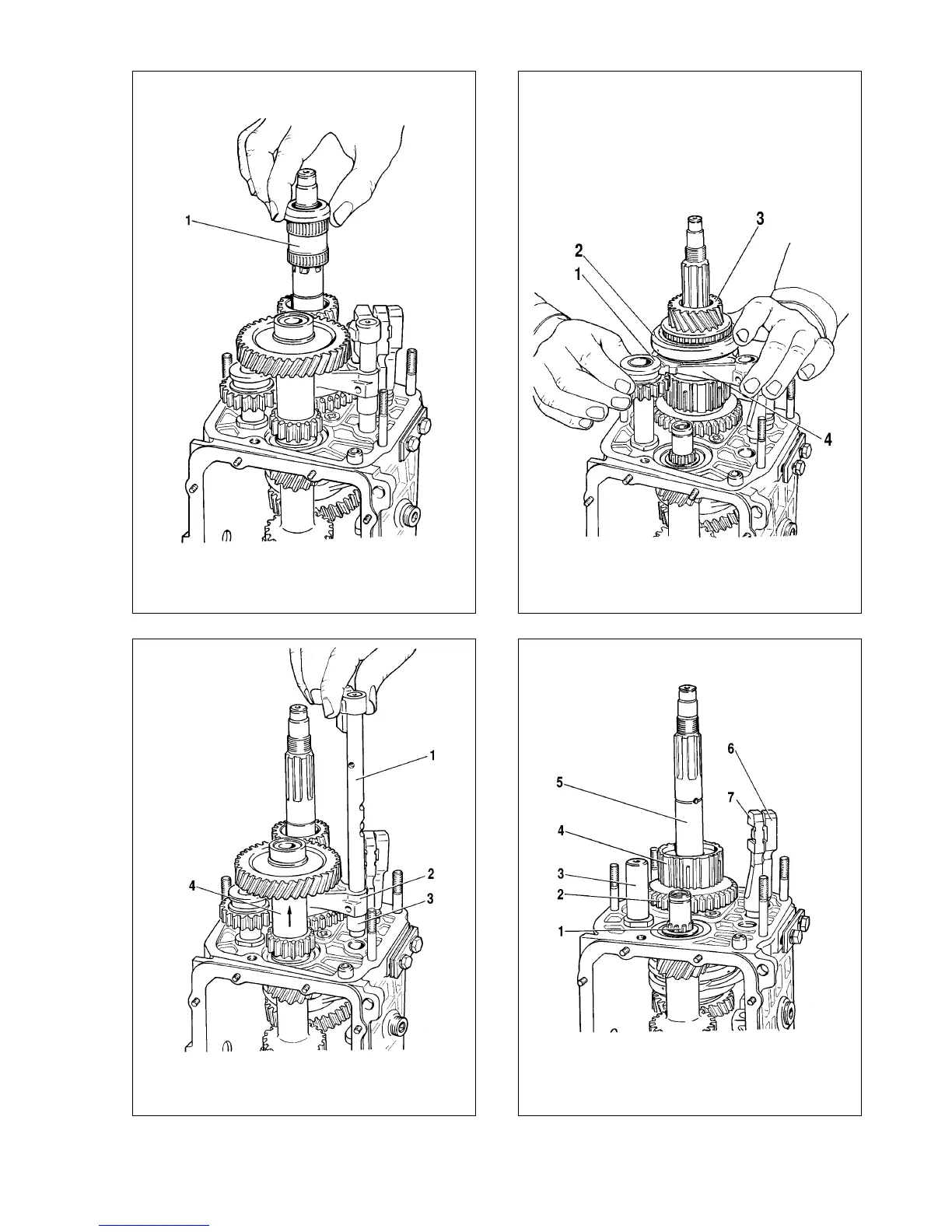

Fig. 3-24. Removing the 5th synchro unit hub/reverse driven gear:
1 - intermediate shaft; 2 - reverse driven gear; 3 - reverse idler gear shaft;
4 - 5th synchro unit hub; 5 - output shaft; 6 - 1st/2nd selector rod; 7 - 3rd/4th
selector rod
Fig. 3-22. Removing the 5th speed/reverse selector rod:
1 - 5th/reverse selector rod; 2 - 5th/reverse fork; 3 - distance sleeve; 4 - gear
unit
Fig. 3-21. Removing the 5th gear bush:
1 - bush
Fig. 3-23. Removing the reverse idler gear, 5th gear/synchro unit and
fork assembly:
1 - reverse idler gear; 2 - 5th speed coupling; 3 - 5th speed/reverse gear
