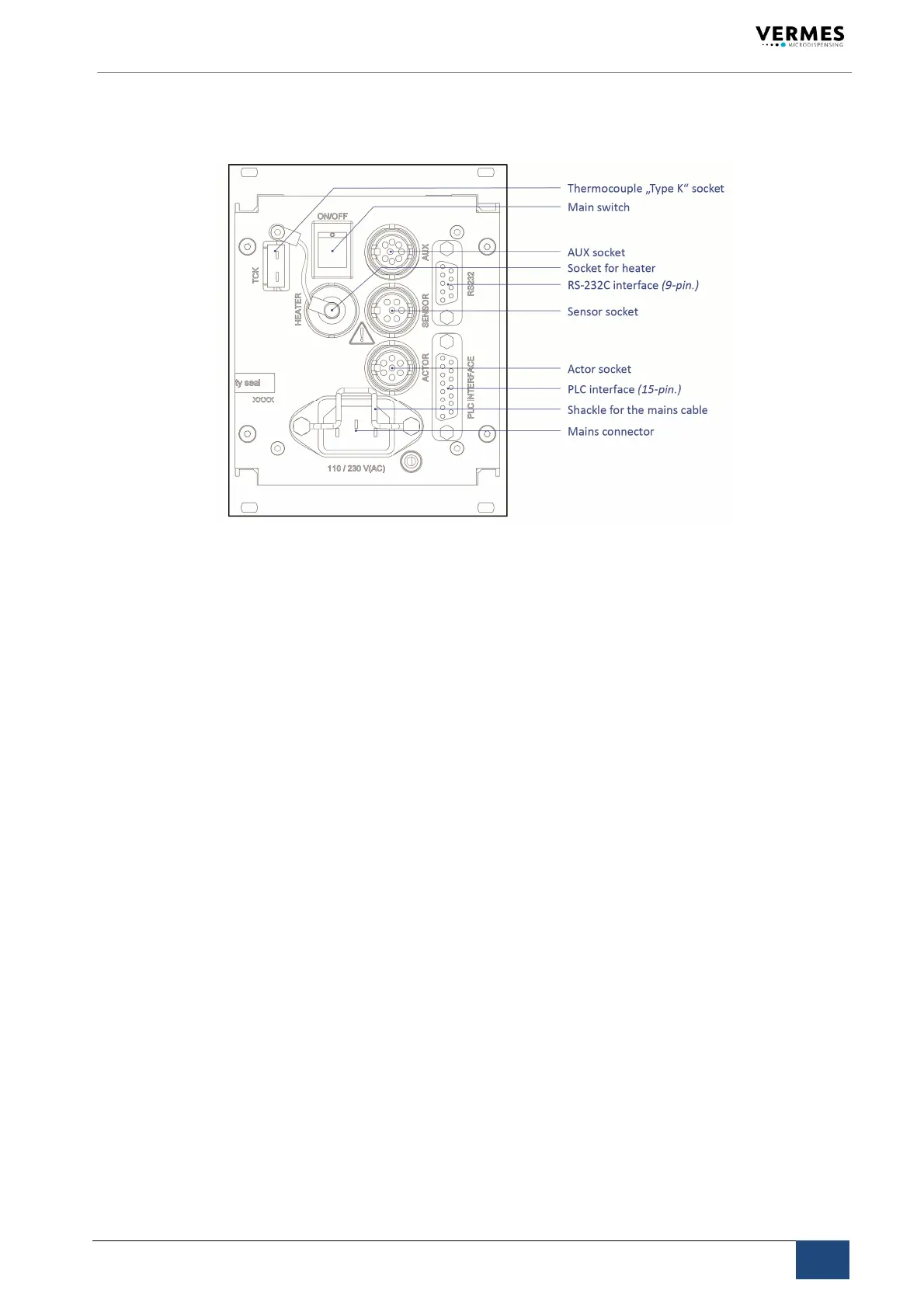

4.1.3 BackSide



















Thermocouplesocket:
Thiselementisintendedforconnectionofthermocouples“TypeK“.

Mainsswitch:
WiththisilluminatedswitchtheunitisswitchedONandOFF.

AUXsocket:
Thisconnectorcanbeusedforsupplyofanexternaldevice(e.g.anoptocoupler).

Socketfor
heating:
Theheatercablehastobeconnectedhere.

RS‐232CInterface(9‐pin):
SincethesystemoffersthepossibilityofexternalprogrammingofdispensingparametersviaPC,a
localRS‐232Cisintegratedtoreceivethedata.Forthecommunicationprotocol,refertopage38.

Sensorsocket:
Fortheconnectionofthesensorcable.

Actuatorsocket:
Fortheconnectionoftheactuatorcable.

PLCInterface(15‐pin):
Differentinputsandoutputsmaybeconnected.Forthecommunicationprotocol,refertopage51.

Shackleforthemainscable:
Securesthemainscableagainstslippingoff.

Mainsconnector:
Connects
thecontrolunittopowersupply.
