4.5 MicrodispensingValveMDV3200A
4.5.1 Composition

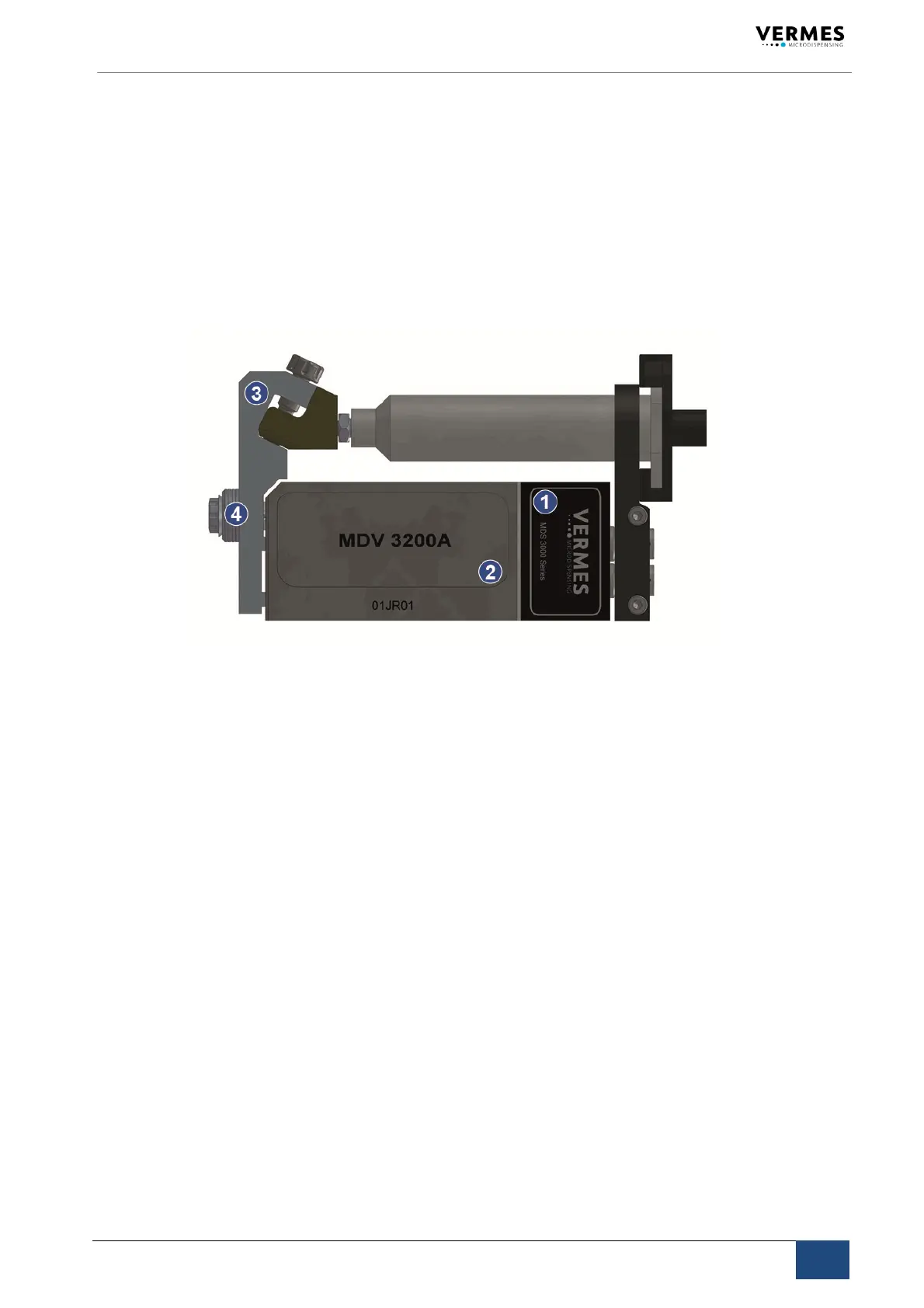

TheMicrodispensingvalvesofVermesMicrodispensingarebuiltmodular.Avalveiscomposedof
fourdifferentmodules:
 Electronics/SensorElectronics(1)
 ActuatorSystem(2)
 FluidBox(3)
 NozzleUnit(4)


















Module(1)accommodatestheelectronics,requiredtoreceivesignalsfromactuator
andsensor.
Theconnectorsforsensorandactuatorcableareintegratedinthesurfaceofthecase;theyhaveto
belinkedtothecontrolunit.

Theactuatorsystem(2),representingthecoreofthemicrodispensingvalve,housesthesensor,the
piezoelectricelementandthemechanicstodrivethetappet.
Actuatorcaseandmechanicsare
sealedforprotectionagainstdustandcontamination.

Thefluidbox(3)isthermallyisolatedfromtheactuatorsystem.Itspurposeistotransporttheliquid
fromthecartridgeorthetank(differentconfigurationsareavailable,seepage68)tothenozzle
unit.Inorderto
simplifyindependentcleaning,thismodulecaneasilybedisengagedfromthevalve,
justbyopeningtwoscrews.

Thenozzleunit(4)includesthenozzleadjustingnut,thetappetguidanceandtheO‐ring.Thenozzle
insertisaseparateitem,easilytobecleanedandtobeexchangedincaseof
need(thisitemhasto
beconsideredasawearingpart).Theusermaychoosefromalargenumberofinserttypes,accord‐
ingtothecurrentapplication.Specialnozzleinsertsareavailableforliquidsofhigh,mediumand
lowviscosity,liquidswithorwithoutfillers(evenforsubstancescontaining
abrasiveextenders),for
contactingornon‐contactingdispensingetc.Fordetails,refertochapter12.



