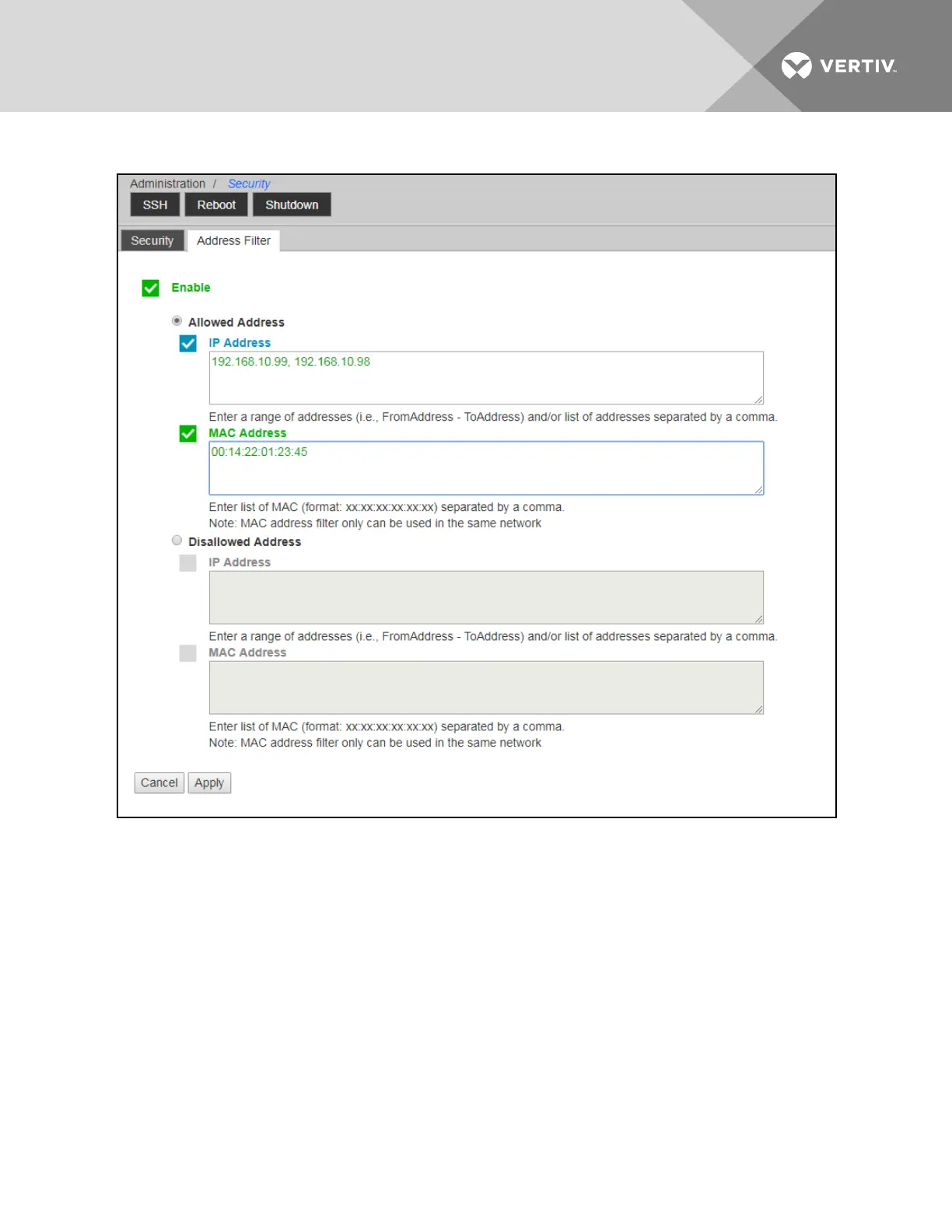

Figure 6.2 Address Filter tab
To enable the address filter:
1. From the sidebar, click Security, then click the Address Filter tab.
2. Click the Enable checkbox.
3. Select the Allowed Address radio button, then click the IP Address and/or MAC Address checkbox and list the
appropriate addresses in each text box.
-or-
Select the Disallowed Address radio button, then click the IP Address and/or MAC Address checkbox and list
the appropriate addresses in each text box.
4. Click Apply.
NOTE: Any action initiated by the appliance including firmware upgrades, messaging, or the addition of an new target
is allowed, even if the device's address involved in the action appears on the disallowed address list.
Vertiv | Avocent® Universal Management Gateway Appliance Installer/User Guide | 72
