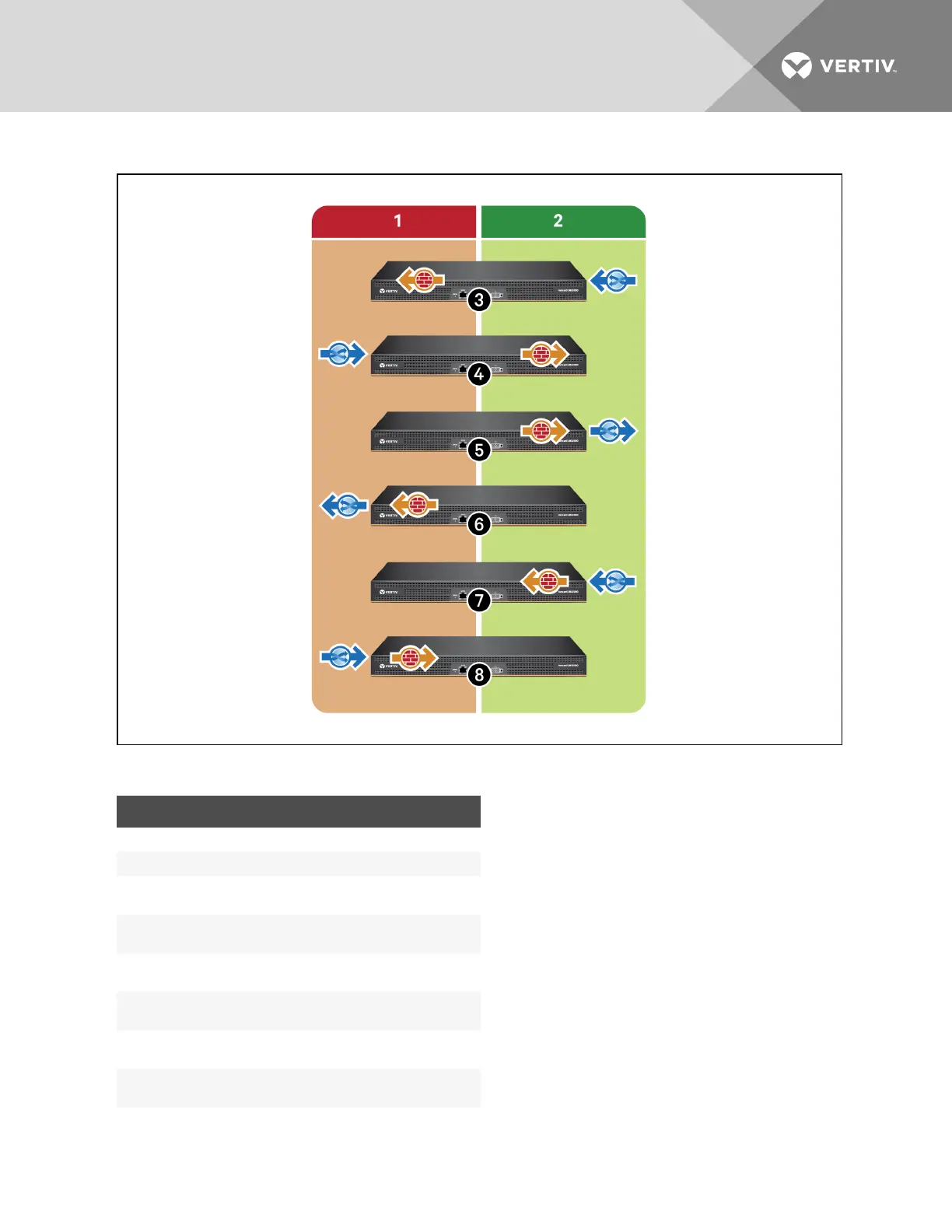

Figure 6.9 Firewall and NATFlow
ITEM DESCRIPTION
1 Outside.
2 Inside.
3
Incoming NATon an inside interface before output filter on an
outside interface.
4
Incoming NATon an outside interface before output filter on an
inside interface.
5
Output filter on an inside interface before outgoing NATon the
same inside interface.
6
Output filter on an outside interface before outgoing NATon the
same outside interface.
7
Incoming NATon an inside interface before input filter on the
same inside interface.
8
Incoming NATon an outside interface before input filter on the
same outside interface.
Table 6.6 Firewall and NATFlow Descriptions
