Vertiv™ | Liebert® SRC-G | User Manual 59
Controller Operation Instructions
• EC Dehum parameter to control fan speed for dehumidification.
• Min EC O/P and Max EC O/P are for minimum and maximum fan speed options, in case of variable fan speed is
selected.
• MachSEL parameter oprion for selection of Unit model for operation.
• DTA setup parameter for temperature dierence below which DTA alarm is triggered.

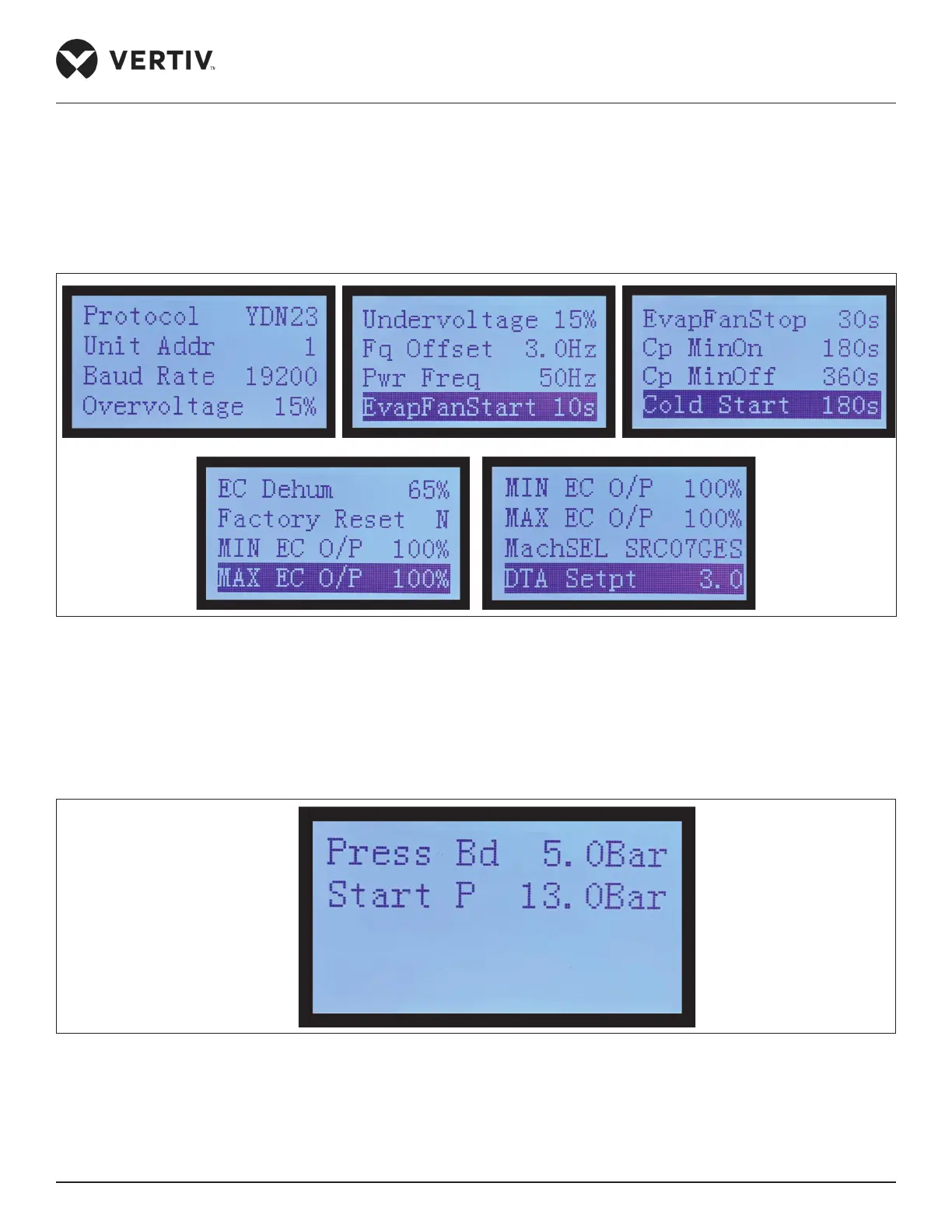

Figure 5-22 Protocol Setup Screen
5.7.2. Outdoor Unit Options
In the System Menu option, select ‘Outdoor Unit’ option to access the outdoor unit option shown in
Figure 5-23.
Figure 5-23 Pressure Setting Screen
