Vertiv™ | Liebert® SRC-G | User Manual 39
Electrical Installation

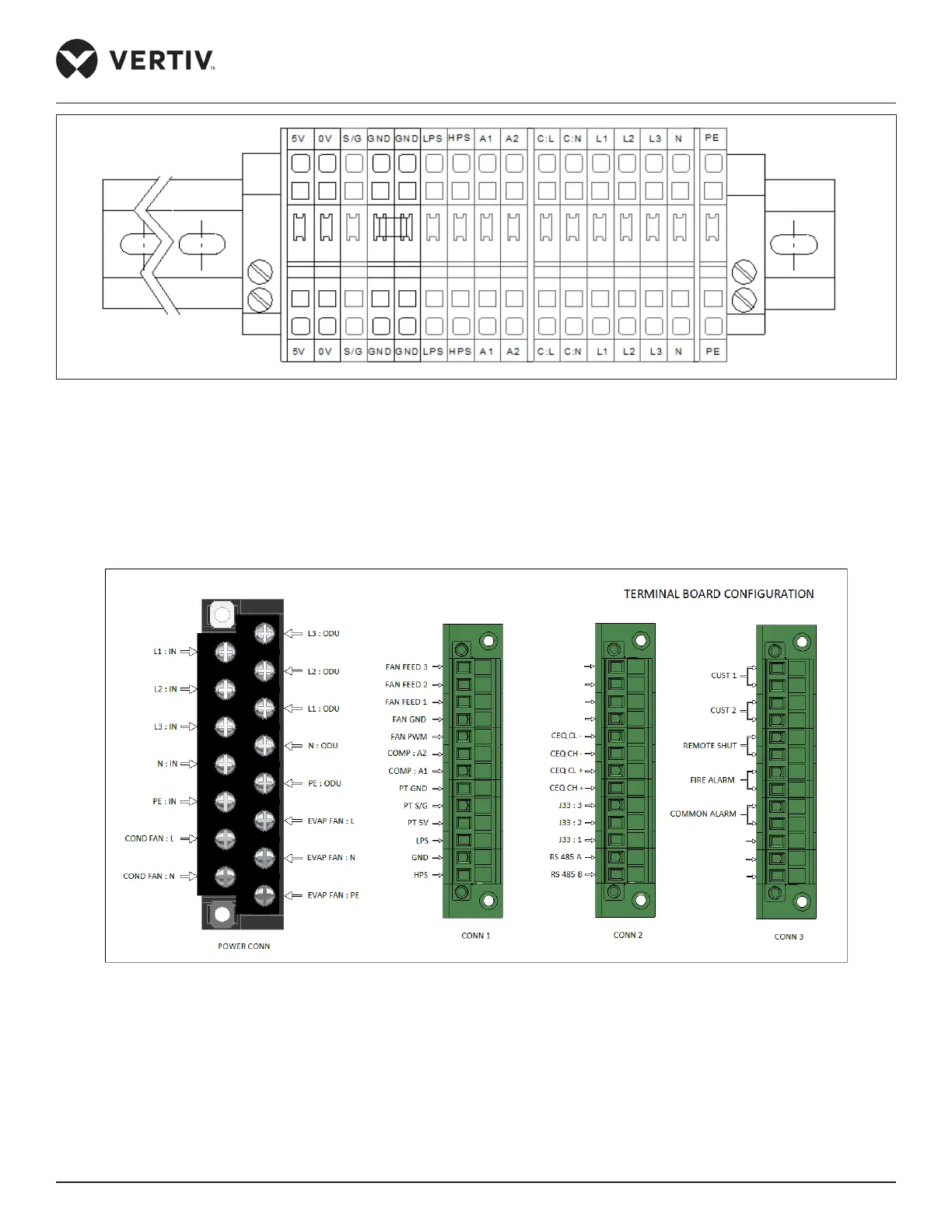

Figure 3-5 Cable Connector Terminals (SRC07GET, SRC11GET)
Refer Figure 3-4and Figure 3-5 for cable connection between indoor and outdoor units.
3.4.1. Control Panel Connection
Control panel is provided with power connector and control connector (CONN1, CONN2 & CONN3).
Refer following figure for description
Figure 3-6 Cable Connector Terminals
Figure 3-6 shows a generalized picture of terminal connection. Following table shows applicability of pins. During
installation refer sticker pasted on machine for actual connection. Pins other then presented in below table are
applicable for all machines.
