No. Description No Description
1 Fan Box 3 EC Fan
2 Front Panel

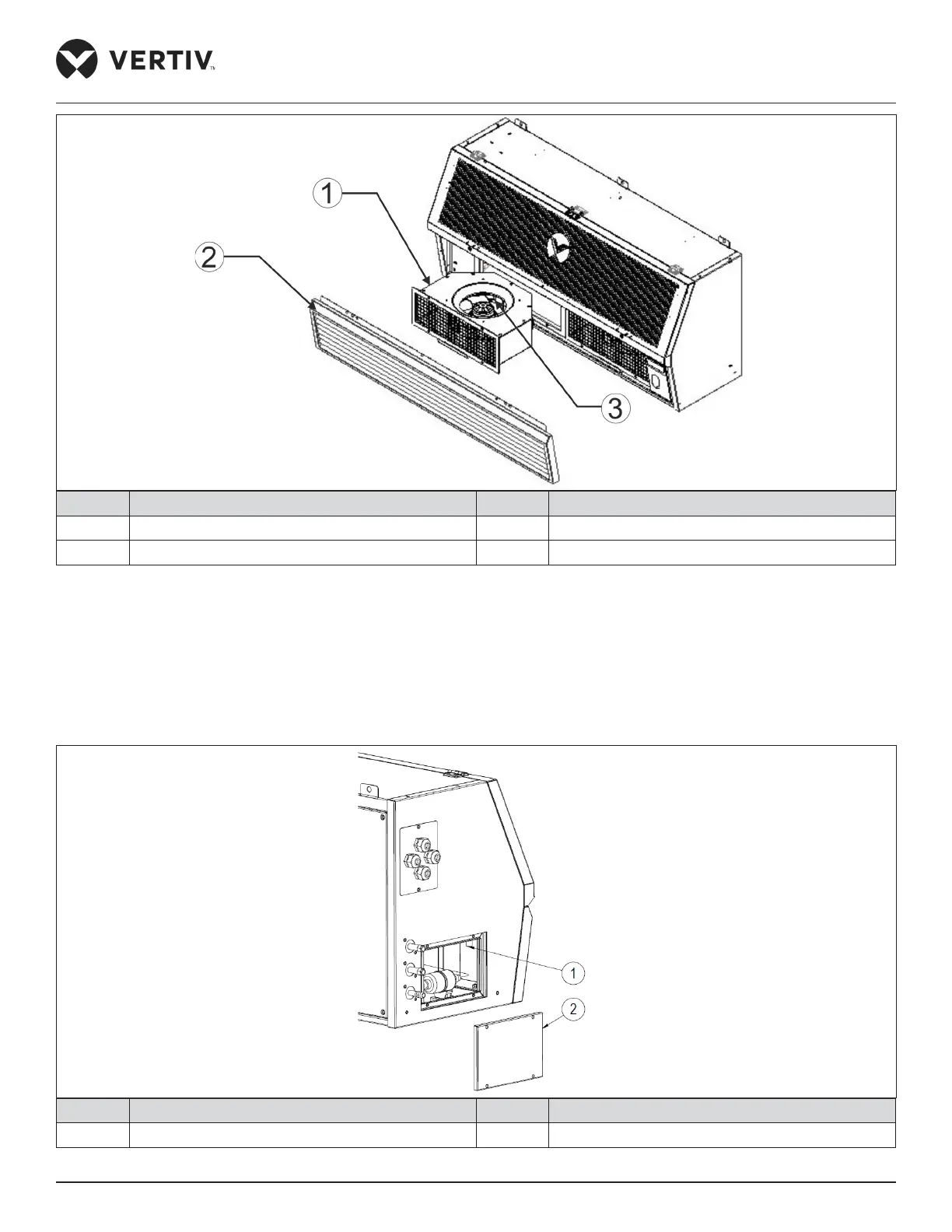

Figure 6-2 Vertiv™ Liebert® SRC-G EC Fan Location
6.2.3. Drain Pipe
Figure 6-3 shows drain pipe connection; inspect water pan periodically for normal operation of the drain pipe.
Ensure that no foreign matter or leakage exists in the drain pipe.
No. Description No Description
1 Drain connection 2 Cover plate
Figure 6-3 Liebert® SRC-G Drain Pipe Connection
