Vertiv™ | Liebert® SRC-G | User Manual 58
Controller Operation Instructions

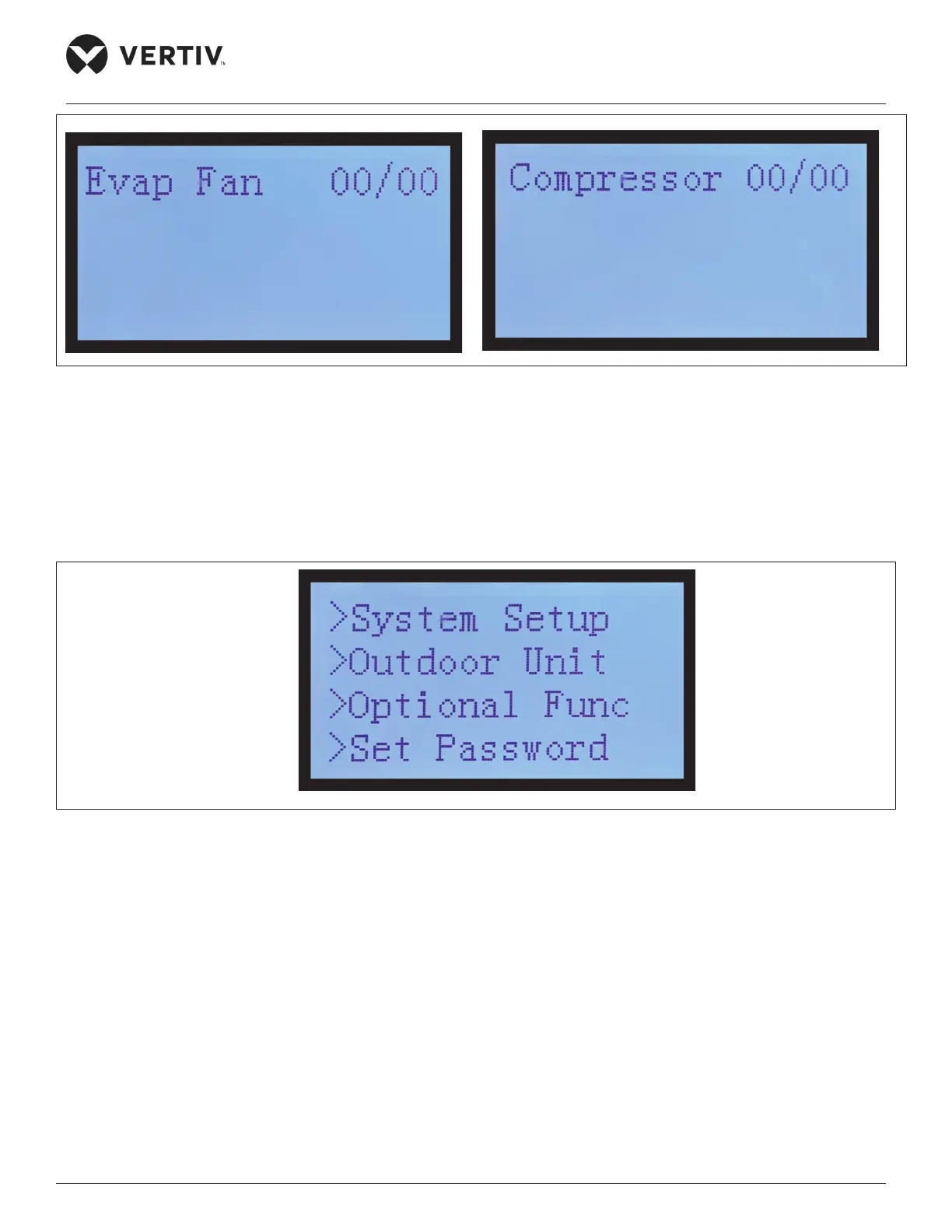

Figure 5-20 Evap Fan and Compressor Screen
5.7. System Menu
In the Main Menu select ‘System Menu’ to access System Setup, Outdoor unit, Optional Func. and Set Password
options of the unit as shown in Figure 5-21.
Figure 5-21 System Menu Option
5.7.1. System Setup Options
In the System Menu option, select ‘System Setup’ option to access the following setting option shown from
Figure 5-22.
Following are options available in system setup sub-menu
• Communication setting parameters such as Protocol, Unit addr, Baud rate.
• Supply power monitoring parameters such as over-voltage, under voltage frequency oset and Pwr frequency.
• To safeguard compressor and fan during normal operation, Operation delay parameters such as EvapFanStart,
EvapFanStop, Cp minOn, Cp minO, cold Start defines various.
