Mechanical Installation
2.7. Installation of Outdoor Unit
2.7.1. Installation Notes
• Install the outdoor unit for better security and maintenance accessibility. Do not install it on ground-level
sites where public can access it easily.
• The outdoor unit should be installed away from the residential area. Do not locate it directly in the
environment that requires low noise.
• To ensure the cooling performance of the unit, install the outdoor unit in the outdoor with suicient airflow.
Do not install where dust or snow can obstruct the condensing coil.
• Ensure that there are no steam around the unit, waste heat, and so on.
2.7.2. Holes Dimension of the Outdoor Unit Base
Fix the outdoor unit onto the base with expansion bolts, refer Figure 2-13 for the vertical installations of the
outdoor unit. The hole dimension of the base for vertical installations is given Table 2-6.
No. Description
1 Long waist hole (4-10x12)

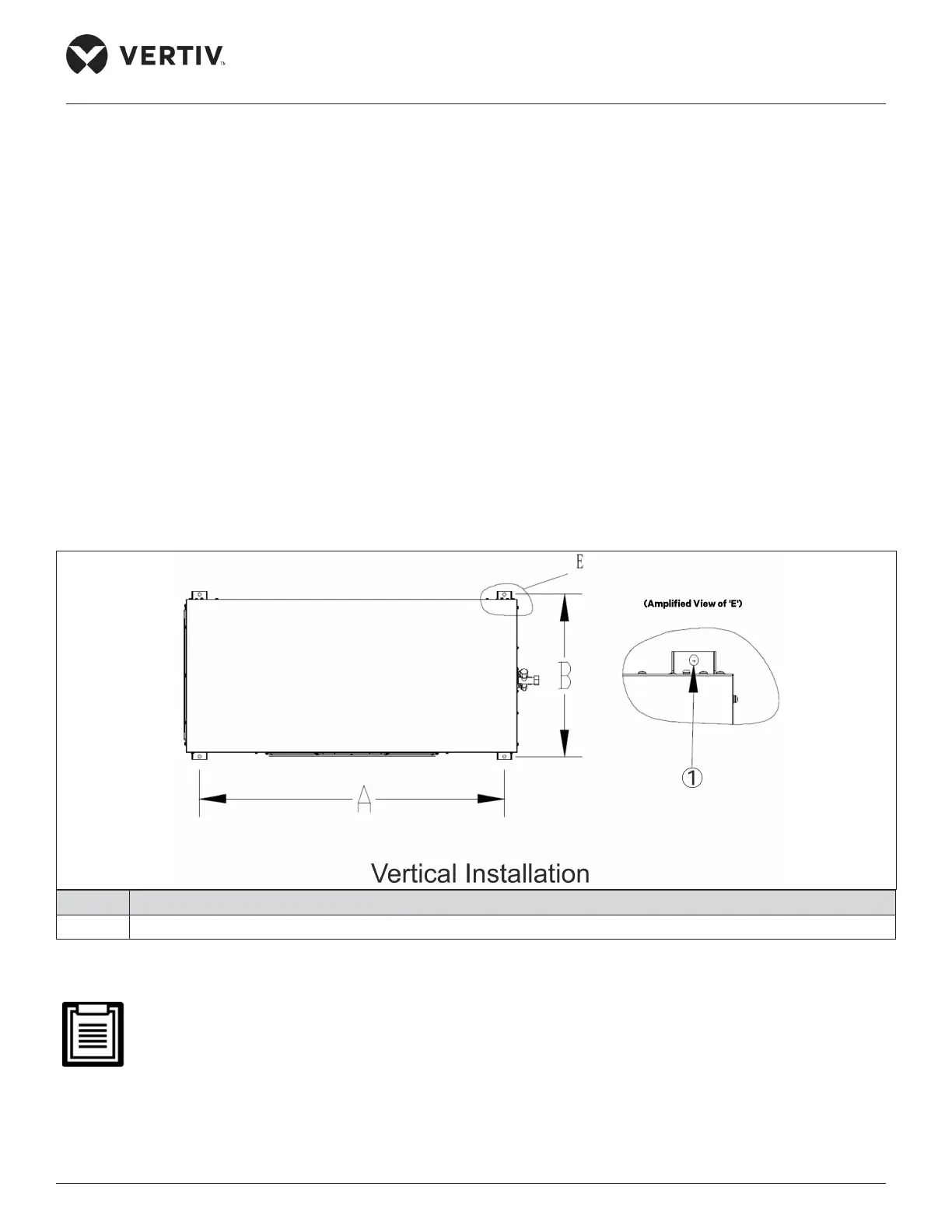

Figure 2-13 Hole Dimension of Outdoor Unit Base (Vertical Installation)
For vertical installation, first fix the bracket frame to the installation floor, then install the outdoor unit
on the base frame.
