Mechanical Installation
Table 2-6 Outdoor Unit Mounting Hole Size
Installation Mode Model A (mm) B (mm)
Vertical installation
SRC03GES 656 410
SRC07GES 656 410
SRC07GET 656 410
SRC11GET 656 410
No. Description No. Description
1 Outdoor unit 3 Base
2 Bracket 4 Outdoor unit base

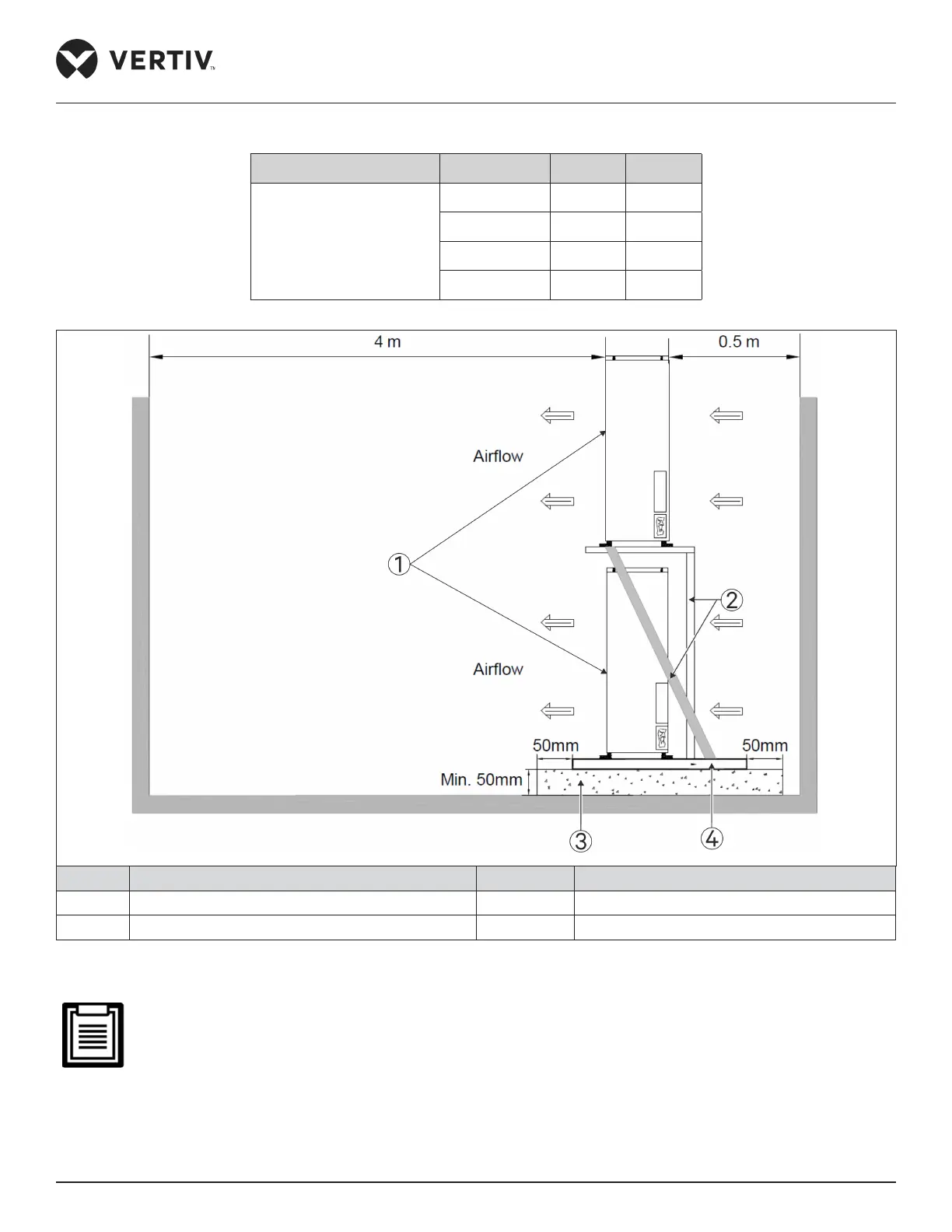

Figure 2-14 Vertical Installation of Multiple Outdoor Units with One above the Other
• Use 5# angle iron for bracket, when two units are installed with one above the other.
• Use 6.5# channel steel for bracket, when three units are installed with one above the other.
