Mechanical Installation
2.8.5. Connecting Drain Piping Of Indoor Unit
Connect one end of the drain pipe to the connector of condensate water drain pipe shown in Figure 2-15. The
drain pipe of the indoor unit has reserved a copper pipe with 1/2” nozzle to connect to the drain pipe, and use a
1/2” inch braided hose provided along with unit. The hose could be tightened with the help of worm clip.
In case outside weather is freezing, drain pipe should be provided with suicient insulation in order to avoid
freezing inside pipe.
2.9. Installation of Display Screen
Liebert® SRC-G unit is provided with a control panel which can be simply mounted on the wall with the help of
screw arrangement. Refer the following procedure to mount the control panel.
1. Figure 2-17 shows the mounting arrangement of control panel. Surrounding clear spacing shall be in
accordance with Figure 2-5. Put two screws (M6 CSK) into the wall at the location as depicted in the
illustration.

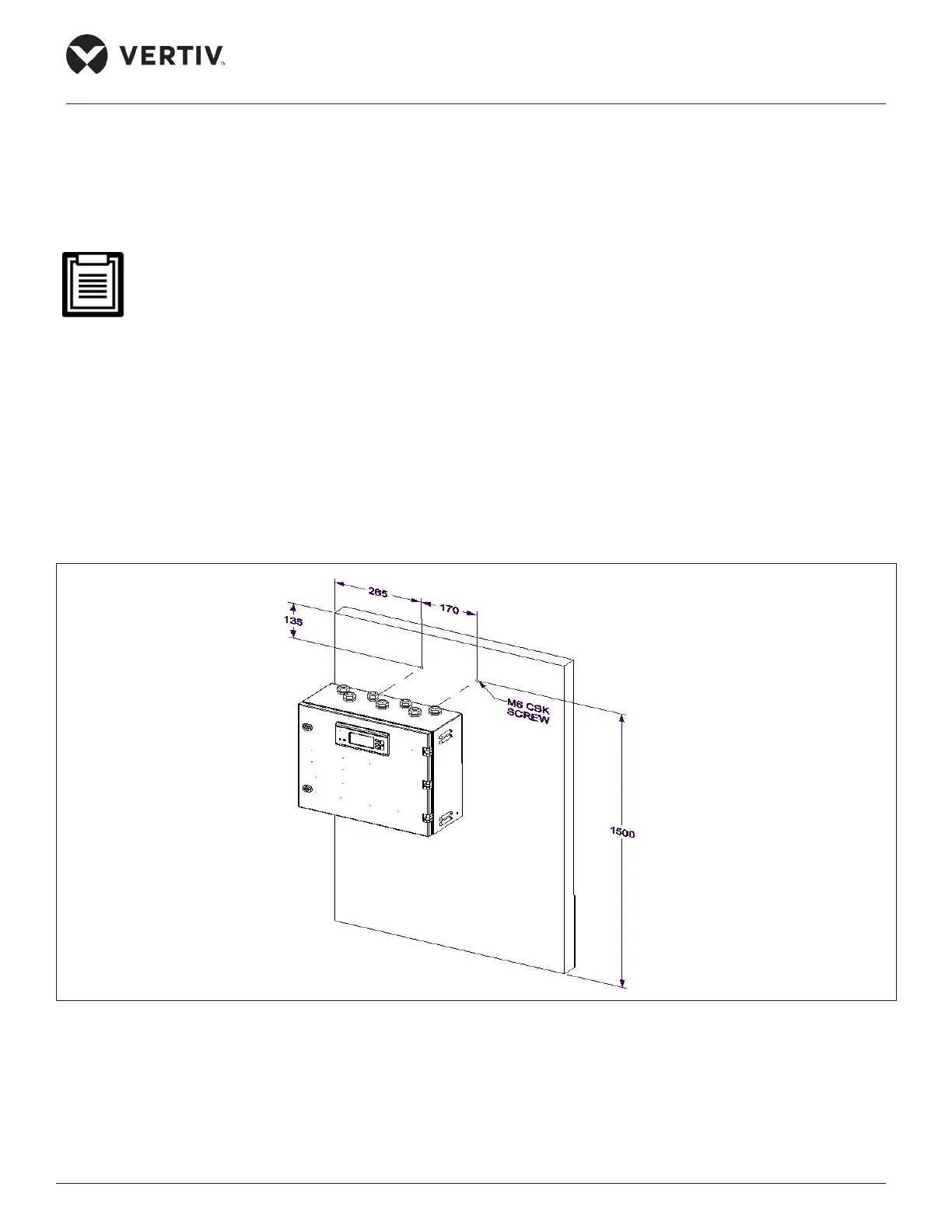

Figure 2-17 Mounting Arrangement of Display Screen
2. Once the screws are rigidly placed, anchor the control panel by matching the screws to their respective holes.
Ensure that the screws are firmly fixed and can sustain weight of the control panel.
3. Ensure the cables connecting to the control panel to indoor unit and outdoor unit are properly routed and
