Vertiv™ | Liebert® SRC-G | User Manual
20
Mechanical Installation
No. Description No. Description
1
Recommended area for unit installation
3
Not recommended area for unit installation
2 IT Equipments 4 Layout of the room

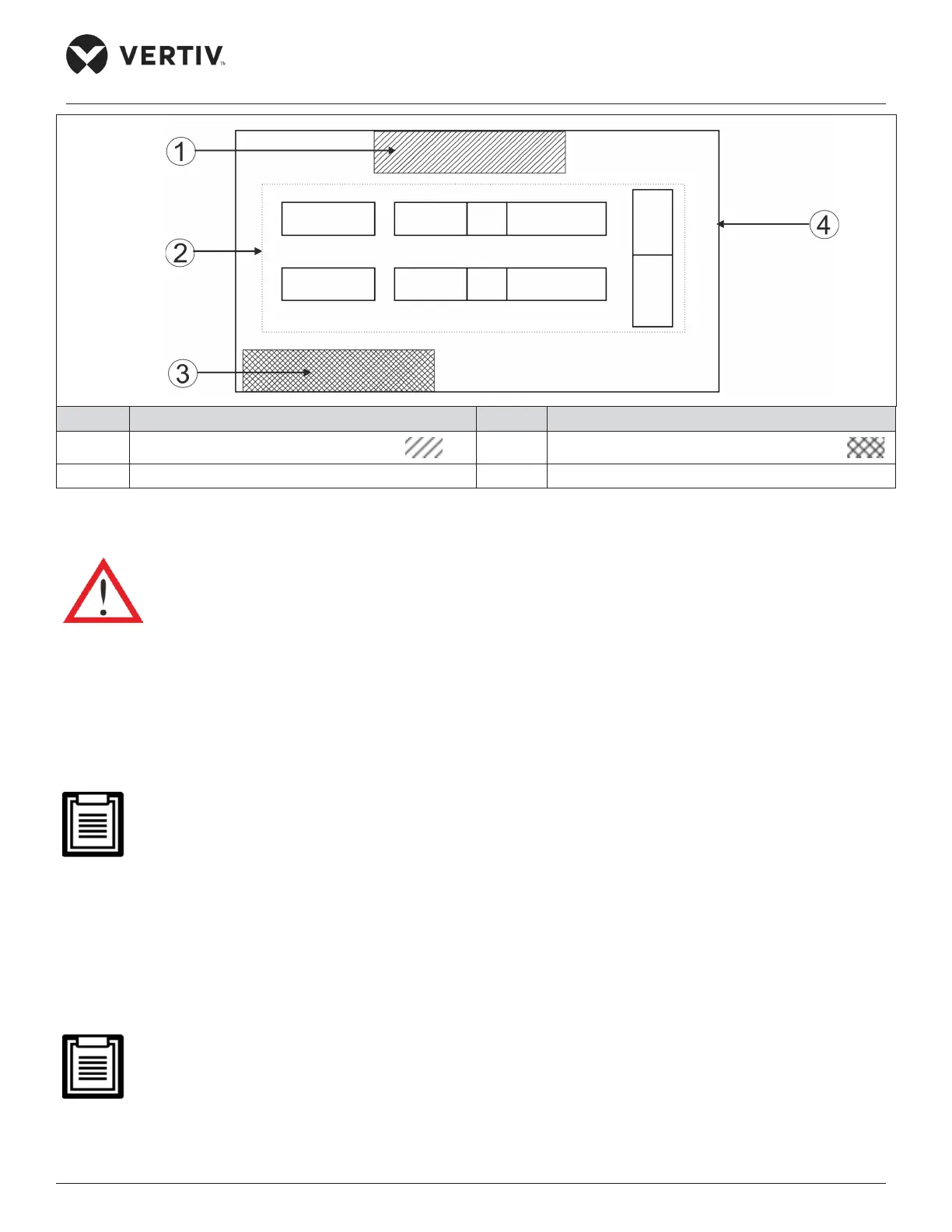

Figure 2-8 Installation Location of the Indoor Unit
• Do not use the indoor unit in the open and severe outdoor environment.
• Avoid locating the indoor unit in concave or narrow areas, which can obstruct the airflow, shorten the
cooling cycle and result in air return short cycle and air noise.
• Avoid locating multiple indoor units close to each other that can result in short cycle of air and creating
load imbalance. The minimum distance between adjacent units is 600 mm.
• Do not install the unit within the vicinity of any other precision cooling equipment to avoid the leakage of
condensed water produced due to imbalance load condition.
• Do not install other devices (such as smoke detector) over the indoor cabinet.
Vertiv™ Liebert® SRC-G can generate condensate water. Water leakage can cause damage to other equipment
nearby. Do not install the units in the vicinity of any precision equipment. The installation site must have the
facility of drainage piping.
2.6.3. Indoor Unit Installation
Two mounting brackets are supplied in the installation kit of the unit, these brackets are sized according to the
dimensions, weight, and height of the indoor unit models. Figure 2-9 and Table 2-4 provide the dimensional
details of indoor unit.
Liebert SRC-G indoor unit contains a set of two installation brackets Left and Right Hand brackets as shown in
Figure 2-9, installation team must ensure to use respective bracket as per its suitable orientation.
