Vertiv™ | Liebert® SRC-G | User Manual
21
Mechanical Installation

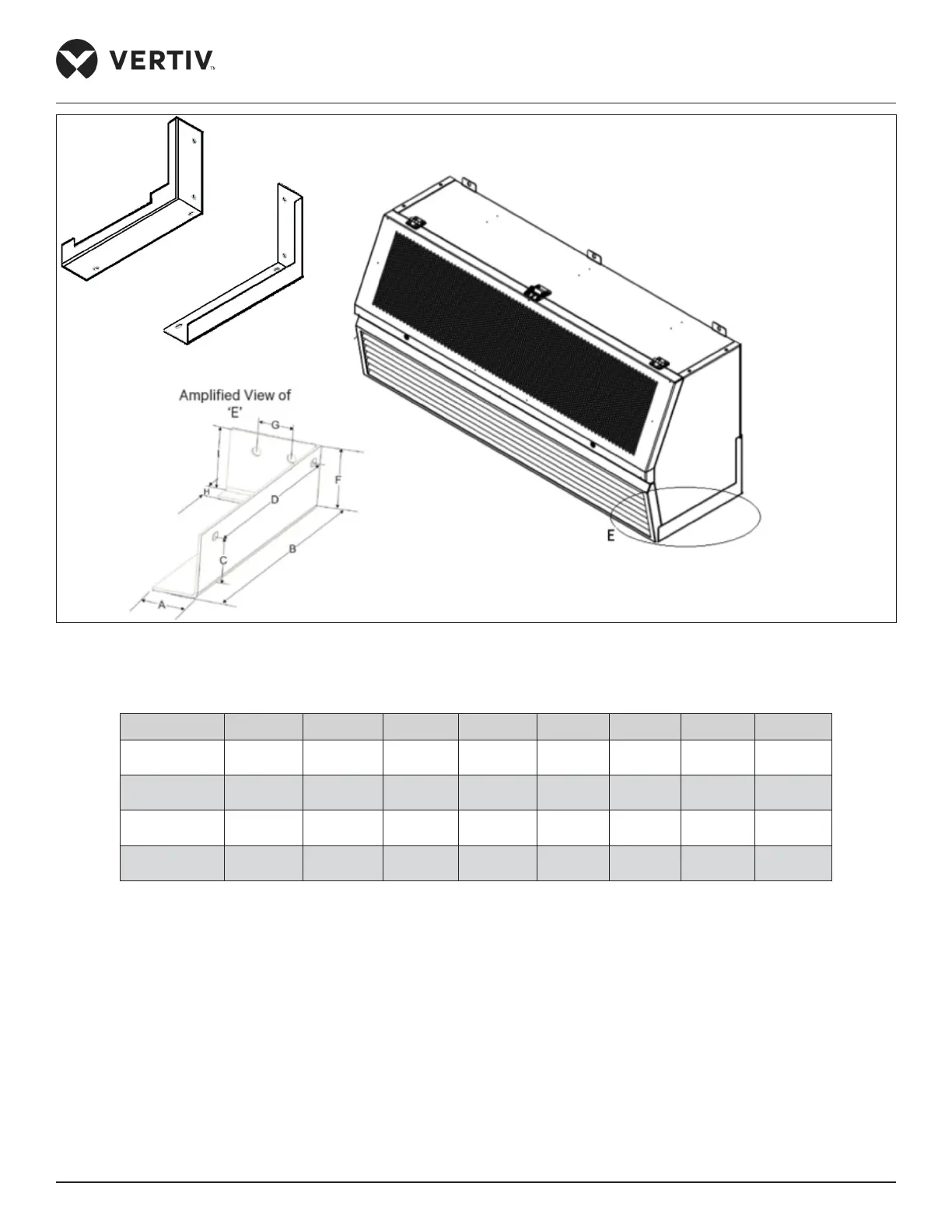

Figure 2-9 Mounting Frame for Indoor Unit
Table 2-4 Mounting Bracket Dimension of the Indoor Units
Model A B C D F G H I
SRC03GES 50 320 58 272 70 134 25 70
SRC07GES 50 320 58 272 70 134 25 70
SRC07GET 50 320 58 272 70 134 25 70
SRC11GET 50 320 58 272 70 134 25 70
Follow the step by step procedure to install the Liebert® SRC-G Indoor unit.
Step 1: Figure 2-10 illustrates the drill holes of dimension Ø 10 mm for expansion bolts and their locations for
SRC03GES, SRC07GES, SRC07GET, and SRC11GET models.
