Vertiv™ | Liebert® SRC-G | User Manual
11
Mechanical Installation
Chapter 2: Mechanical Installation
This chapter describes the mechanical installation of Vertiv™ Liebert® SRC-G, including unpacking and
inspection, installation notes, system installation arrangement, installing indoor and outdoor units, piping,
removing transportation fasteners and adding refrigerant for long pipe system, and inspection items.
2.1. Unpacking and Inspection
Move the unit to the location near to the final installation site and then unpack the packaging and de-palletized
the pallet of Liebert SRC-G unit as illustrated in Figure 2-1.
No. Description No. Description
1 Indoor unit 5 Fastening support/ L-Clamp
2 Outdoor unit 6 Bolt
3 Fastener (cable tie) 7 Control panel box
4 Stand/Platform/Pallet

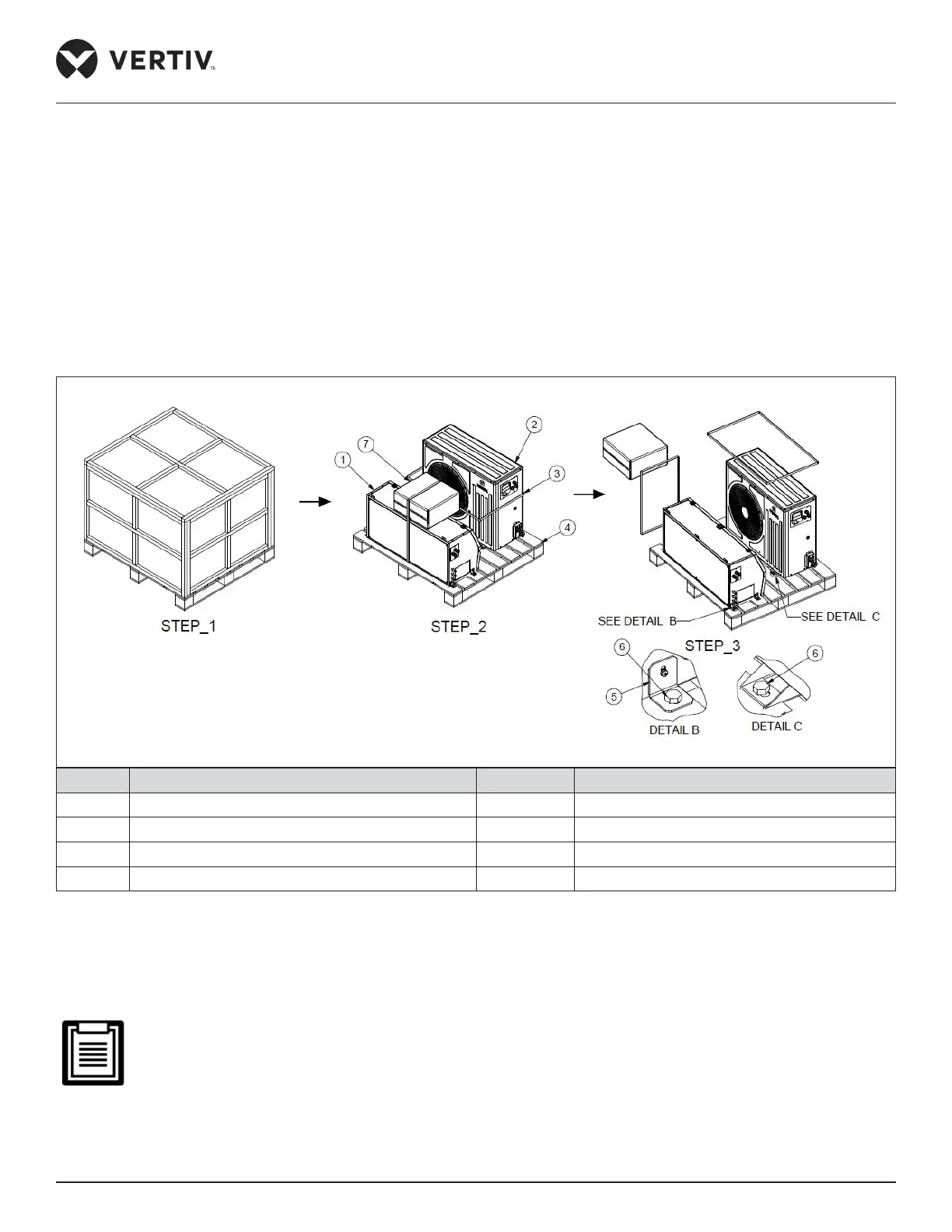

Figure 2-1 Unpacking and De-palletized of Liebert® SRC-G Unit
Check that the fittings are complete and the components are intact against the packing list. If any parts are
found missing or damage, report immediately to the local oice of the carrier and Vertiv representative. Do not
accept a damaged unit.
Liebert® SRC-G indoor unit is factory charged with Nitrogen at 0.2 MPa (2 bar) pressure. After unpacking,
check the unit and if the Nitrogen pressure is less, then consult Vertiv representative.
