5-12 Checking and Replacing the Ribbon Rev AA
Videojet DataFlex 6420 Operator Manual
7 Route the ribbon so that it:
• unspools from the outside of the full roll
• goes around the outside of the white roller that is nearest to the full
roll
• runs along the bottom of the cassette
• goes around the outside of the second white roller
• passes around the outside of the empty spool

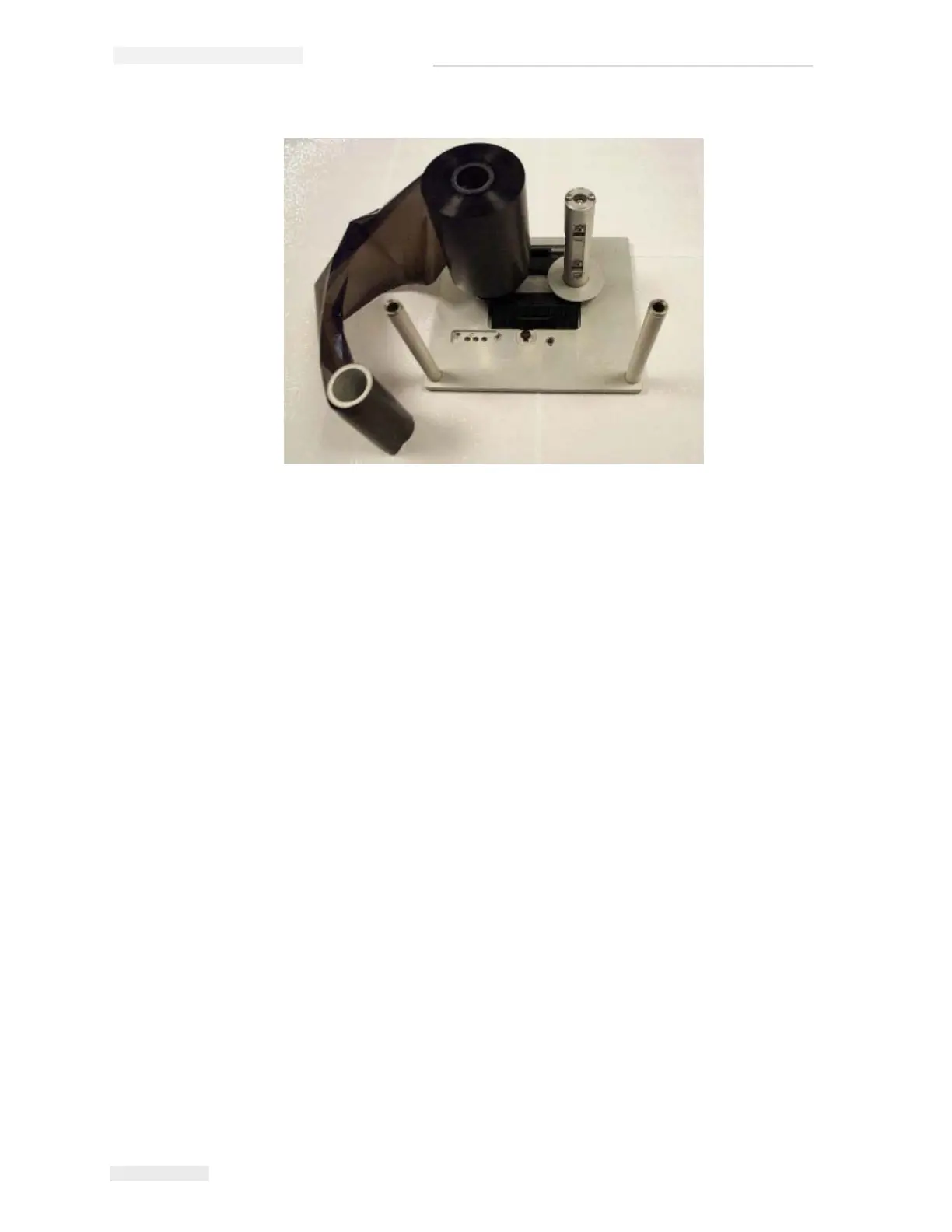

Figure 5-12: Ribbon Spool Installation
