Rev AA Checking and Replacing the Ribbon 5-13
Videojet DataFlex 6420 Operator Manual
8 Slide the empty spool completely down onto the holder that has a
silver disc (Figure 5-13).
9 Turn the empty spool by hand to take up any excess ribbon. Stop
turning the empty spool when the full spool starts to rotate (Figure 5-
14).
Note: If the supplied ribbon has a transparent section or printed leader at the
start, rotate the empty spool to take up all the transparent ribbon.

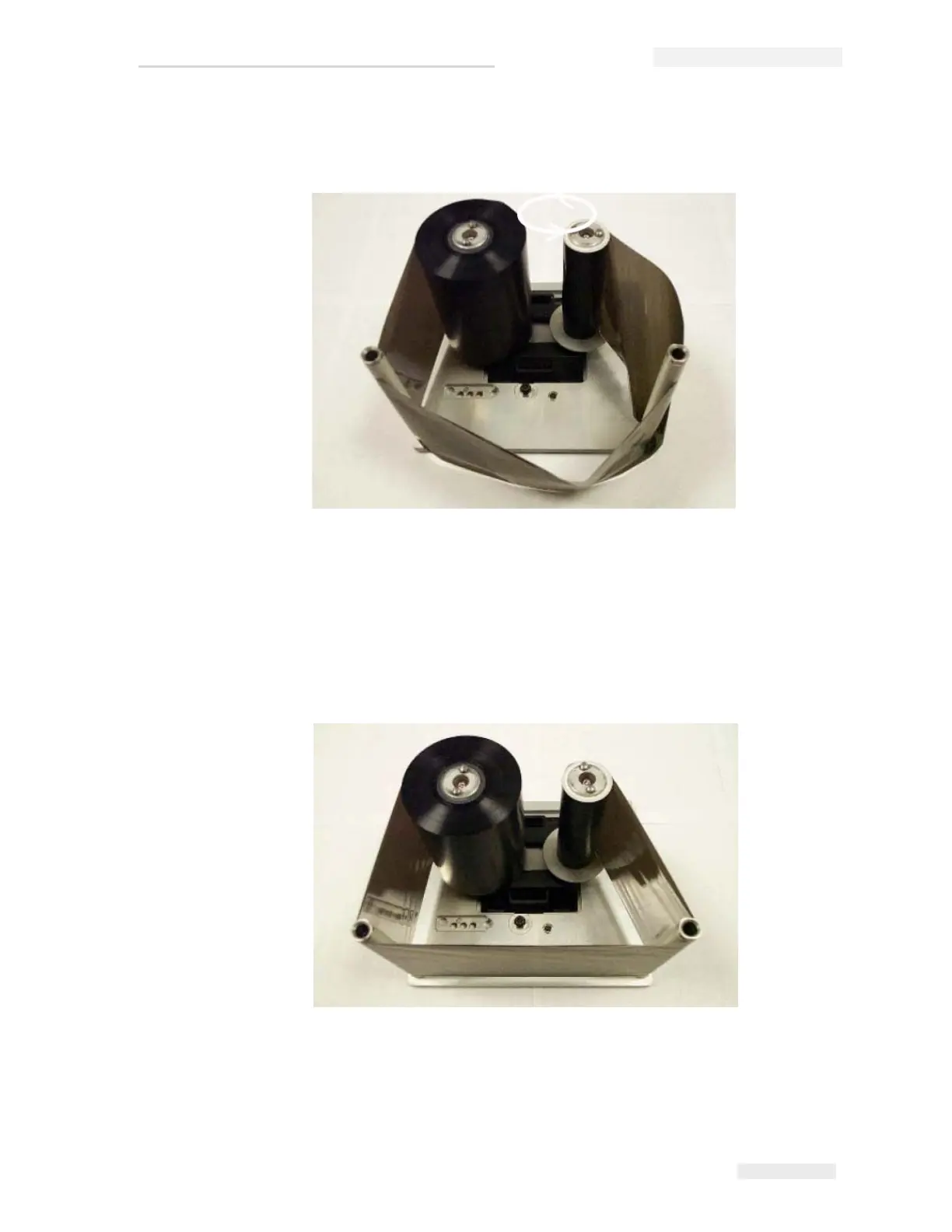

Figure 5-13: Ribbon Spool Routing
Figure 5-14: Ribbon Spool Routing
