2.1 Product description
The absorbers of the Vitosol 100-F and Vitosol 100-FM collectors,
with their selective coating, ensure a high level of absorption of inso-
lation. The copper pipe shaped like a meander ensures an even heat
transfer at the absorber.
The collector casing features heat-resistant thermal insulation and a
cover made from low ferrous solar glass.
Flexible connection pipes sealed with O-rings provide a secure par-
allel connection of up to 12 collectors.
A connection set with locking ring fittings enables the collector array
to be readily connected to the solar circuit pipework. The collector
temperature sensor is mounted in a sensor well set, located in the
solar circuit flow.
The collector is available in 2 versions
■ Vitosol 100-FM, type SV2F/SH2F with ThermProtect switching
absorber coating
■ Vitosol 100-F, type SV1B/SH1B with a special absorber coating is
designed for coastal regions (see chapter "Specification").

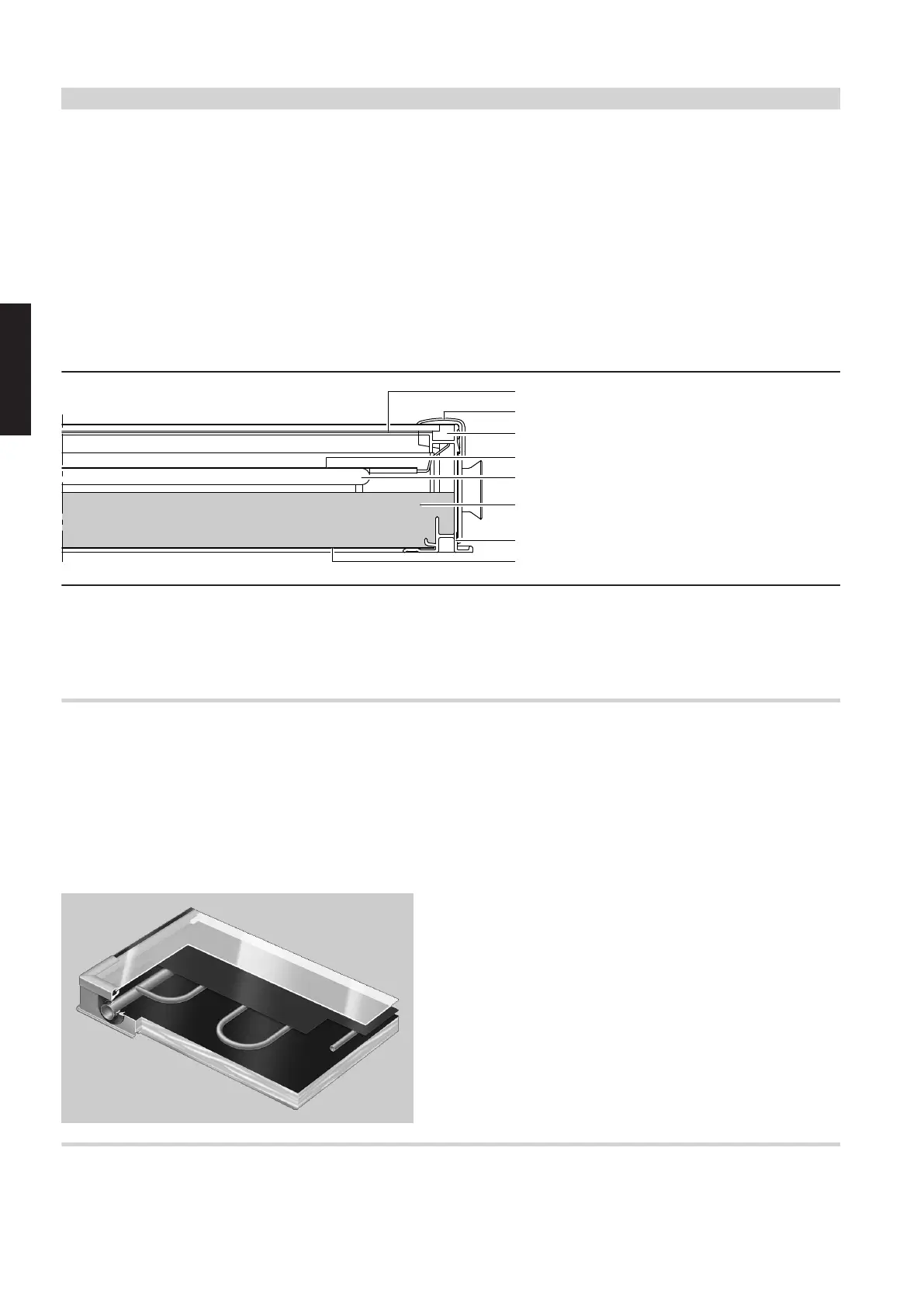

D
E
B
A
F
G
H
C
A
Solar glass cover, 3.2 mm
B
Aluminium cover bracket at the collector corners
C
Pane seal
D
Absorber
E
Meander-shaped copper pipe
F
Thermal insulation made from mineral fibre
G
Aluminium frame
H
Steel base plate with an aluminium-zinc coating
Benefits
■ High-performance flat-plate collectors for above roof and flat roof
installation. Vitosol-FM version with ThermProtect temperature
shutdown for a steam-free and fail-safe solar thermal system
■ Absorber designed with meander layout with integral headers. Up
to 12 collectors can be linked in parallel.
■ Aluminium frame design
■ High efficiency due to absorber with selective coating; stable,
highly transparent cover made from special glass and highly effec-
tive thermal insulation
■ Long-lasting impermeability and high stability thanks to all-round
folded aluminium frame and seamless pane seal.
■ Puncture-proof and corrosion-resistant back panel made from
zinc-plated sheet steel
■ Easy to assemble Viessmann fixing system with statically tested
and corrosion-resistant components made from stainless steel and
aluminium – standard for all Viessmann collectors
■ Quick and reliable collector connection through flexible corrugated
stainless steel pipe push-fit connectors
Factory setting
The Vitosol 100-FM/-F are delivered fully assembled ready to con-
nect.
Vitosol 100-FM, type SV1F/SH1F and Vitosol 100-F, type SV1B/SH1B
10
VIESMANN
VITOSOL
2
5822 440 GB
