Vitosol 200-TM vacuum tube collectors, type SPEA

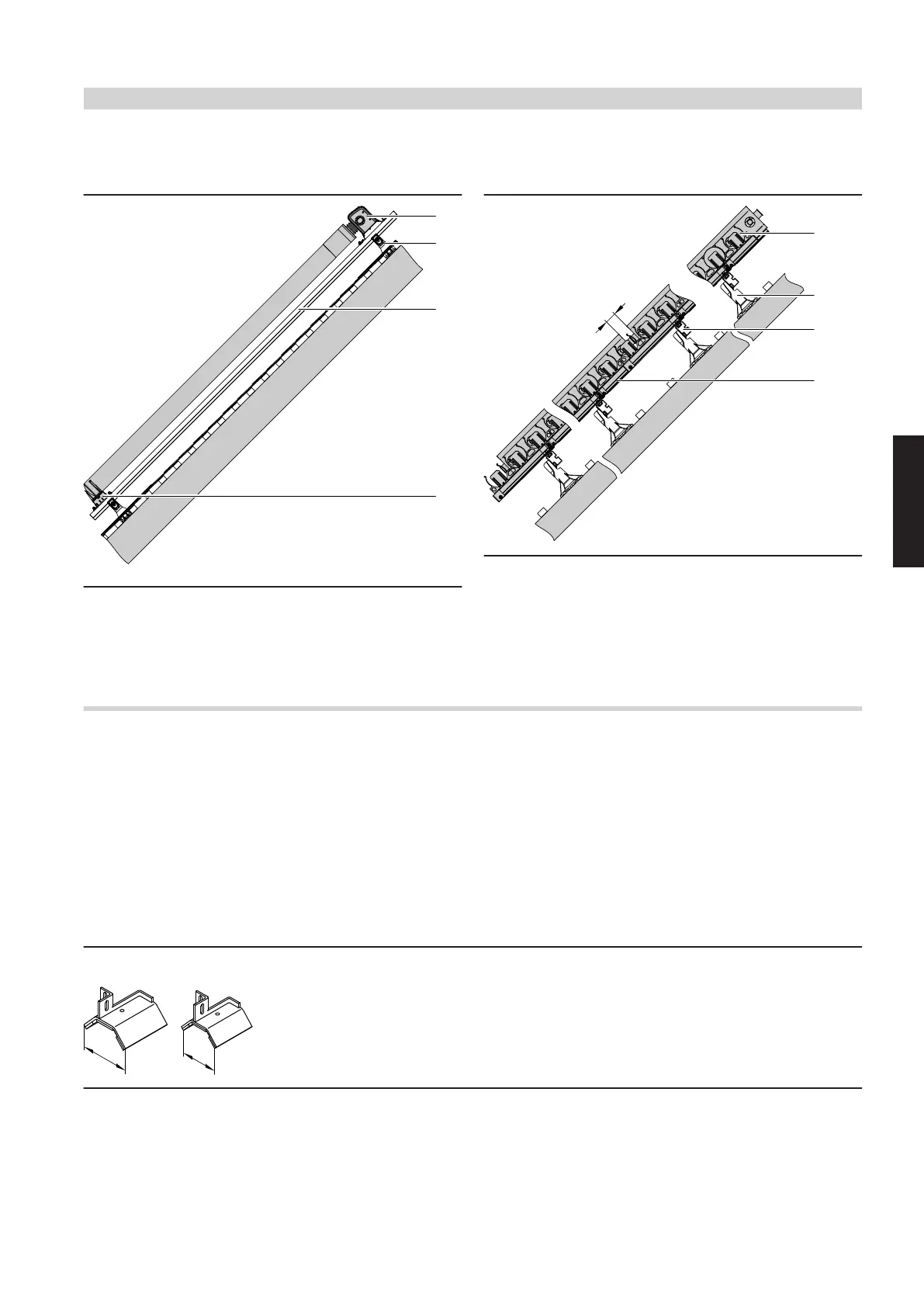

Vertical installation
A
C
D
B
A
Collector
B
Rafter flange
C
Mounting rail
D
Tube retainer
Horizontal installation
44
A
D
C
B
A
Collector
B
Rafter flange
C
Mounting rail
D
Tube retainer
10.4 Above roof installation for corrugated sheet roofs
Observe the information on securing collectors on page 97. ■ This fixing system is suitable for corrugated sheet roofs.
■ The fixing system comprises:
– Fixing hooks
– Mounting rails
– Clamping brackets
– Screws.
■ The loads are transmitted to the roof structure in a number of
ways, including via the fixing hooks and the roof cover. As the load
transmission can vary greatly, the possibility of damage in conjunc-
tion with applied loads can not be fully excluded.
We therefore recommend providing safety measures on site to
ensure the tightness of the roof.
A B
119
94
A
Mounting hook for corrugated sheet profiles 5 and 6
B
Mounting hook for corrugated sheet profile 8
Design information regarding installation on pitched roofs — above roof installation
