Viessmann Vitocell 360-M - Vitosol 200-TM vacuum tube collectors, type SPEA and Vitosol 300-TM, type SP3 BC (horizontal)

b
z
a
A
c
For calculating collector row clearance z, see page 108.
A
Support slabs
Vitosol 200-TM, type SPEA
Combination a mm b mm
1.63 m
2
/1.63 m
2
600/600 655
1.63 m
2
/3.26 m
2
600/1200 947
3.26 m
2
/3.26 m
2
1200/1200 1231
Vitosol 300-TM, type SP3C
Combination a mm b mm
1.51 m
2
/1.51 m
2
505/505 595
1.51 m
2
/3.03 m
2
505/1010 850
3.03 m
2
/3.03 m
2
1010/1010 1100

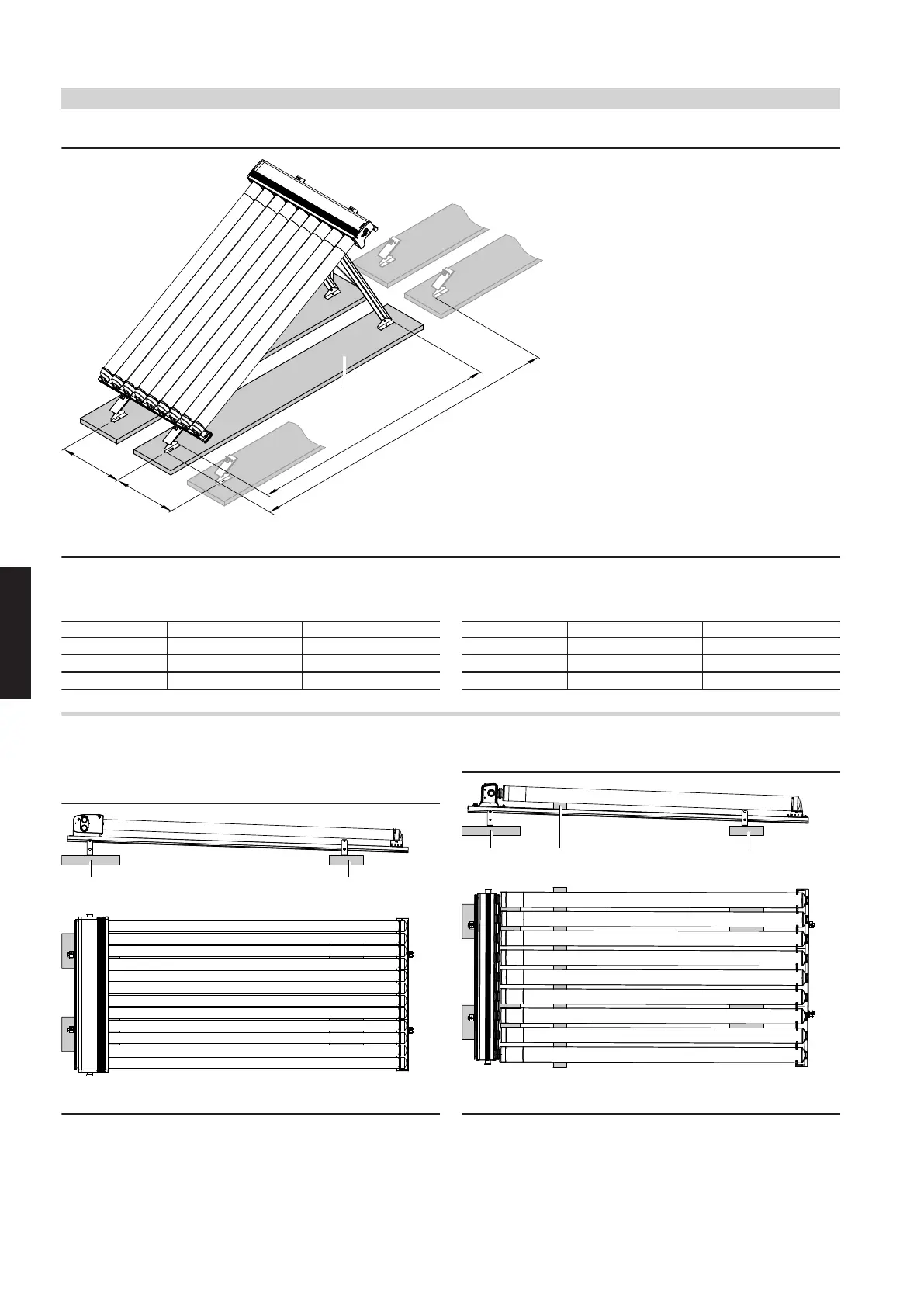

11.4 Vitosol 200-TM vacuum tube collectors, type SPEA and Vitosol 300-TM,
type SP3BC (horizontal)
Observe the information on securing collectors on page 97.
A
B
Vitosol 300-TM, type SP3C
A
Support slab A
B
Support slab B
A
B
C
Vitosol 200-TM, type SPEA
A
Support slab A
B
Support slab B
C
Auxiliary rail for high snow loads
Type SP3C
Horizontal installation for snow loads up to 1.5 kN/m
2
and wind loads
up to 150 km/h
■ The yield can be optimised by rotating the vacuum tubes 25° to the
horizontal.
Design information regarding flat roof installation
(cont.)
