Viessmann Vitocell 360-M - Vertical Installation on Pitched Roofs, Installation on Collector Supports or Horizontal Installation; Horizontal Installation on Pitched Roofs and on Walls

Note
Max. 15 m
2
absorber area can be connected in series to form a sin-
gle array.

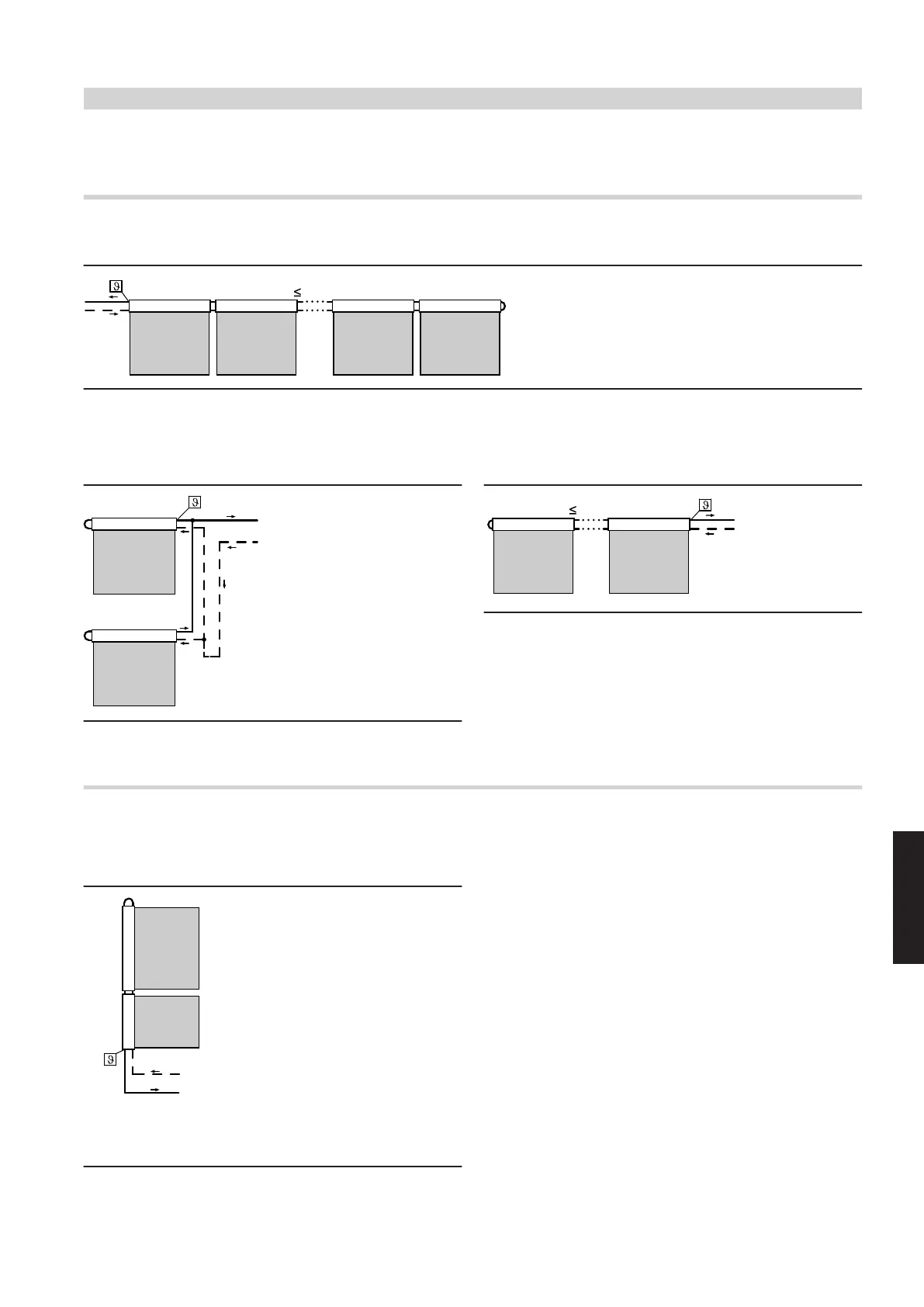

Vertical installation on pitched roofs, installation on collector supports or horizontal installation
Connection from the left
A
15m²
A
Collector temperature sensor in the flow
Connection from the right
A
A
Collector temperature sensor in the flow
A
15m²
A
Collector temperature sensor in the flow
Horizontal installation on pitched roofs and on walls
Single sided connection from below (preferred version)
1 collector array
A
With this connection, the "Relay kick" function on the Vitosolic 200
must be enabled (see chapter "Functions" in the "Solar control units"
section).
A
Collector temperature sensor in the flow
With this installation, the following minimum flow rates in the collec-
tor array (section) must be ensured:
1.26 m
2
110 l/(hm
2
)
1.51 m
2
90 l/(hm
2
)
3.03 m
2
45 l/(hm
2
)
4.54 m
2
30 l/(hm
2
)
≥6.06 m
2
25 l/(hm
2
)
Information regarding design and operation
(cont.)
