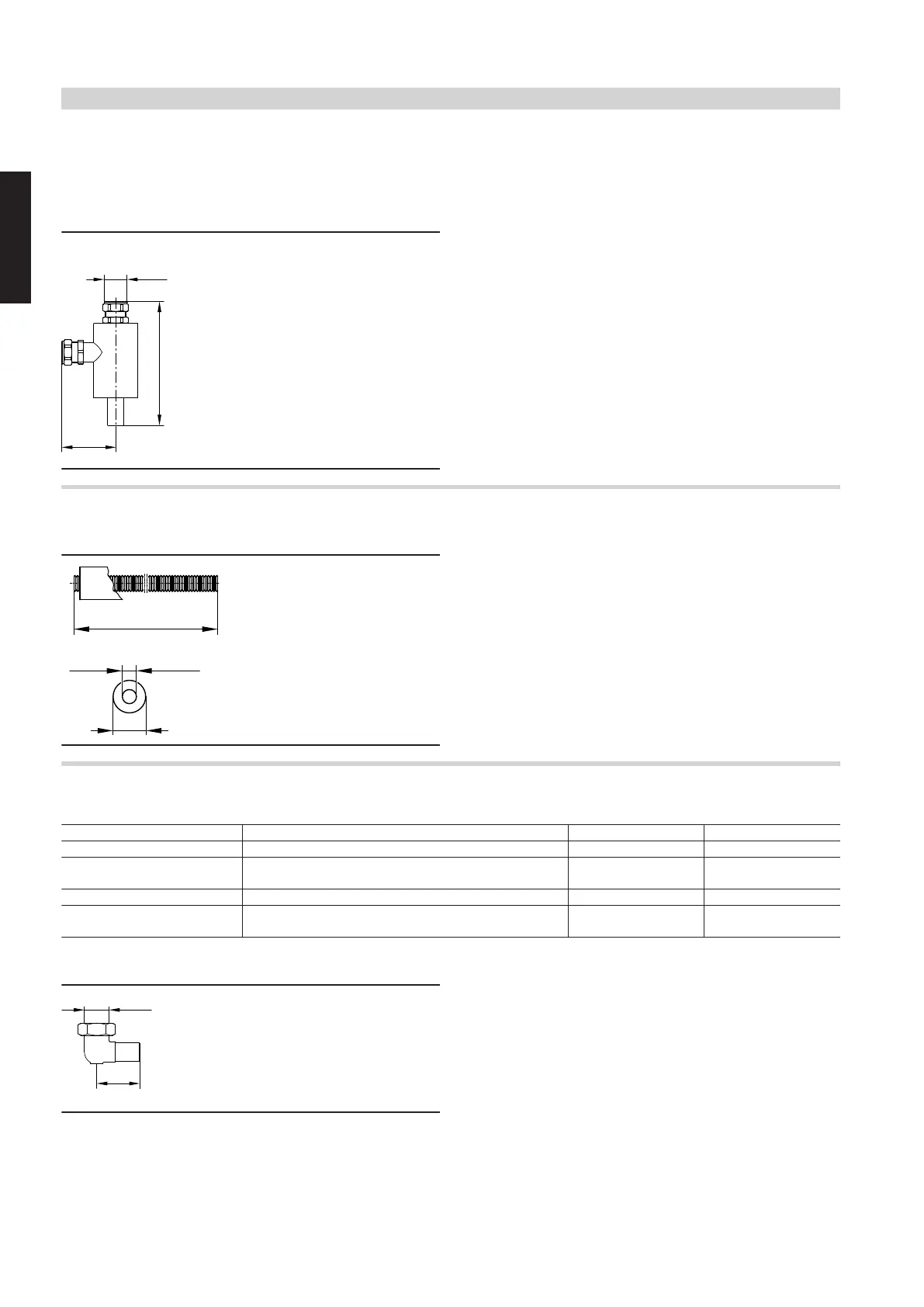

8.2 Hydraulic accessories

Connecting tee

Part no. 7172 731

31.5

170

For connecting the expansion vessel or stagnation cooler in the

Solar-Divicon flow line.

With locking ring fitting and double O-ring 22 mm.

Connection line

Part no. 7143 745

16000 / 24000

Ø 46

Corrug. pipe ext. Ø 21.2

For the connection between Solar-Divicon and the solar cylinder.

Stainless steel corrugated pipe with thermal insulation and protective

foil.

Installation kit for connection line

Only required in conjunction with the connection line, part no. 7143 745.

Part no. DHW cylinder a mm b mm

7373 476 Vitocell 300-B, 500 l 272 40

7373 475 Vitocell 100-B, 300 l

Vitocell-300-B, 300 l

190 42

7373 474 Vitocell 100-B, 400 and 500 l 272 72

7373 473 Vitocell 140/160-E

Vitocell 340/360-M

— —

Part no. 7373 473

Components:

■ 2 threaded elbows

■ Gaskets

■ 2 locking ring fittings

■ 8 pipe sleeves

Installation accessories

(cont.)
