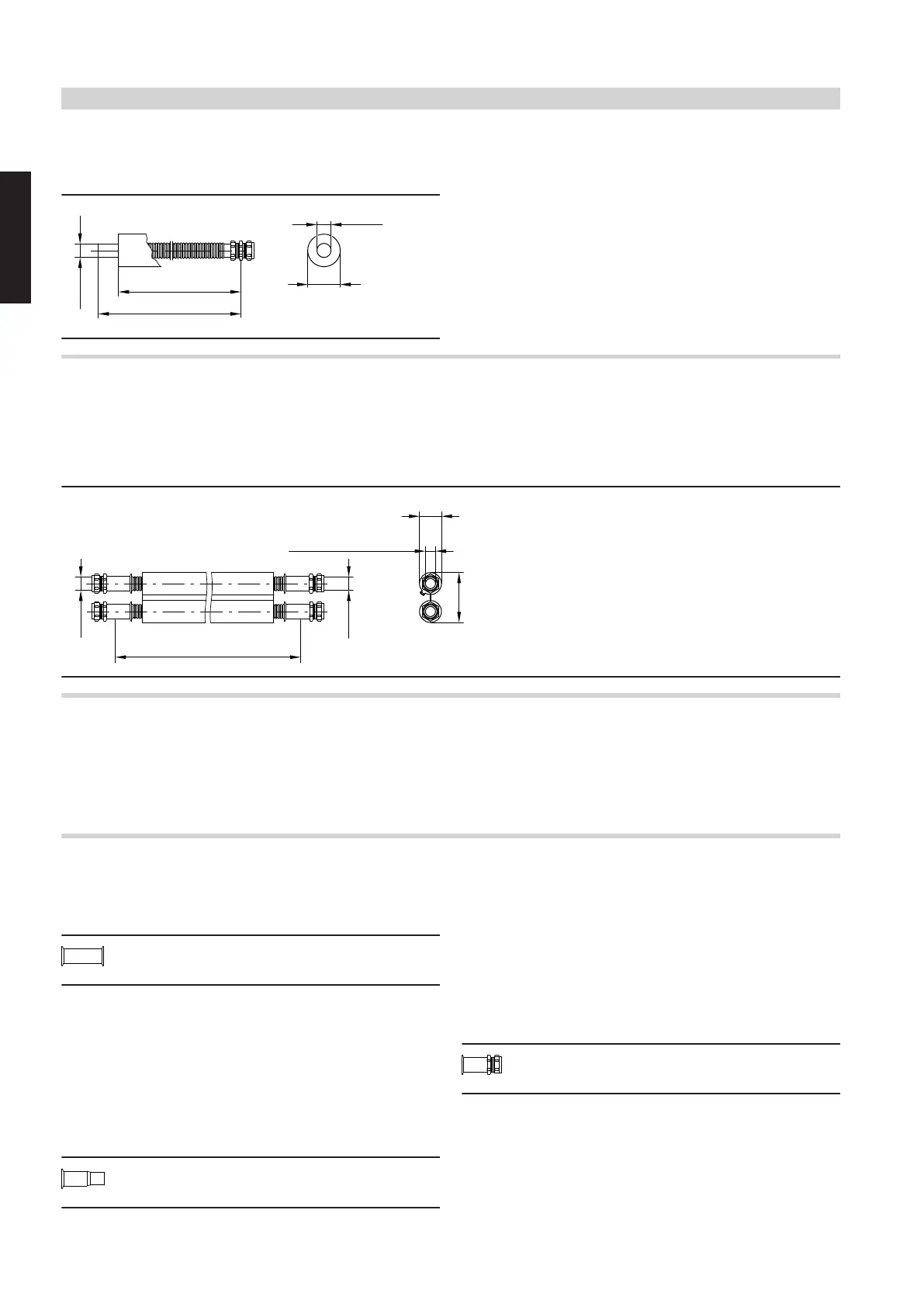

Connecting cable

Part no. 7316 252

Ø 22

1000

970

Ø 46

Stainless steel corrugated pipe with thermal insulation and locking

ring fitting.

Solar flow and return lines

Stainless steel corrugated pipes with thermal insulation and protec-

tive foil, locking ring fittings and sensor lead:

■ 6 m long

Part no. 7373 477

■ 12 m long

Part no. 7373 478

■ 15 m long

Part no. 7419 567

Ø 22

Corrug. pipe int.

Ø 16

6000 / 12000 / 15000

Solar line roof outlet

■ Colour: terracotta

Part no. ZK02 013

■ Colour: black

Part no. ZK02 014

■ Colour: brown

Part no. ZK02 015

For solar flow line and solar return line, for tiled roof cover, 15 to 65°

Pivoting outlet; connection from the bottom, left or right

Connection accessories for residual lengths of solar flow and return lines

Connecting kit

Part no. 7817 370

For extending the connecting lines:

■ 2 pipe sleeves

■ 8 O-rings

■ 4 support rings

■ 4 profile clips

Connection set

Part no. 7817 368

For joining the connection lines to the pipework of the solar thermal

system:

■ 2 pipe sleeves

■ 4 O-rings

■ 2 support rings

■ 2 profile clips

Connection set with locking ring fitting

Part no. 7817 369

For joining the connection lines to the pipework of the solar thermal

system:

■ 2 pipe sleeves with locking ring fitting

■ 4 O-rings

■ 2 support rings

■ 2 profile clips

Installation accessories

(cont.)

VIESMANN

VITOSOL

5822 440 GB
