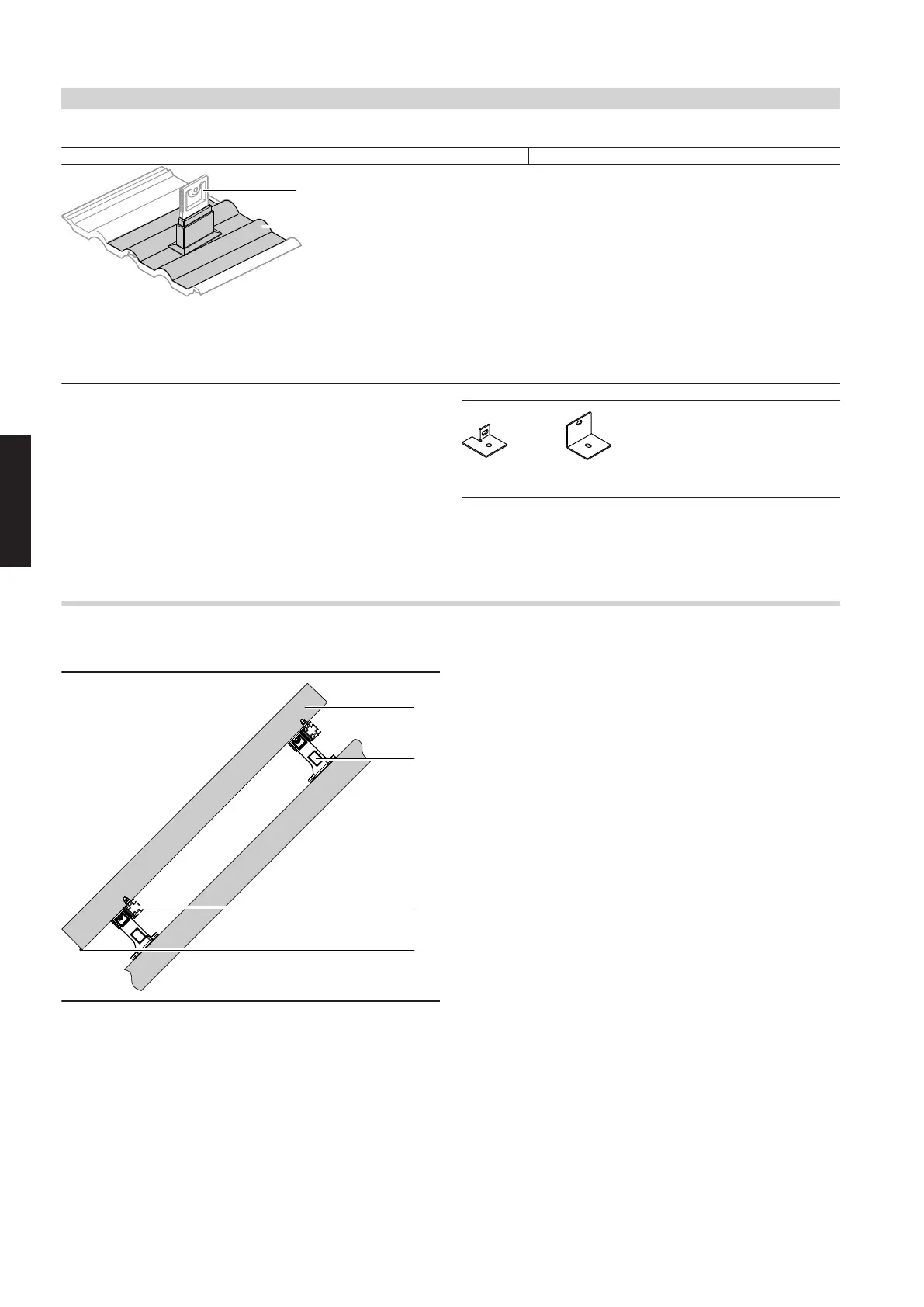

Viessmann Vitocell 360-M - Vitosol-FM;-F Flat-Plate Collectors

Using a plastic replacement tile Adapting the roof tile with an angle grinder
B
G
B
Rafter anchor
G
Seal (fully affixed)
Above roof installation with mounting brackets e.g. on sheet
steel roofs
The fixing system comprises:
■ Mounting brackets
■ Mounting rails
■ Clamping brackets
■ Screws
The mounting brackets are secured with screws to the on-site sup-
port elements which are matched to the individual sheet steel roof.
Mounting rails are fitted directly to the mounting brackets.
1 2
1
Vitosol-TM, for vertical installation
2
Vitosol-TM, for horizontal installation
Vitosol-FM/-F, for vertical and horizontal installation
Vitosol-FM/-F flat-plate collectors
Vertical and horizontal installation
A
B
C
D
A
Collector
B
Rafter anchor
C
Mounting rail
D
Mounting plate
Design information regarding installation on pitched roofs — above roof installation
(cont.)
100
VIESMANN
VITOSOL
10
5822 440 GB
