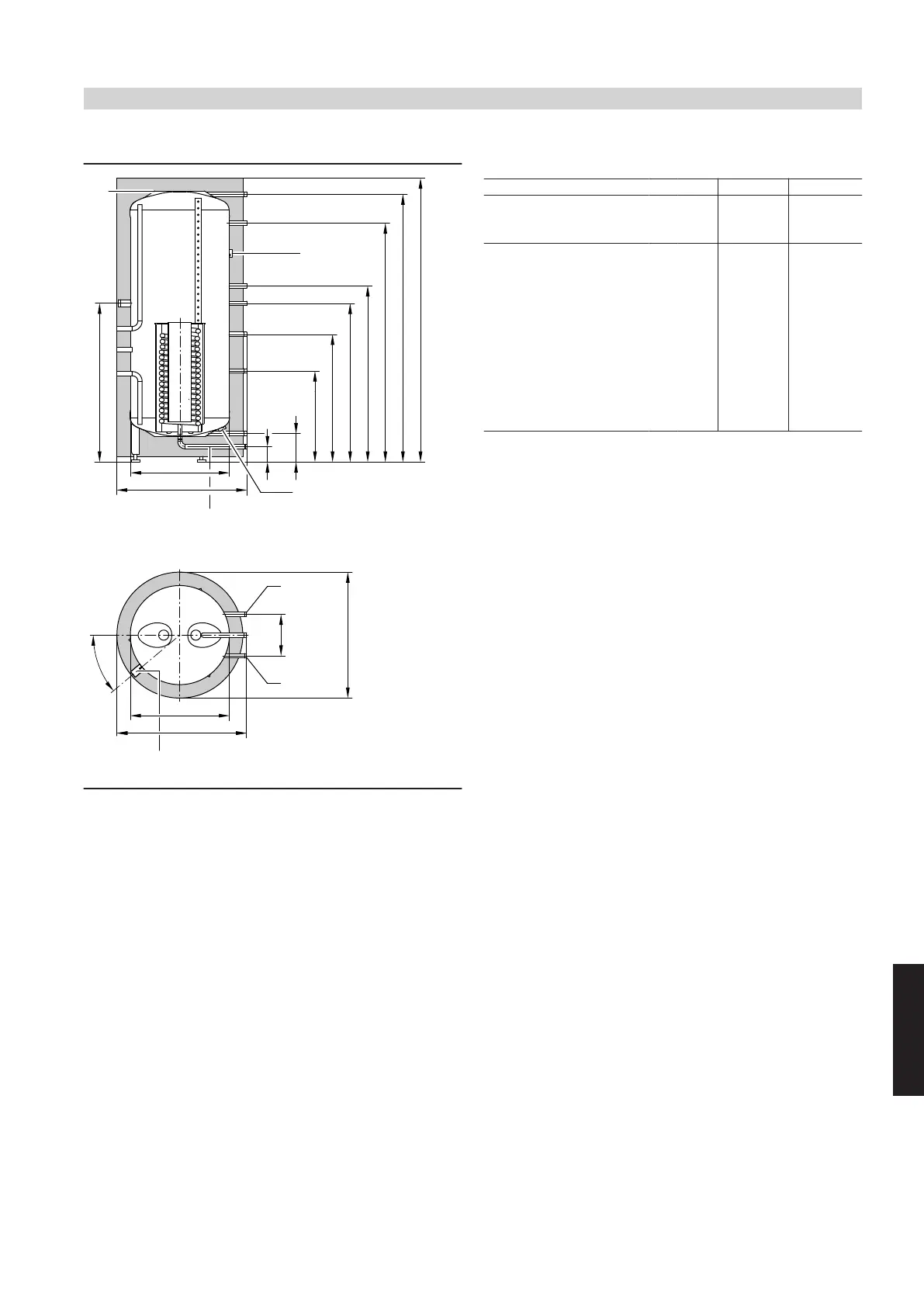

Vitocell 160-E, type SESB, 750 and 950 l
TH
l
m
k
h
g
e
d
n
HV1/EL
HV3/TR3
HR4/E
HVs/HRs/ELs
ELH
c
p
b
HV2/TR1
HR2/TR4
HR3/TR5
ELH
a
HRs
HVs/ELs
o
b
o
TH
TH
HV3/TR2
f
40°
E Drain
EL Air vent valve
EL
s
Solar indirect coil, air vent valve
ELH Female connection for immersion heater EHE (Rp 1½)
HR Heating water return
HR
s
Heating water return, solar thermal system
HV Heating water flow
HV
s
Heating water flow, solar thermal system
TH Retainer for thermometer sensor or additional sensor (clamp-
ing bracket)
TR Clamping system for securing immersion temperature sensors
to the cylinder jacket. Retainers for 3 immersion temperature
sensors per clamping system
Dimensions
Cylinder capacity l 750 950
Length (7)
a mm 1064 1064
Width b mm 1119 1119
Height c mm 1900 2200
d mm 1777 2083
e mm 1559 1864
f mm 1180 1300
g mm 1039 1159
h mm 676 752
k mm 386 386
l mm 155 155
m mm 75 75
n mm 1010 1033
o mm 370 370
Length (7) excl. thermal in-
sulation
p mm 790 790
DHW cylinders
(cont.)
