Viessmann Vitocell 360-M - Page 79

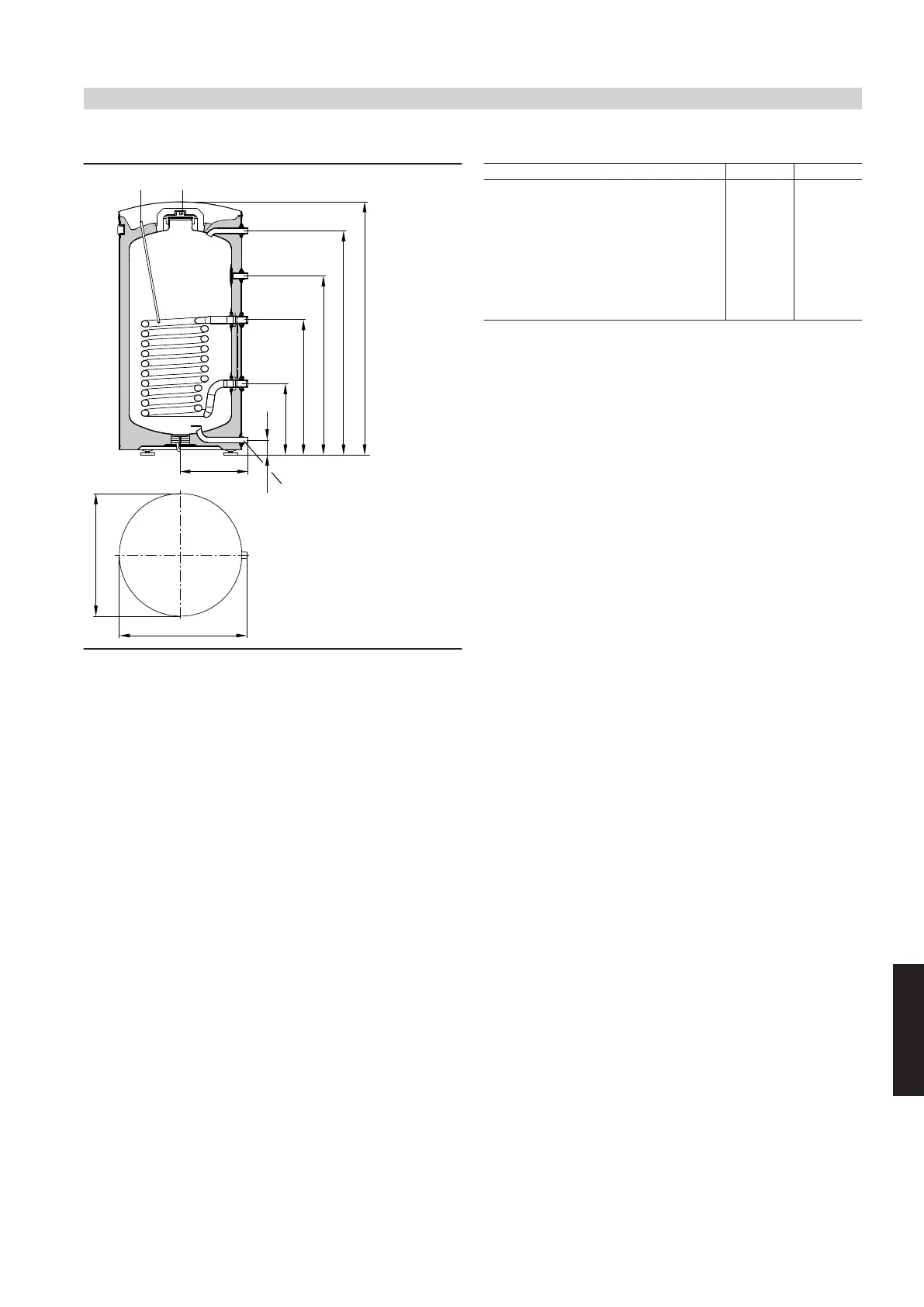

160 and 200 litre capacity
h
a
b
BÖ
d
g
KW/E
HV
WW
Z
f
e
c
HR
i
SPR
BÖ Inspection and cleaning aperture
E Drain
HR Heating water return
HV Heating water flow
KW Cold water
SPR Sensor well for cylinder temperature sensor or temperature
controller (internal diameter 7 mm)
WW DHW
Z DHW circulation
Cylinder capacity l 160 200
a mm 581 581
b mm 605 605
c mm 1189 1409
d mm 1055 1275
e mm 843 885
f mm 635 635
g mm 335 335
h mm 70 70
i mm 317 317
DHW cylinders
(cont.)
VITOSOL
VIESMANN
79
5822 440 GB
7
