148BASICSERVICE

W2033378

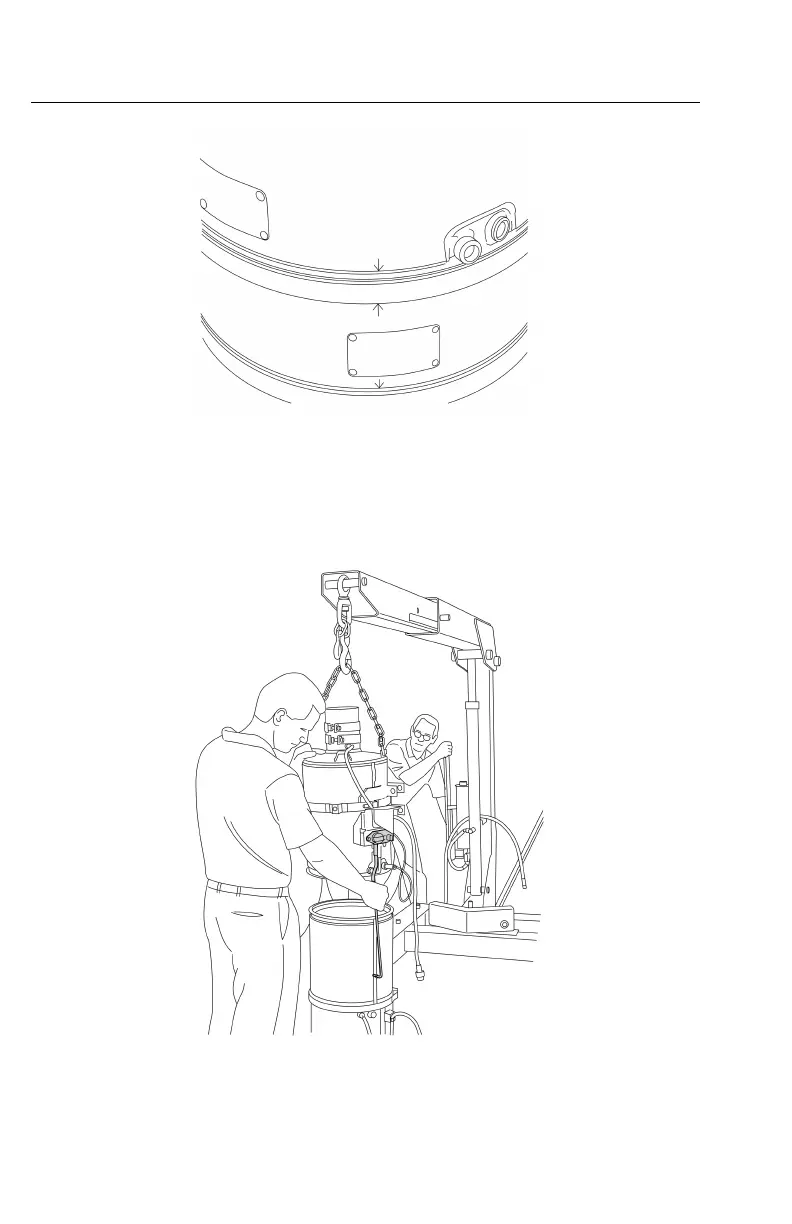

5.Usingamarker,makealignmentmarksoneachofthemodulesections,above

andbeloweachV-bandclamp.

6.Removethepressuredifferentialtubefromthecatalyticltermodule.

7.RemovetheV-bandclampjoiningtheoutletmoduletotheltermodule.

W2033384

8.Withanassistantandasuitableliftingdevice,removetheoutletmodulefrom

theDPFltermodule.

9.RemovetheV-bandclampjoiningtheDPFltermoduletothecatalyticlter

module.
