Volvo EPA2007 D13F

To Next Page

To Previous Page

SPECIFICATIONS27

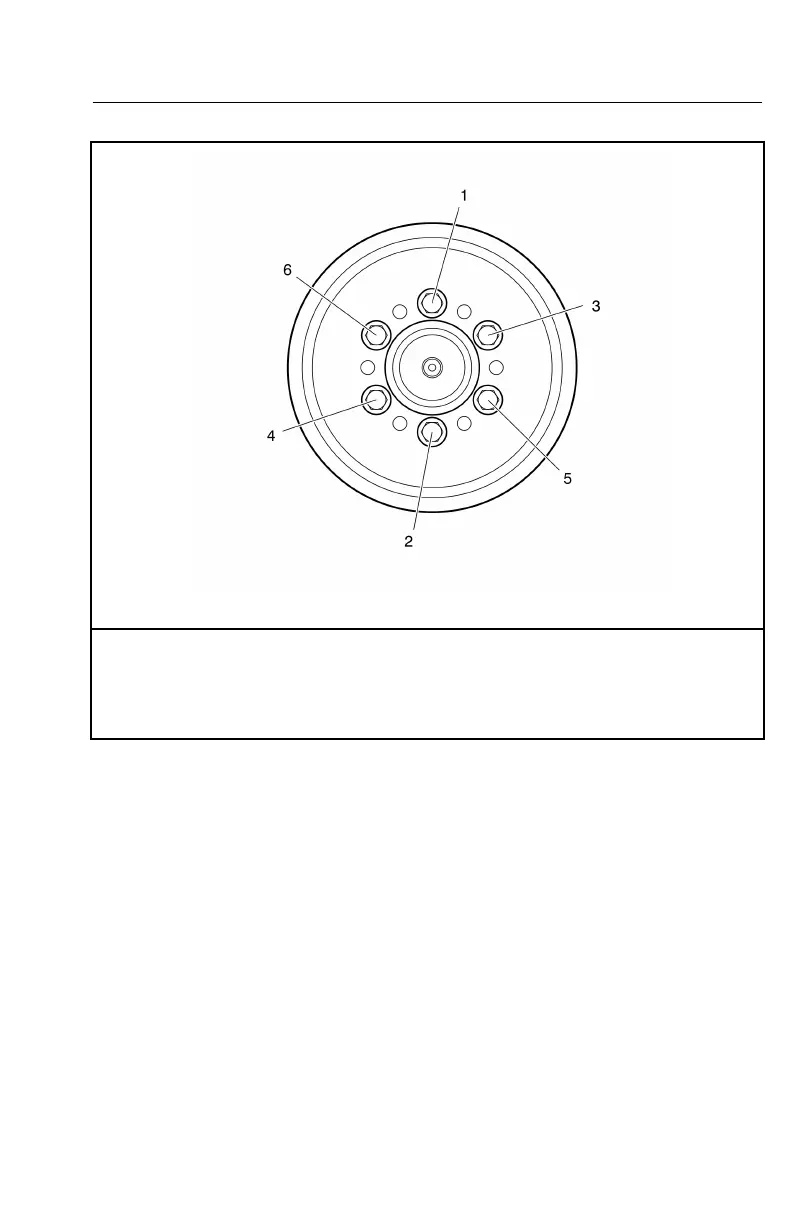

CrankshaftVibrationDamper

T2022730

Step1........................................................................................35±5Nm(26±4ft-lb)

Step2......................................................................................90±10Nm(66±7ft-lb)

Note:Tightentheboltsinthenumericalorder1,2,3,4,5,6,1.

Thevibrationdamper8.8boltsshouldnotbereused.
