Mobile Generator ECM Background Information
wc_tx000713gb.fm 43
4.10 Removing and Installing the ECM

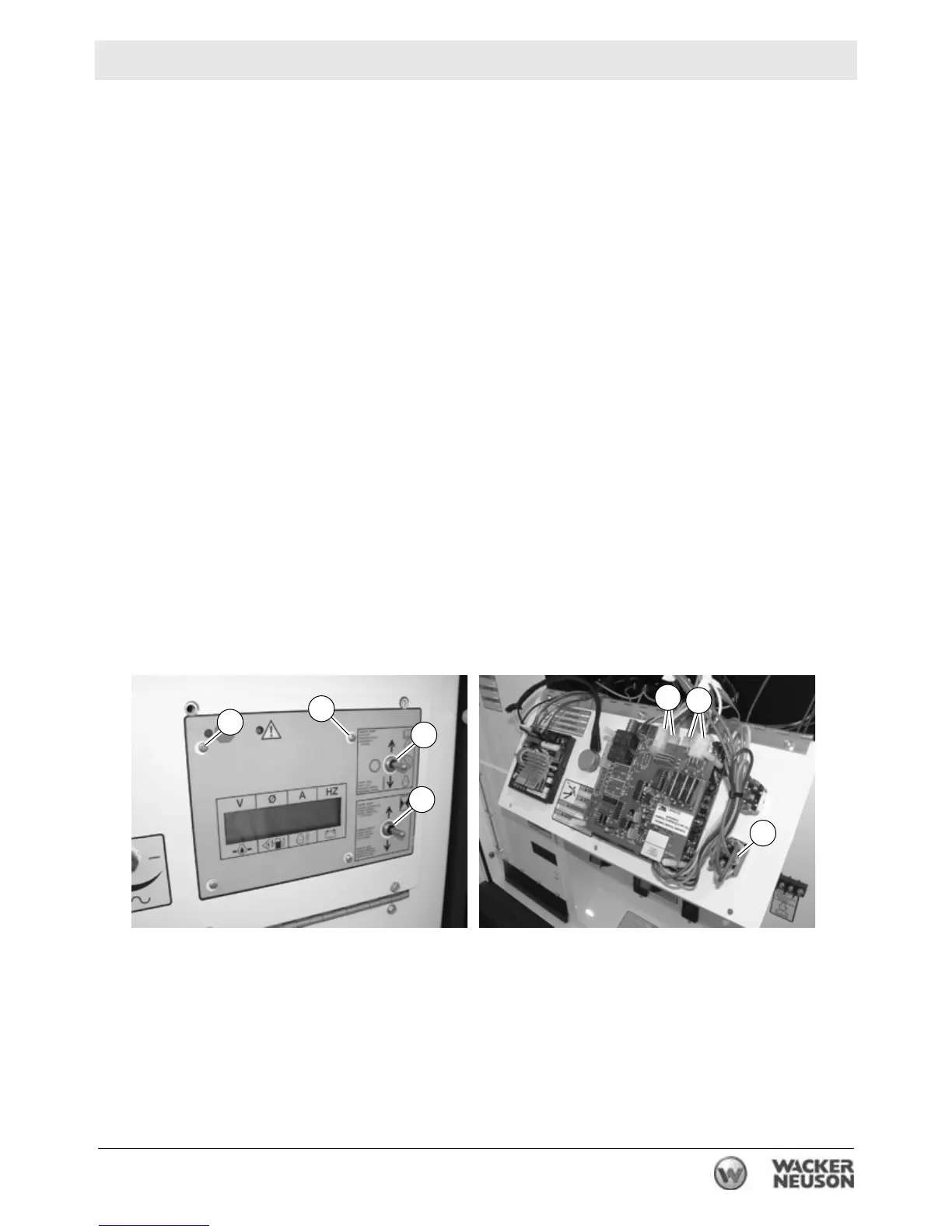

See Graphic: wc_gr003316
Removal:
4.10.1 Remove the nut securing the hour meter switch (a) and the nut
securing the start switch (b) to the panel.
4.10.2 Disconnect the four harness plugs (e).
4.10.3 Remove the three red wires (d) from the start switch. Remove the start
switch, the hour meter switch, and the ECM from the panel.
Note: Replacement ECMs include start and hour meter switches.
4.10.4 Remove the screws (c) securing the ECM to the panel.
Installation:
4.10.5 Secure the ECM to the panel with screws (c).
4.10.6 Secure the hour meter (a) and the start switch (b) to the control panel.
4.10.7 Reconnect the four harness plugs (e).
4.10.8 Re-install the three red wires (d) to the start switch.
wc_gr003316
c
c
b
d
e
e
a
