Wacker Neuson G 85 Repair Manual

Engine Starting Troubleshooting G 85
wc_tx000678gb.fm 64

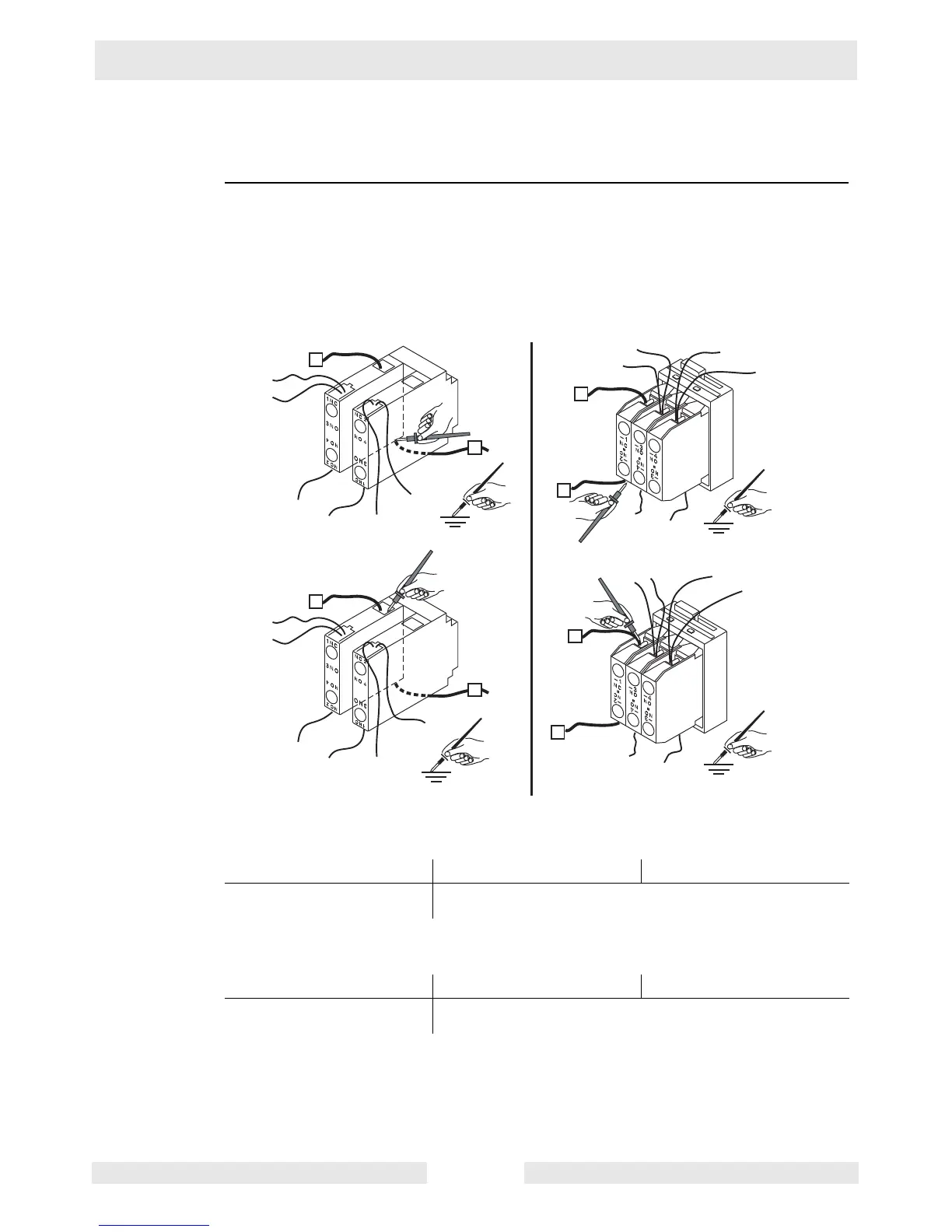

7.3 Checking the Emergency Stop Switch
Prerequisites  Generator shut down
 Battery voltage measuring 11–13VDC
Procedure Follow the procedure below to check the emergency stop switch.
1. Place the emergency stop switch in the de-activated (out) position.
2. Place the START/RUN switch in the ON position.
3. Check the connections of the wiring to the emergency stop switch. Make sure all con-
nections are tight.
4. Check the voltage between violet wire #64 and ground at the switch.
Is at least 9.8 VDC measured?
5. Check the voltage between violet wire #34 and ground at the switch.
Is at least 9.8VDC measured?
The emergency stop switch has now been checked. Continue with Checking the Starter
Relay.
Yes____ No____ Your reading
Continue The emergency stop switch
has failed; replace it.
Yes____ No____ Your reading
The emergency stop switch
is not the problem.
The emergency stop switch
has failed; replace it.
Le vieux style par poussée/torsion
wc_gr003685fr
V
V
#34
V
#34
#64
#64
#44
#44
#45
#20
#20
#61
#46
#79
#61
#46
#79
#45
Le nouveau style symétrique
V
V
V
#34
V
#34
#64
#64
#44
#44
#45
#20
#20
#61
#46
#79
#61
#46
#79
#45
V
