Mobile Generator Disassembly/Assembly
wc_tx000575gb.fm 91

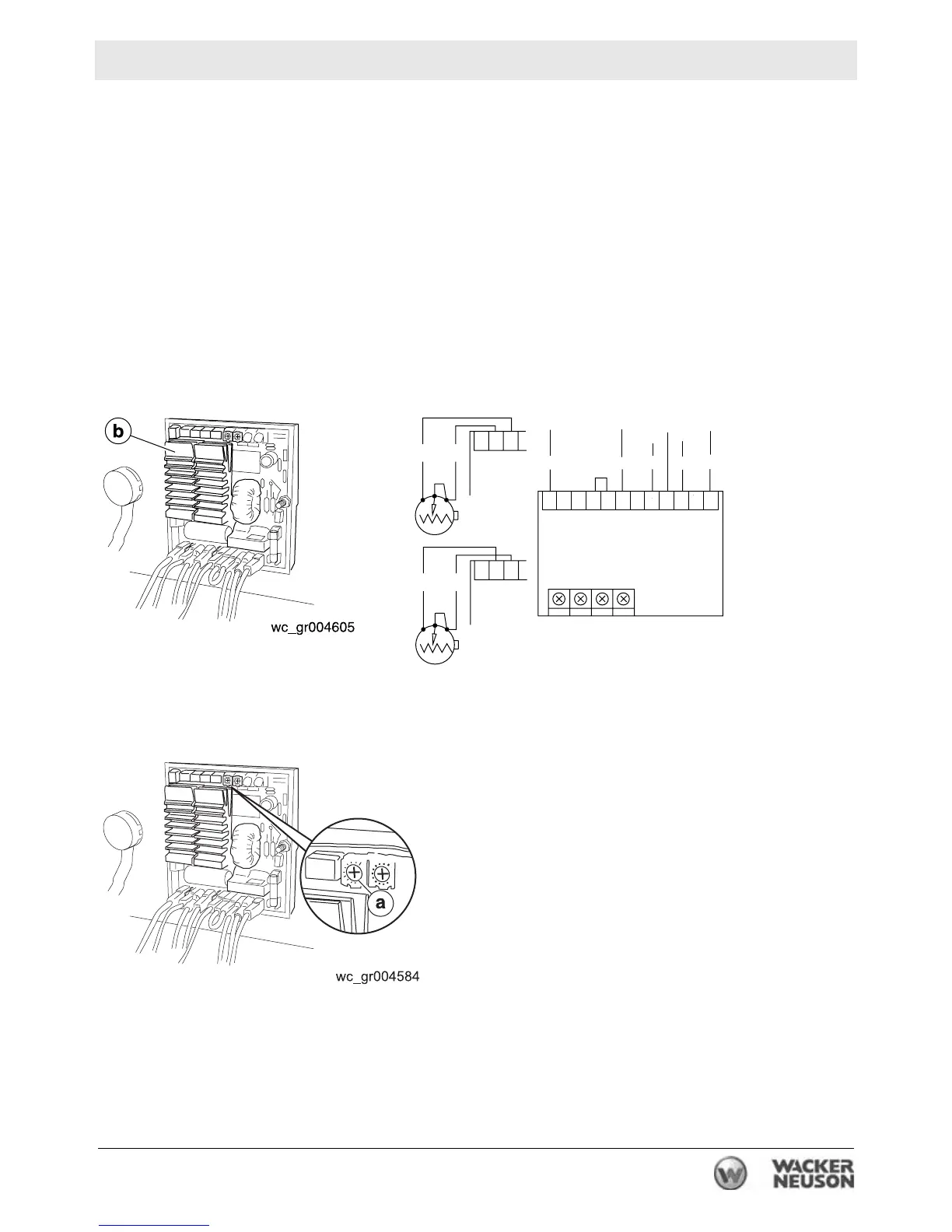

9.9 Installing the AVR
Prerequisites
• Machine shut down
• Multimeter
Procedure
Follow the procedure below to install and set the Automatic Voltage
Regulator (AVR).
9.9.1 Check the function of the voltage adjusting rheostat. See section
Checking the Voltage Adjusting Rheostat.
9.9.2 Mount the AVR
(b) to the machine with the two screws.
9.9.3 Reconnect the wires to the AVR.
9.9.4 Adjust the VOLT pot
(a) on the new AVR counterclockwise as far as
possible.
This procedure continues on the next page.
VOLT
BRGYL
L/W
5C
AMP HZ STAB
5B 7 5A 6 5 4A 4 3A 3 2 1
n/a
n/a
VW
5C5B
7
BW
5C5B 7
wc_gr004583
To Next Page
