9.9.5 Place the voltage selector switch in the 208/120V position.
9.9.6 Never adjust the AVR voltage pot with the voltage selector switch in
any other position. Damage to the generator may occur.

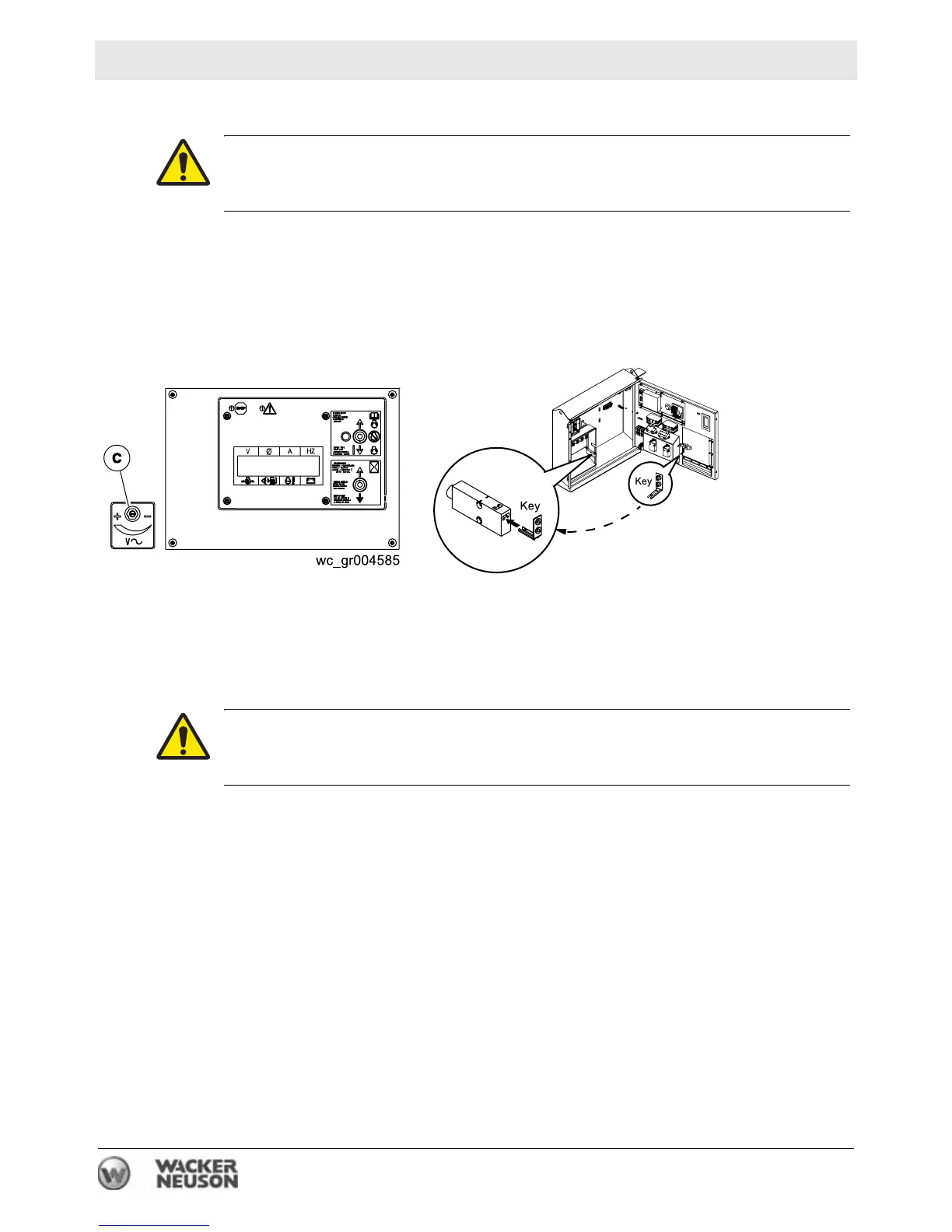

9.9.7 Loosen the lock nut and adjust the voltage adjusting rheostat (c)
clockwise as far as possible.
9.9.8 Open the large hinged panel. Remove the “key” (latch) from the lug
door and place it in the slot of the lug door switch. NOTICE: Never
place anything but the key into the slot of the lug door switch.
9.9.9 Place the main circuit breaker in the ON position.
9.9.10 Start the machine.
NOTICE: Shut down the machine immediately if any load (change in engine rpm) on the generator
is sensed. A change in engine rpm indicates incorrect wiring. Check the wiring.
This procedure continues on the next page.
WARNING Electric shock hazard. Voltage exists at the cooling fins of the AVR
when the engine is running. Electric shock can cause severe injury or death.
f Never touch the cooling fins when the engine is running.
WARNING! Electric shock hazard. High voltage exists at the lugs when the engine
is running. High voltage can kill or cause severe injury.
f Never touch the lugs when the engine is running.
wc_gr004587
To Next Page
