Mobile Generator ECM Background Information
wc_tx000713gb.fm 25
4.2 Normal Boot-up Sequence
During the boot-up sequence, the ECM scrolls through several
screens before it settles into displaying the run screen. There are two
different boot-up sequences depending on size of the generator and
options included on the generator. Both of the boot-up sequences are
listed below. When checking the boot-up sequence of your generator,
be sure you are checking the one that matches your generator.

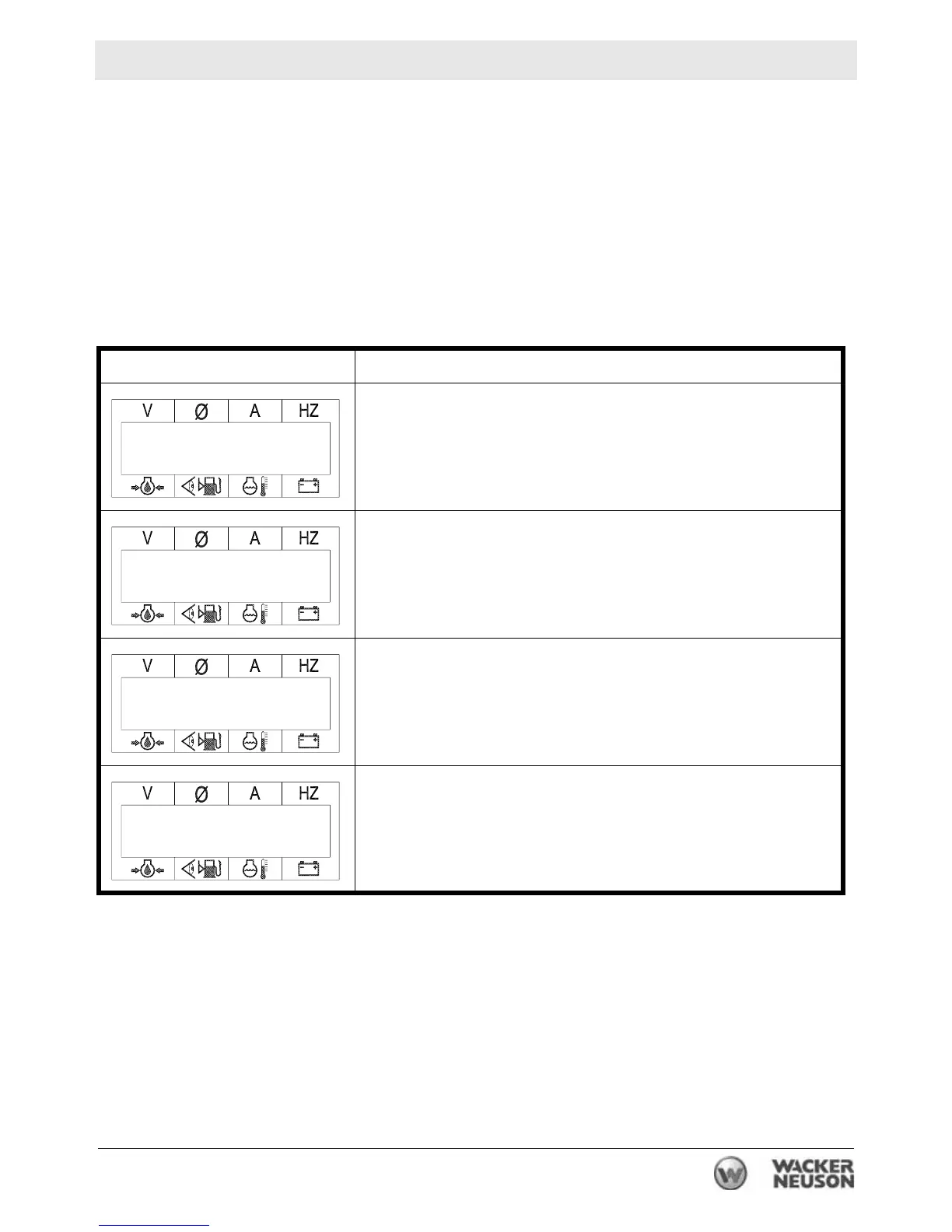

G 25, G 50, G 70, G 85 (9310)
ECM Display Description
Start of the boot-up sequence. The ECM shows that the
glow plugs are on. The LED near the stop icon also illu-
minates. Note that the glow plugs are only on during the
first of the three starting cycles.
The ECM displays this screen when the starter is crank-
ing the engine.
The ECM displays the countdown time, in hours, until the
next scheduled service. The timer starts at 250 and
counts down to 0.
At this point, the ECM displays the running values of the
generator.
Note: The ECM display scrolls through each phase (P1,
P2, P3) if in the 3-phase mode, or L1, L3, and L1 + L3 if
in the single-phase mode.
Glow Plugs
On
Starting Engine
Time to Service
250
480 P2 0 61.5
71 75% 87 12.7
