Disassembly/Assembly Mobile Generator
94 wc_tx000575gb.fm
Continued from the previous page.

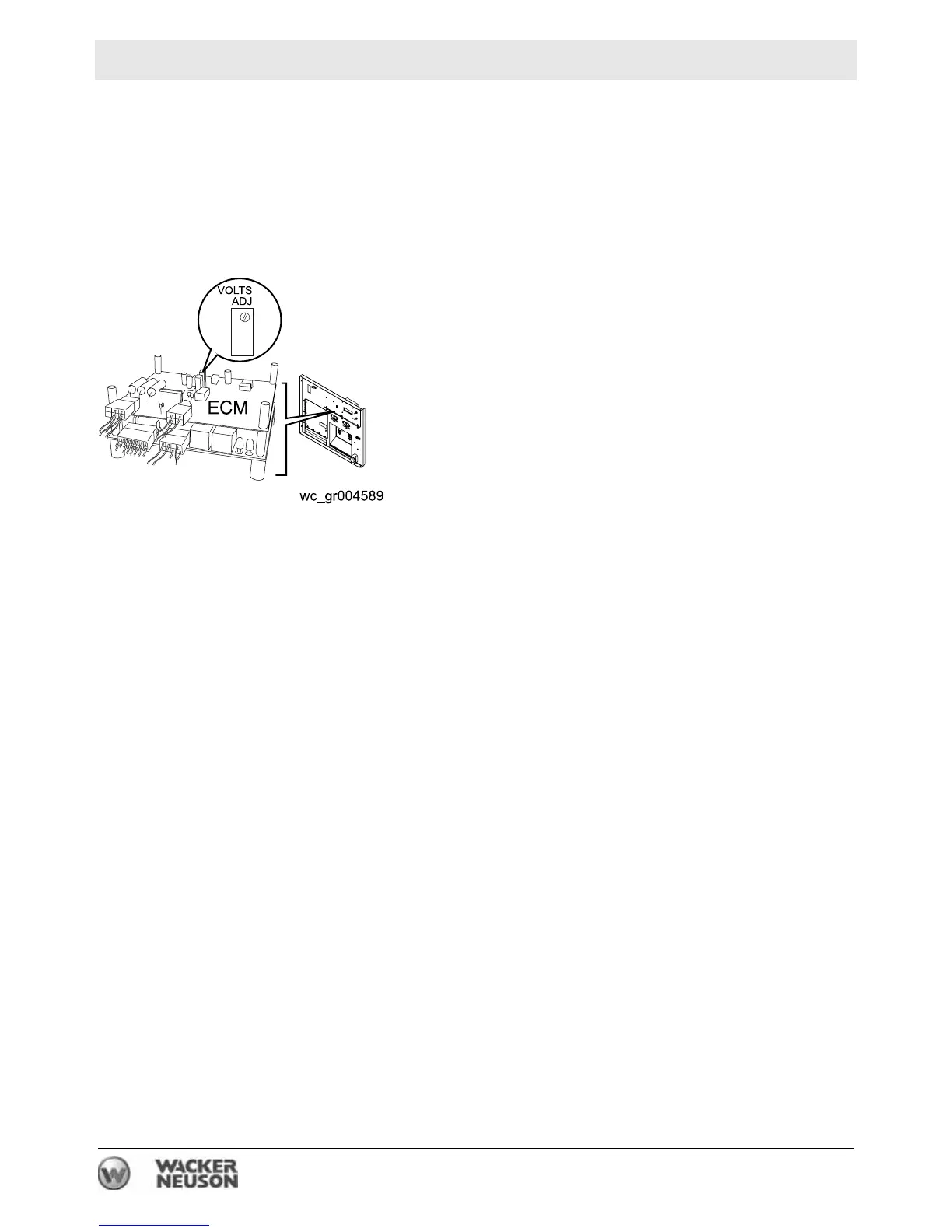

9.9.17 Check the consistency between the voltage measured at the lugs by
the multimeter and that shown on the ECM display. If the ECM display
is off by more than 2%, adjust the VOLT pot on the ECM so that the
ECM display matches the reading on the multimeter.
NOTICE: Only adjust the ECM pot when the voltage selector switch is in the
480/277V position.
9.9.18 Shut down the machine.
9.9.19 Re-install the “key” (latch) to the lug door.
9.9.20 Close the large access panel and secure it with two screws.
The procedure to install and set the AVR is now complete.
