Transportation
Flip-up Tongue 5.7
33
[en-US] | 02/2023 | 5100065071 | LTV 4L/6L | Operator’s Manual

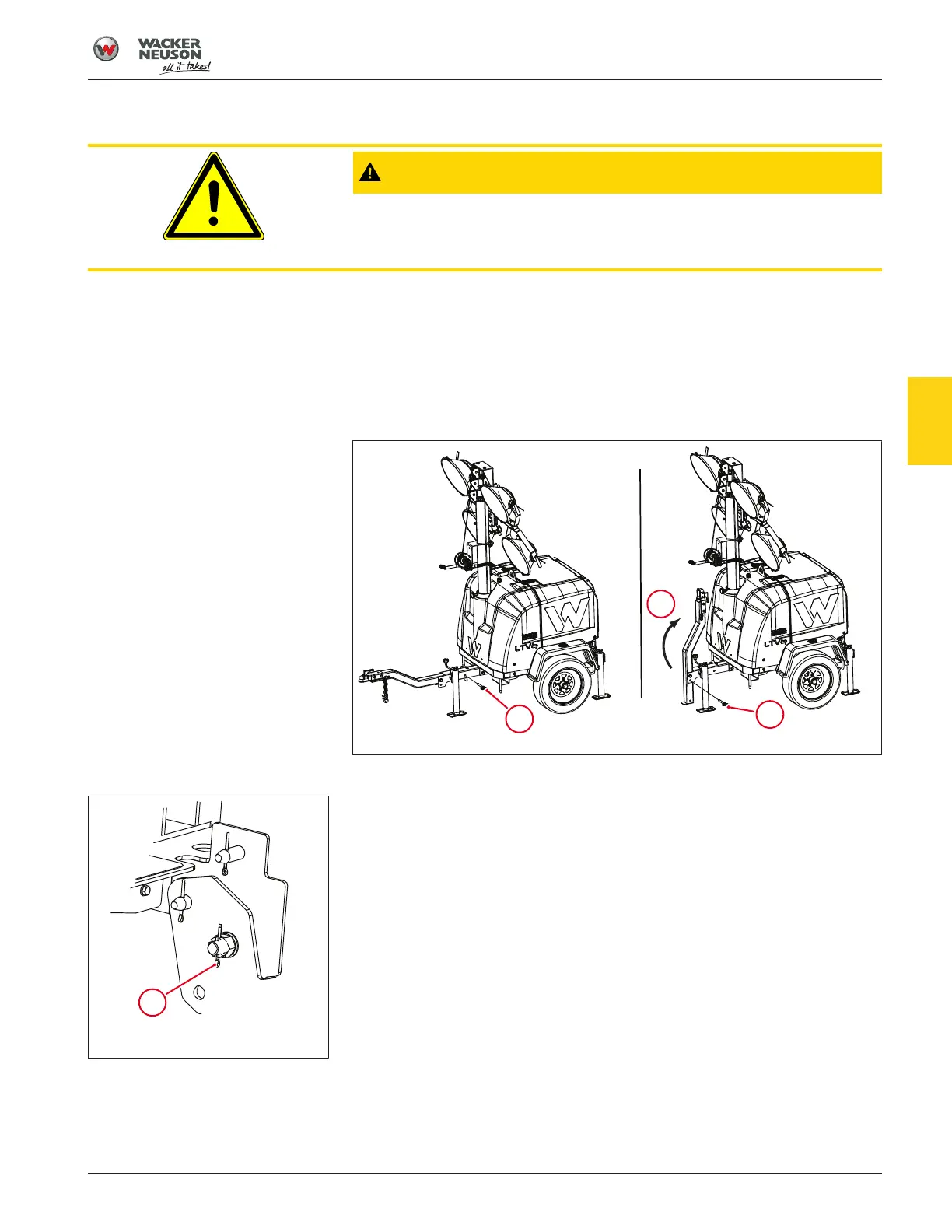

5.7 Flip-up Tongue
CAUTION
Pinching and crushing hazard
To avoid possible injury, keep fingers away from the pivot point when lower-
ing or raising the trailer tongue.
Background
The flip-up tongue allows the machine to be transported or stored in a
smaller space than a machine with a conventional tongue.
Procedure
1. Remove the pin behind the tongue jack (1).
wc_gr014009
1
2
3
Fig.6: Raising the flip-up tongue
2. Rotate the tongue into the storage position (2) and insert the pin (3).
wc_gr014010
4
Fig.7: Cotter pin
3. Install cotters (4) in all the pins.
Towing
Reverse the procedure when preparing the tongue for towing.
