Commissioning
Installing the Fenders 6.4
37
[en-US] | 02/2023 | 5100065071 | LTV 4L/6L | Operator’s Manual
3. Install the axle on the trailer using the following hardware from bag 1:
ð Four M12 x 45 screws (2)
ð Eight flat washers (3)
ð Four lock nuts (4)
4. Tighten the M12 x 45 screws to a torque of 115Nm(85ft.lbs.).
6.4 Installing the Fenders
Materials needed
• Two fenders
• Hardware bag 2
Installing the fenders
1. Locate the two fenders (1) and hardware bag 2.
wc_gr014360
1
2
3

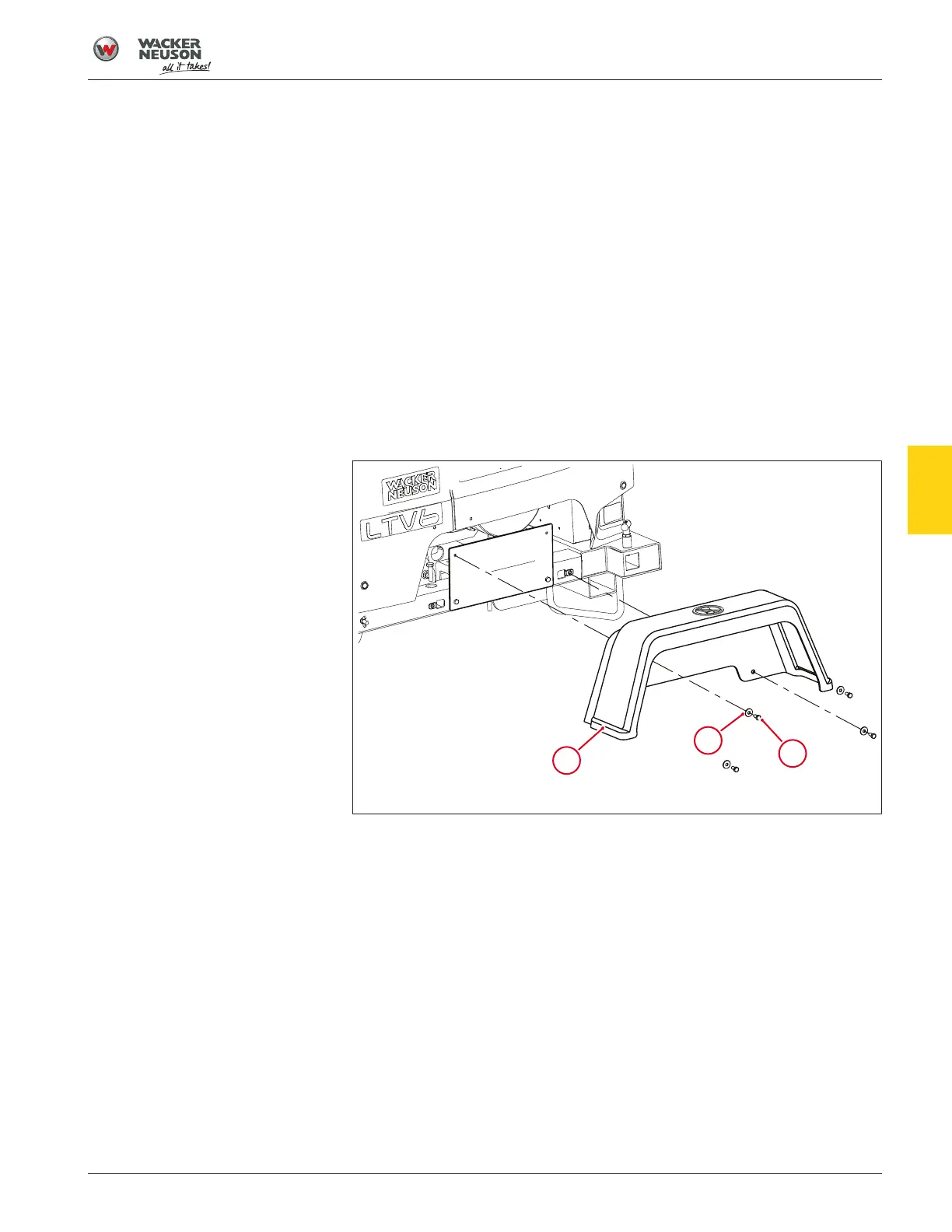

Fig.10: Installing the fenders
2. Align each fender as shown.
3. Install both fenders on the light tower using the following hardware from
bag 2:
ð Eight flat washers (2)
ð Eight M8 x 25 screws (3)
4. Tighten the M8x25 screws to a torque of 16Nm(11.5ft.lbs.).
6.5 Installing the Wheels
Materials needed
• Two wheels
• Hardware bag 3
