Commissioning
6.6 Installing the Outriggers and Swivel Jacks
38
Operator’s Manual | LTV 4L/6L | 5100065071 | 02/2023 | [en-US]
Installing the wheels
1. Locate the two wheels (1) and hardware bag 3.
wc_gr014376
1
2

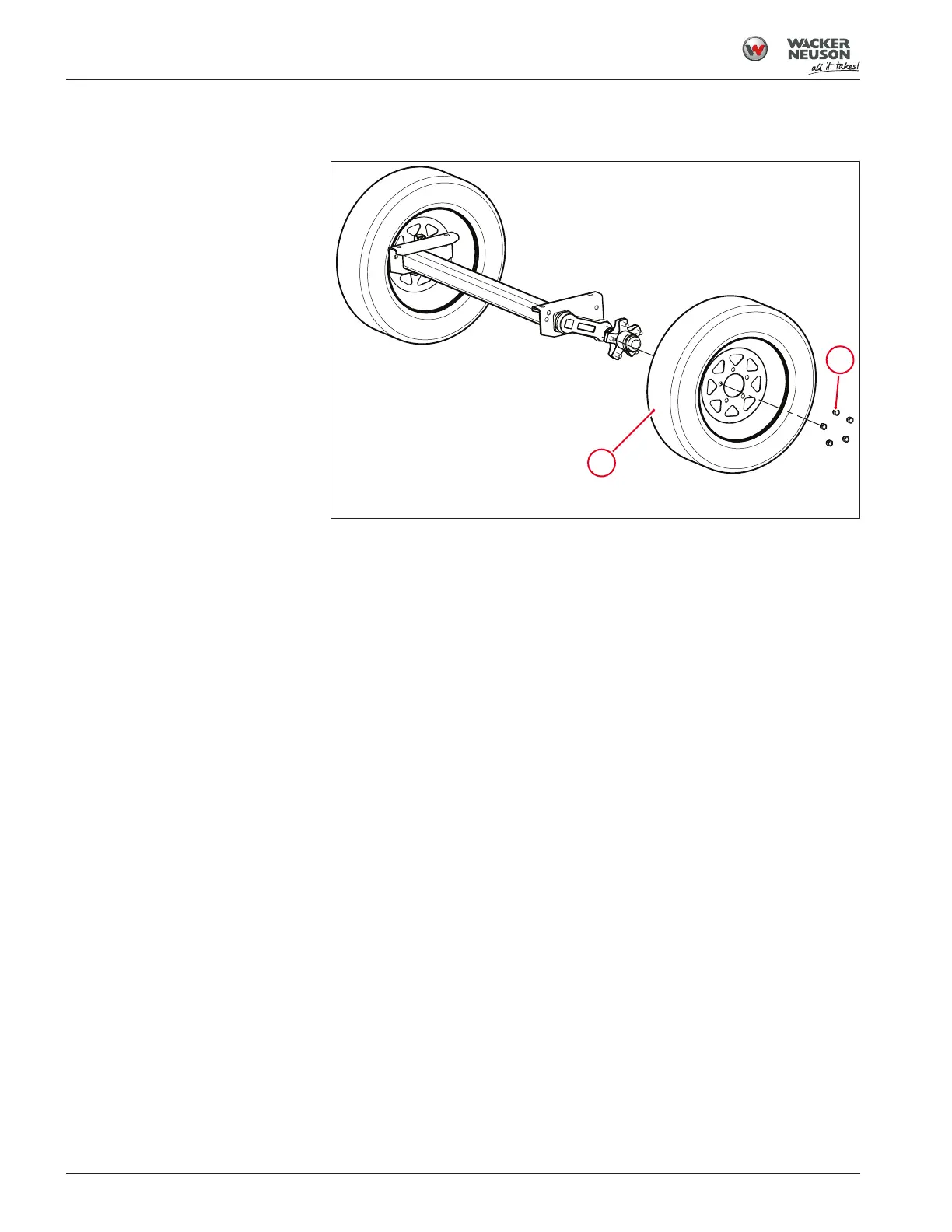

Fig.11: Installing the wheels
2. Attach the wheels to the axle using five lug nuts (2) per wheel.
3. Tighten the lug nuts in a star pattern to a torque of 115Nm(85ft.lbs.).
6.6 Installing the Outriggers and Swivel Jacks
Materials needed
• Two outriggers
• Two swivel jacks
Installing the outriggers
1. Locate the locking pin (1) at the outrigger socket (2).
