Commissioning
6.11 Installing the Light Support Bracket and Light Bar
46
Operator’s Manual | LTV 4L/6L | 5100065071 | 02/2023 | [en-US]
4. Tighten the nut on the winch cable retainer to a torque of 10Nm
(7.5ft.lbs.).
5. Rotate the power winch clockwise to take up any slack in the winch ca-
ble, if needed.
wc_gr014474

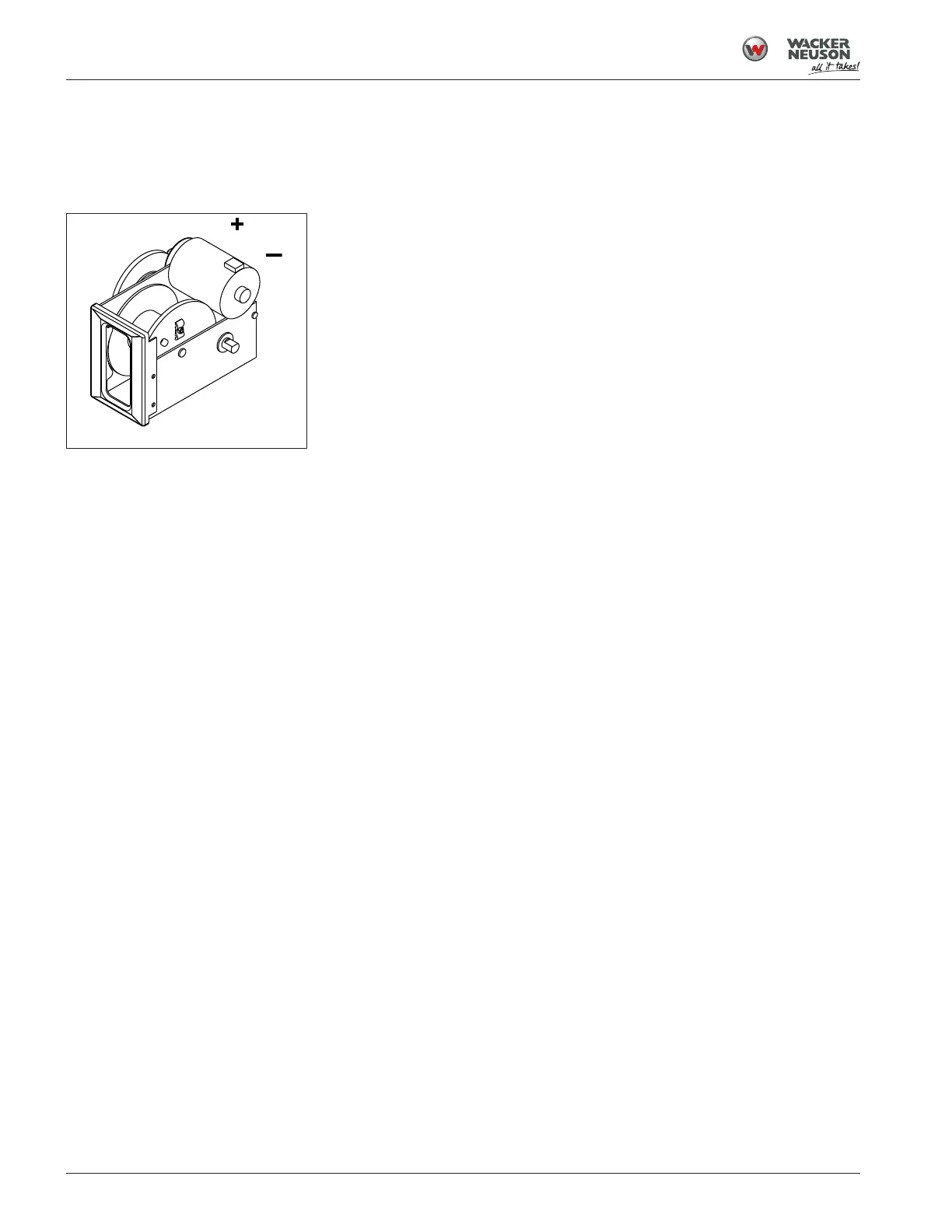

Fig.21: Wire connections
Wiring the power winch
1. Attach red wire 42 from the machine to the red (positive) wire of the
power winch.
2. Attach black wire 41 from the machine to the to the black (negative)
wire of the power winch.
3. Replace the cover on the power winch.
6.11 Installing the Light Support Bracket and Light Bar
Materials needed
• Light support bracket and light bar from mast assembly
• Hardware bag 5
Installing the light support bracket and light bar
1. Secure the light support bracket (1) to the light mount bracket (2) with
two M8x25 serrated flange screws (3) and two M8 lock nuts (4).
Tighten the M8x25 serrated flange screws to a torque of
24Nm(18ft.lbs.).
