Lowering the tower using the power winch
Hold the rotary switch (2) in the DOWN position (“cable out” direction) until
the tower is completely lowered.
7.4 Adjusting the Power Winch Clutch

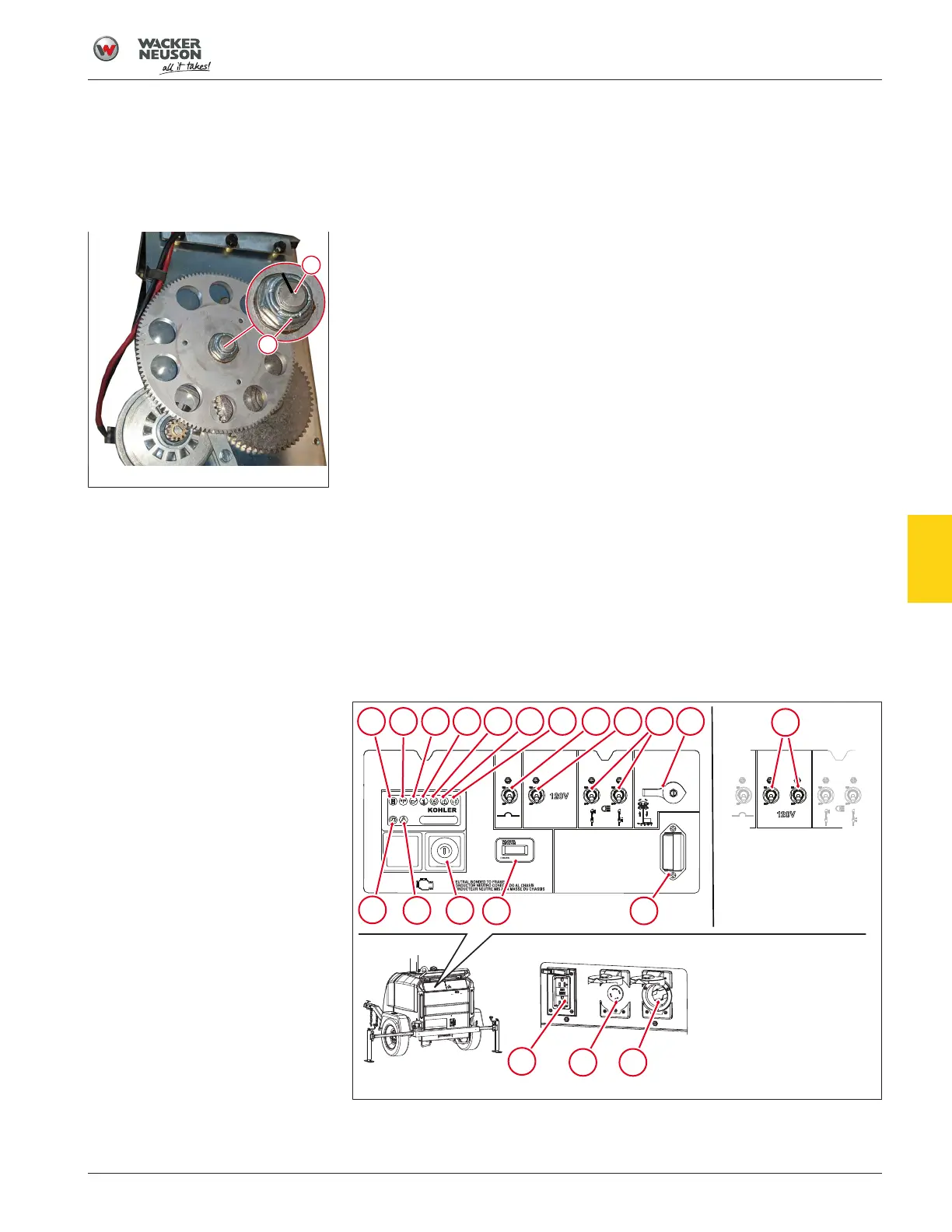

Fig.32: Power winch clutch
1. Verify that the tower is in the completely down position.
2. Remove the winch cover. Note the location of the left and right side
screws for reassembly as they are different.
3. Mark the position of the clutch adjustment nut to stud(1) to aid in ad-
justment.
4. WARNING!All nut adjustments must only be made when the tower is
completely down.
5. Tighten the nut (2) in 1/12th turn increments and attempt to raise the
tower after each adjustment until the winch clutch does not slip until the
end of travel is reached. Verify that the clutch slips at end of travel.
ð When properly adjusted, at the end of travel, the sound of the winch
motor changes, and the clutch engages. When releasing the switch,
the main gear counter-rotates approximately 1/8th turn, and the
winch brake engages, holding the tower at full extension.
6. Lower the tower.
7. Replace the winch cover, returning the unit back to its original configu-
ration.
7.5 Control Panels and Receptacles—Kohler
1 2 3 4 5 6 7 8 9 10 11
12
13
14
15
16 17
18
19
20
Fig.33: Control panels and receptacles
