Wacker Neuson LTV 4L User Manual

Commissioning
6.8 Installing the Mast
42
Operator’s Manual | LTV 4L/6L | 5100065071 | 02/2023 | [en-US]
6.8 Installing the Mast
Materials needed
• Mast assembly
• Hardware bag 5
Installing the mast
1. Attach the light mount bracket (1) with two M16x40 serrated flange
screws (2) and two M16-10.9 serrated flange nuts (3) at the top of the
mast.
wc_gr014397
1
2
3
4
5
6
7
8

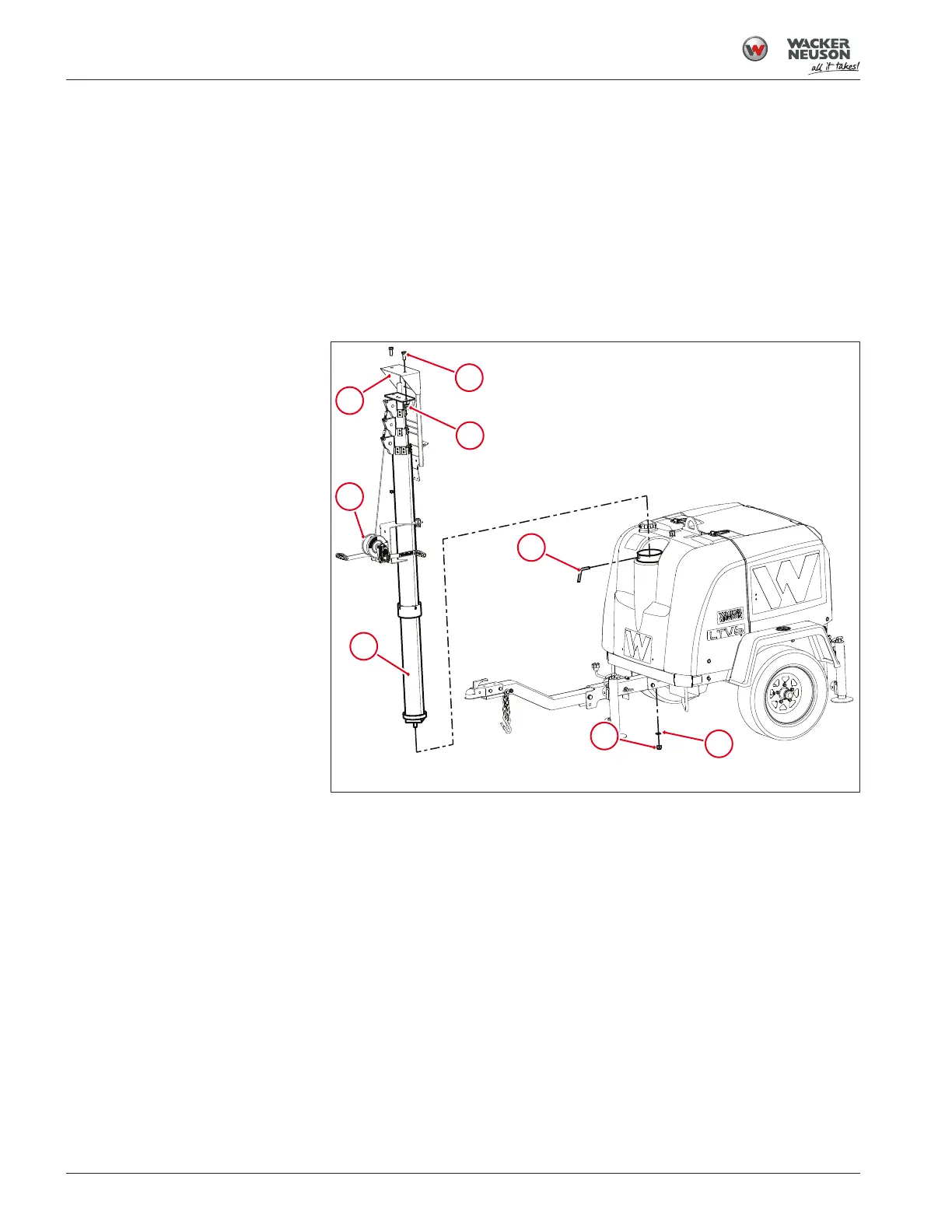

Fig.16: Installing the mast
2. Tighten the M16x40 serrated flange screws to a torque of
200Nm(145ft.lbs.).
3. Attach the standard or power winch (4):
ð The manual winch is shown. For further information, see Installing
the Manual Winch on page 43.
ð The power winch is not shown. For further information, see Installing
the Power Winch on page 44.
4. Align the mast assembly (5) on top of the light tower mast base, as
shown.
5. Use the tower lock pin (6) to align and stabilize the mast assembly.
6. Secure the mast assembly in place with a B21 flat washer (7) and an
M20 lock nut (8).
Note: Tighten the M20 lock nut to secure the mast assembly in place
while allowing the mast assembly to rotate freely.

Wacker Neuson LTV 4L Specifications

General

Brand	Wacker Neuson
Model	LTV 4L
Category	Work Light
Language	English
