Commissioning
Installing the Tongue Assembly 6.7
41
[en-US] | 02/2023 | 5100065071 | LTV 4L/6L | Operator’s Manual
wc_gr014387
5
6
7
8

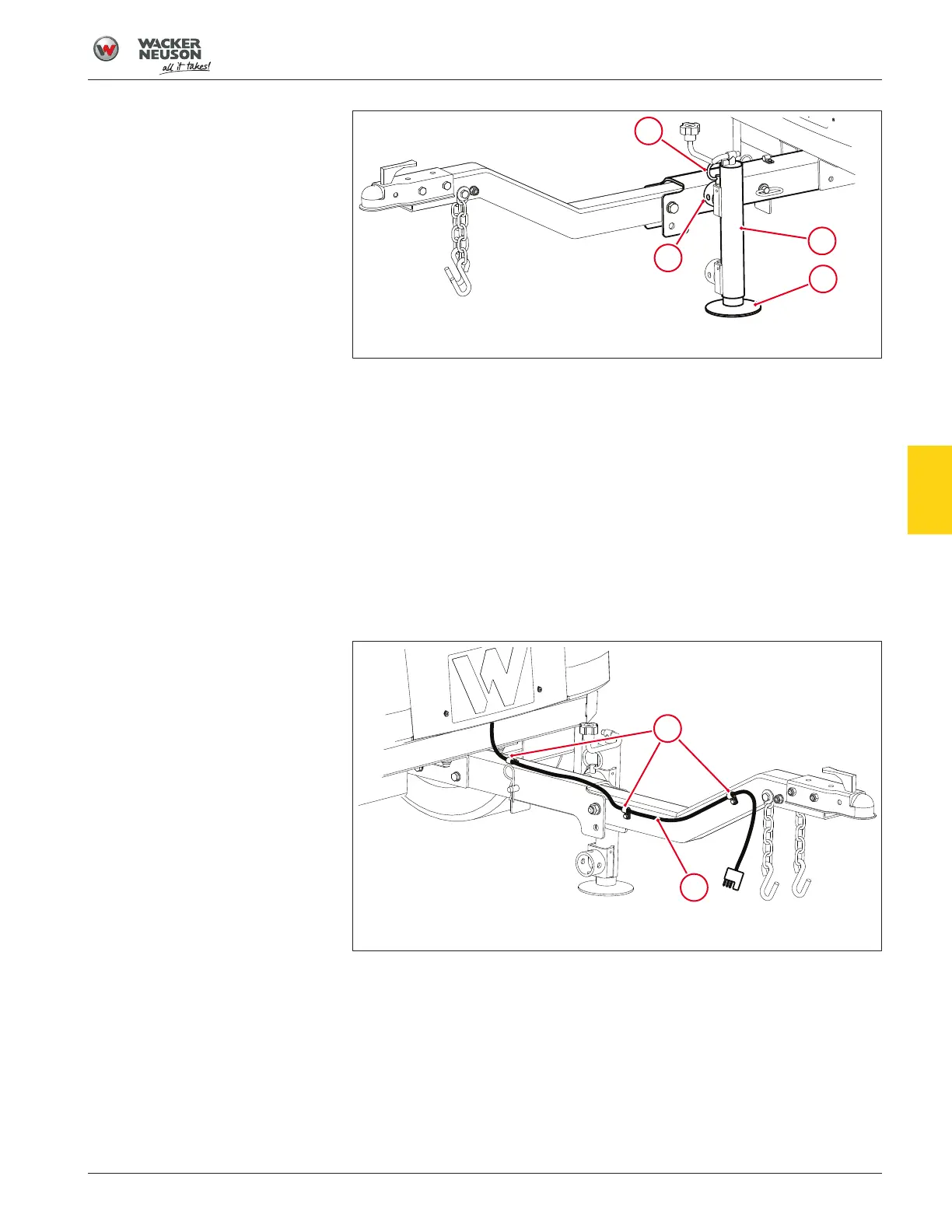

Fig.14: Swivel jack components
2. If necessary, remove the locking pin (6) from the holes in the tongue
jack.
3. Fit the socket (7) of the swivel jack over the circular boss on the tongue
assembly.
4. Rotate the tongue jack so the foot (8) rests on the ground.
5. Align the top hole in the swivel jack socket with the top hole on the cir-
cular boss.
6. Insert the locking pin through the aligned holes (top and bottom) to se-
cure the swivel jack in place.
Routing the tongue harness
wc_gr014473
9
10
Fig.15: Tongue harness and P-clamps
1. Route the tongue harness (9) along the side of the tongue as shown in
the illustration.
2. Tighten screws on the P-clamps (10) until the P-clamps are completely
closed.
6
