6 Commissioning
6.1 Preparing the Machine for First Use
1. Make sure all loose packaging materials have been removed from the
machine.
2. Check the machine and its components for damage. If there is visible
damage, do not operate the machine. Contact your Wacker Neuson
dealer immediately for assistance.
3. Take inventory of all items included with the machine and verify that all
loose components and fasteners are accounted for.
4. Attach component parts not already attached.
5. Add fluids as needed and applicable, including fuel, engine oil, and bat-
tery acid.
6. Move the machine to its operating location.
6.2 Standard Racked Assembly

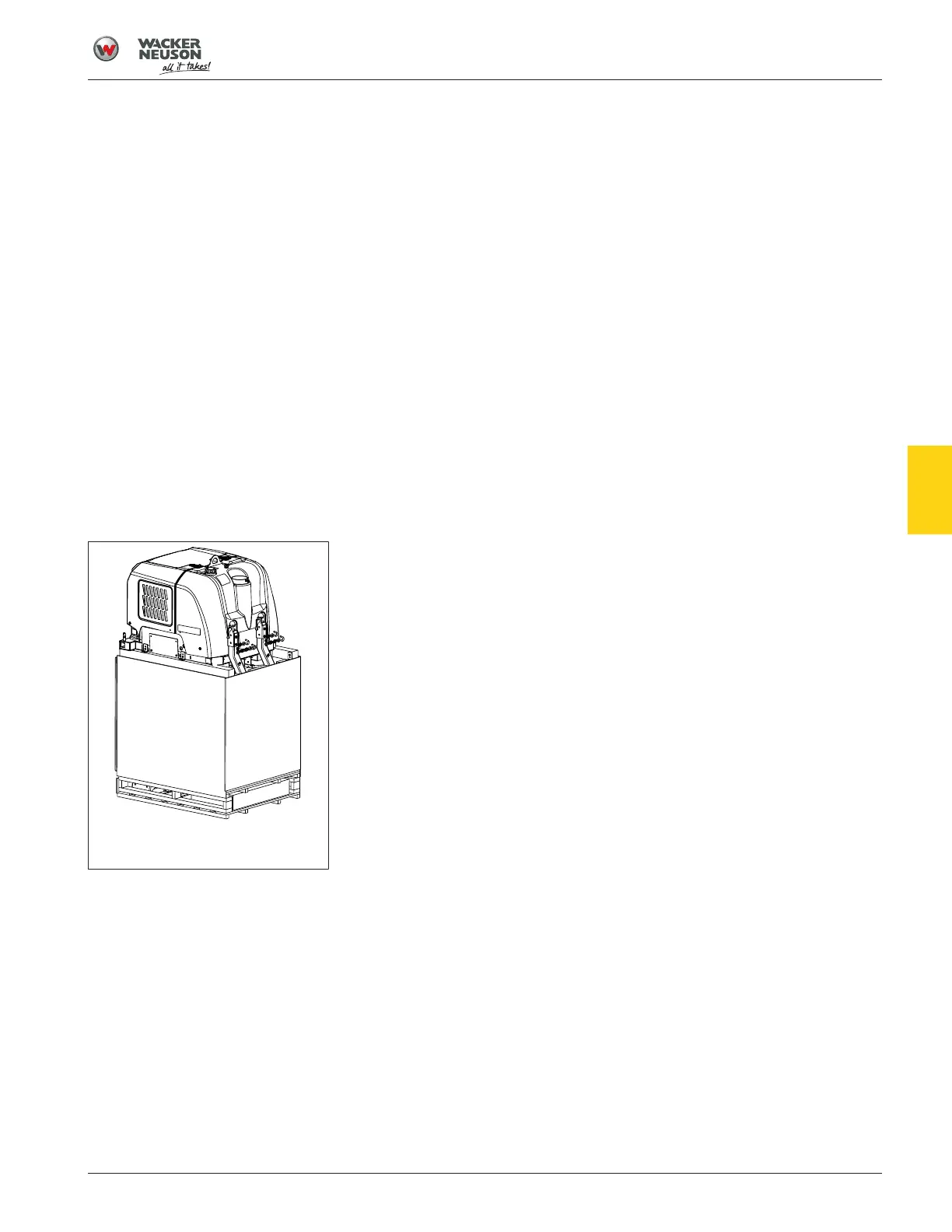

Fig.8: LTV in container rack
Overview
This set of assembly instructions applies to LTV machines shipped in a con-
tainer rack as shown.
Tasks
To complete the assembly of your light tower, the following tasks must be
performed in the order listed:
Chassis assembly
1. Install the axle.
2. Install the fenders.
3. Install the wheels.
4. Install the outriggers and swivel jacks.
5. Install the tongue assembly.
Tower assembly
1. Install the mast.
2. Install the manual winch.
3. Install the power winch.
Light fixtures
1. Install the light support bracket and light bar.
2. Install the metal halide light fixtures.
3. Install the LED light fixtures.
Electrical assembly
6
