Commissioning
Installing the Manual Winch 6.9
43
[en-US] | 02/2023 | 5100065071 | LTV 4L/6L | Operator’s Manual
7. Adjust the alignment of the tower lock pin, if necessary.
6.9 Installing the Manual Winch
Materials needed
• Manual winch
• Hardware bag 6
Installing the manual winch
1. Align the manual winch handle (1) to the side of the manual winch
drum (2) and secure the winch handle with a nut (3).
wc_gr014398
1
2
3
4
5
6

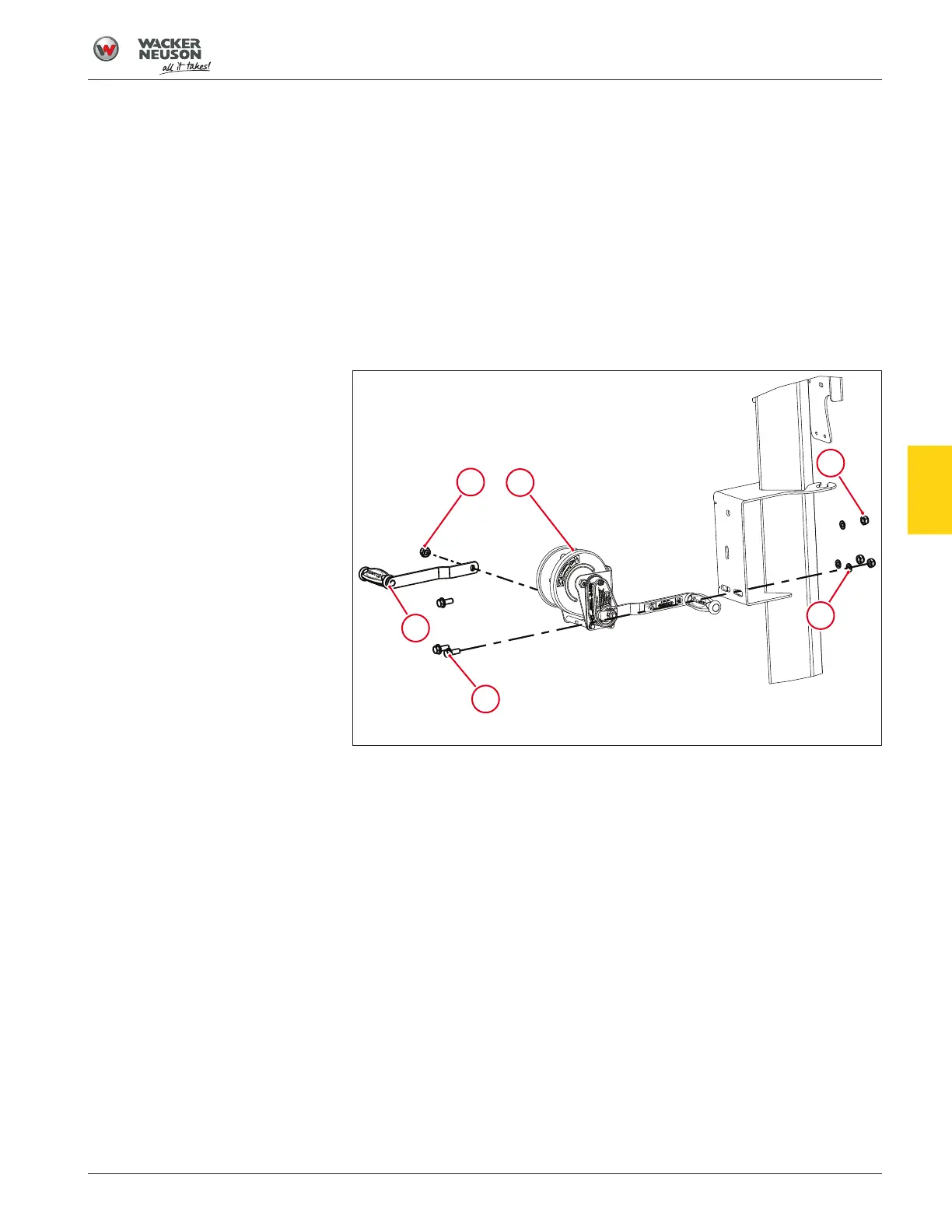

Fig.17: Winch and hardware
2. Fasten the manual winch to the mast with the following hardware from
bag 6 as shown in the illustration:
ð Three M10x25 screw (4)
ð Three M10 lock washers (5)
ð Three M10 lock nuts (6)
3. Tighten the M10x25 screw to a torque of 58Nm(42.8ft.lbs.).
Reversing the manual winch handles
The manual winch handles (1) are installed backward to protect them from
shipping damage. Reverse each manual winch handle orientation as follows:
1. Remove the nut (3) and remove the manual winch handle from the
manual winch.
2. Turn the manual winch handle so the handgrip is oriented as shown in
the illustration.
3. Install the manual winch handle and the nut.
6
