Installing the light fixtures
1. Position each light fixture (1) so the lamp is facing downward.
LEDMetal Halide
wc_gr014400
1
2
3 4
5
1
2
3
4
5

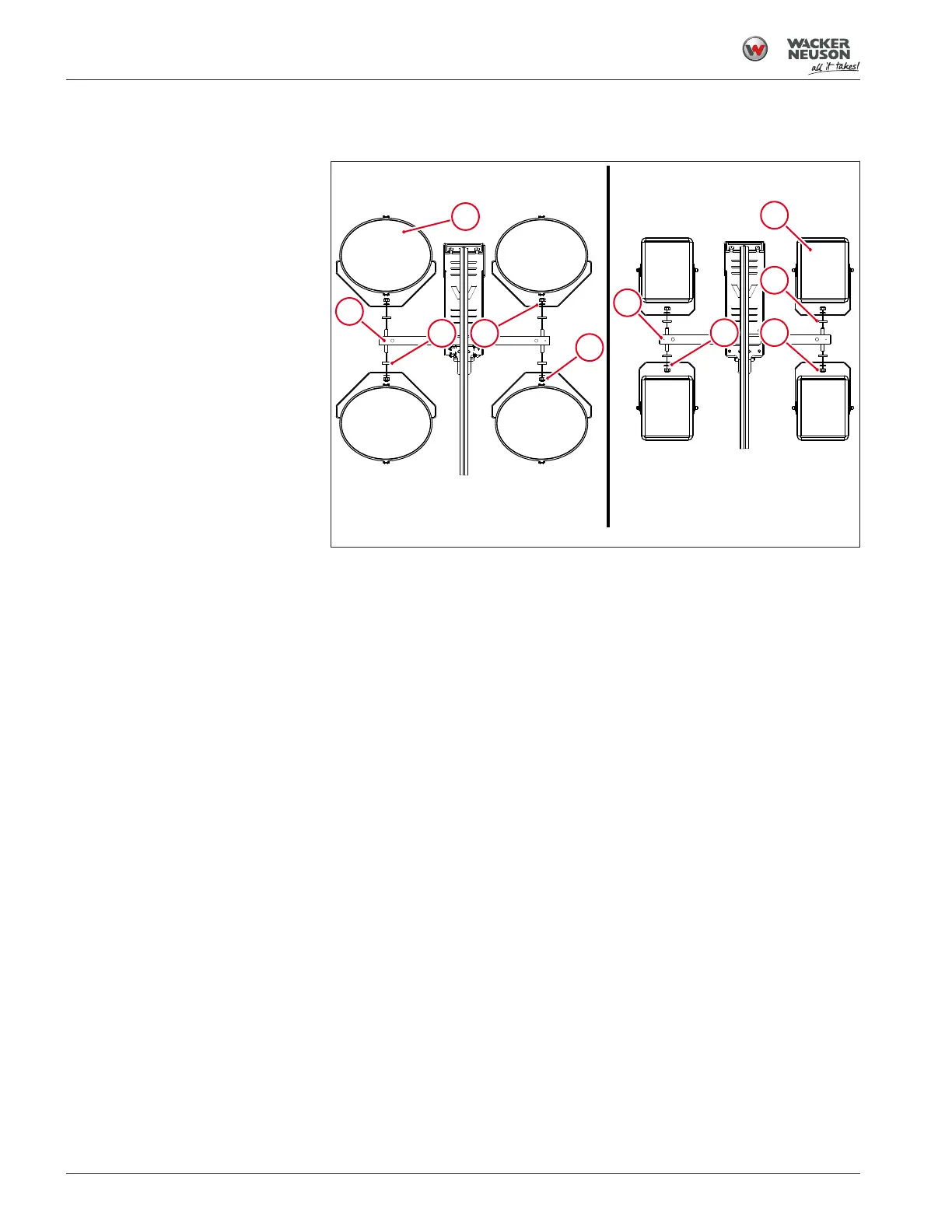

Fig.23: Installing metal halide (left) and LED (right) lights
2. Install each light fixture on the light bar (2) using a disk (3), a B19 flat
washer (4), and an M18 lock nut (5).
6.13 Connecting the Wiring at the Junction Box
Special tools and materials needed
• Coiled cord
• Panduit crimper CT-100
• Panduit crimper CT-1500
• Hardware bag 5
Connecting the wiring at the junction box
Note: This procedure is the same for metal halide and LED light fixtures.
Connecting the coiled cord
1. Remove the screws and the cover plate from the junction box(1).
