Commissioning
Connecting the Wiring at the Junction Box 6.13
49
[en-US] | 02/2023 | 5100065071 | LTV 4L/6L | Operator’s Manual
wc_gr014402
1
2
3
4
5
6
7

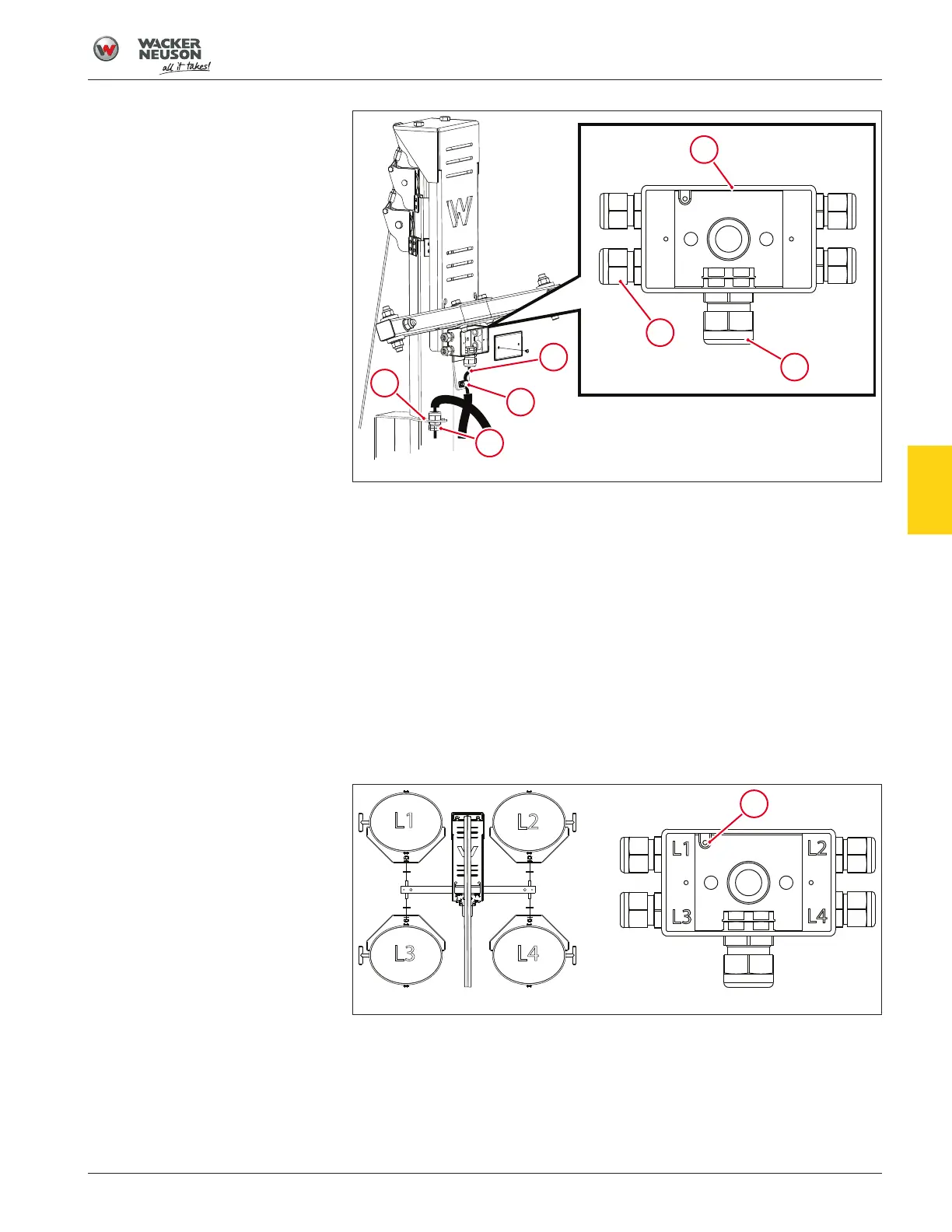

Fig.24: Junction box and connectors
2. Use two wrenches to loosen the large connector(2) at the bottom of
the junction box.
3. Insert the end of the coiled cord(3) through the P-clamp(4) and
through the large connector so that approximately 1cm(3/8in.) of the
coiled cord jacket extends into the junction box.
4. Tighten the large connector.
5. Slide the cord grip connector(5) into the winch bracket slot(6) and
tighten the cord grip connector using two wrenches.
Installing the light fixture cords
1. Use two wrenches to loosen the four connectors(7) on the sides of the
junction box.
wc_gr014403
L1
L2
L3 L4
L1
L2
L3
L4
8
Fig.25: Junction box connectors
2. Insert the light fixture cords through the appropriate four connectors
(L1, L2, L3, L4). Approximately 1cm(3/8in.) of each light fixture cord
jacket should extend into the junction box.
3. Tighten the four connectors.
6
