Commissioning
6.7 Installing the Tongue Assembly
40
Operator’s Manual | LTV 4L/6L | 5100065071 | 02/2023 | [en-US]
6.7 Installing the Tongue Assembly
Materials needed
• Tongue assembly
• Swivel jack
• Hardware bag 4
Installing the tongue assembly
1. Fasten the tongue assembly (1) to the light tower using the following
hardware from bag4 as shown in the illustration below.
ð Three M12x30 screws (2) on each side of the tongue assembly
ð Three B13 flat washers (3) on each side of the tongue assembly
ð Three M12 serrated flange nuts (4) on each side of the tongue as-
sembly
wc_gr014386
1
2
2
3
3
4

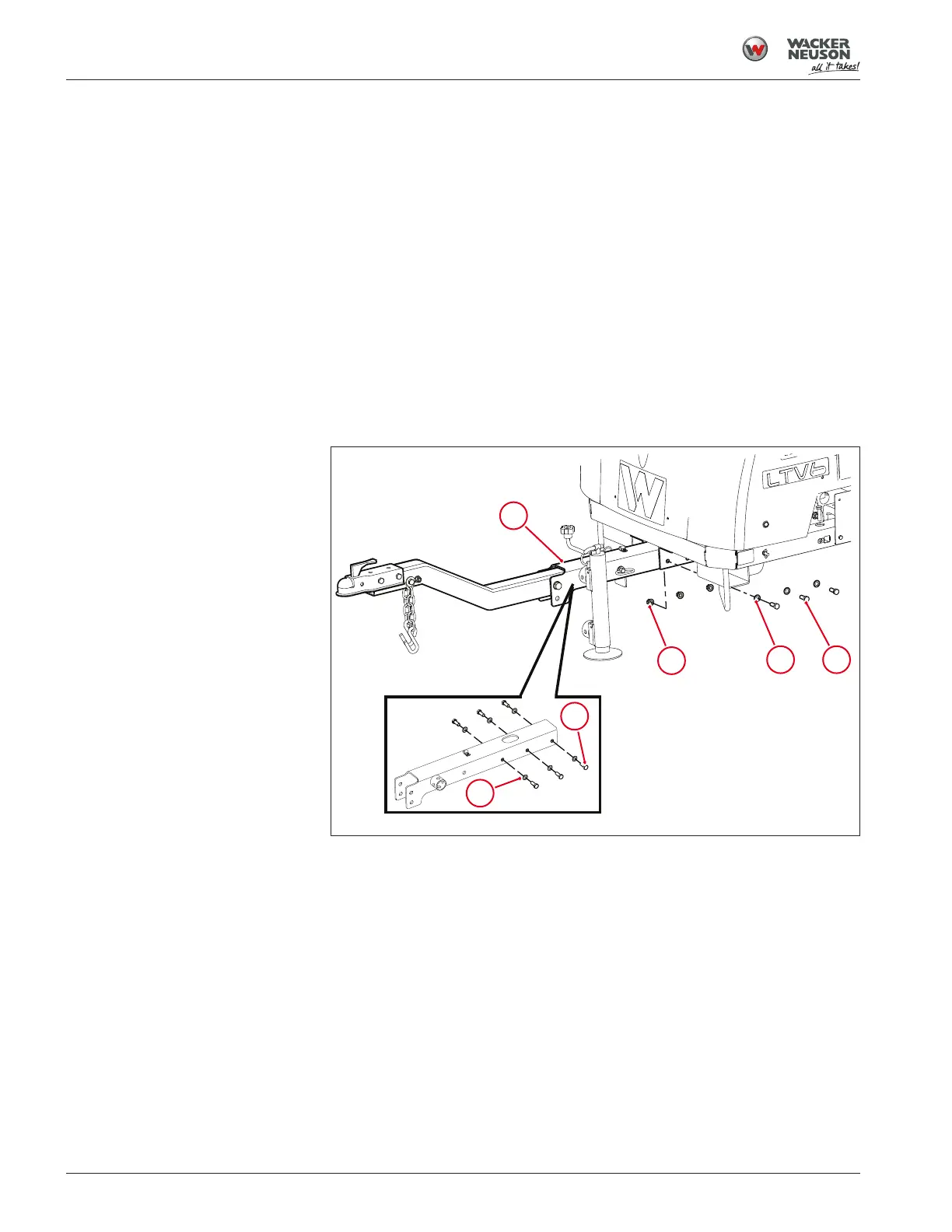

Fig.13: Tongue assembly hardware
2. Tighten the screws to a torque of 106Nm(78ft.lbs.).
Installing the swivel jack
1. Locate the swivel jack (5).
